Toyota LEXUS RX330/350(JPP) — FRONT SEAT & SEAT TRACK

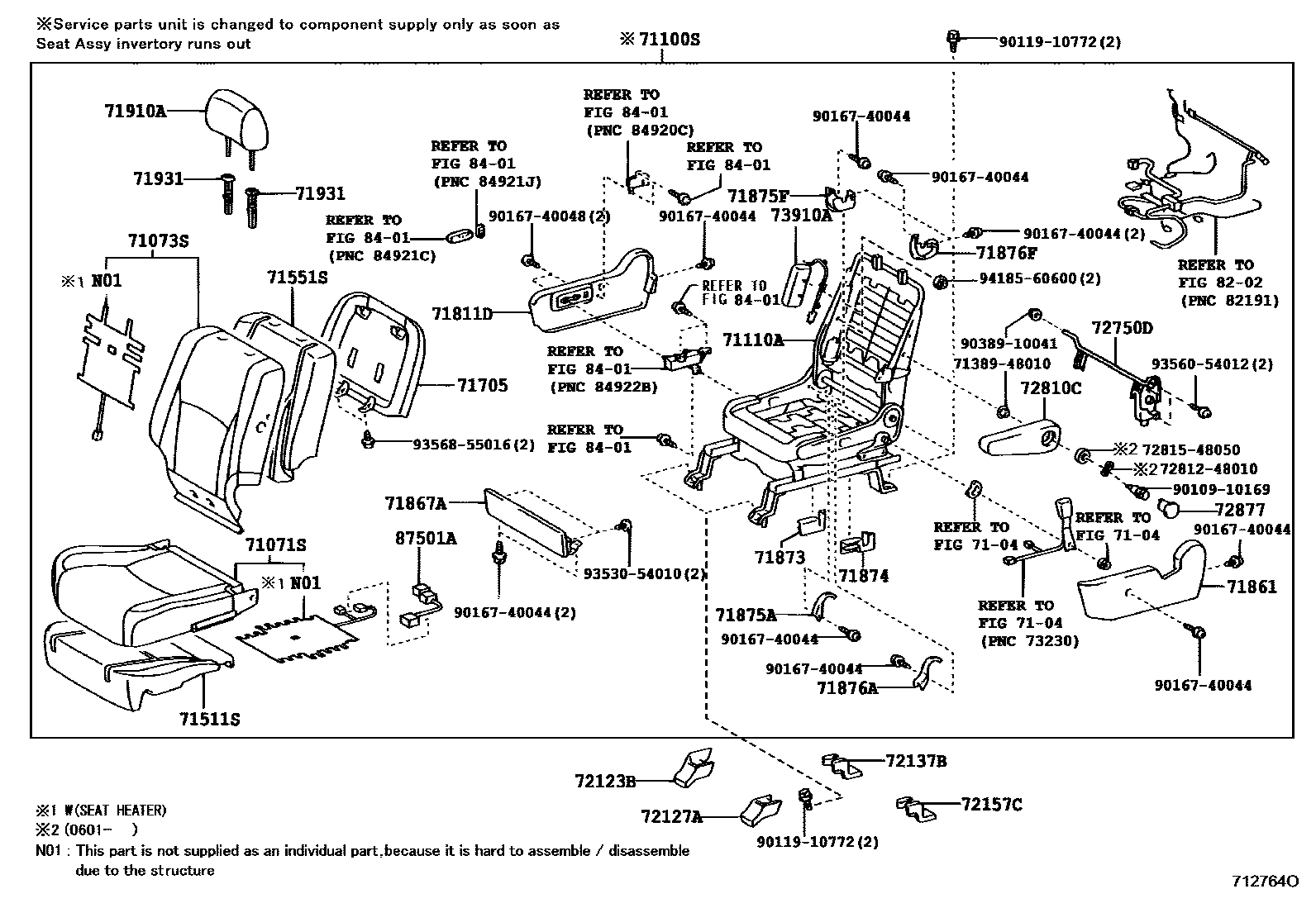

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-48240-A0i200302-200812
IVORY,TRIM0#
sub71071-48242
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-48360-A0i200302-200812
IVORY,TRIM0#
sub71073-48361
sub71073-48362
71100SSEAT ASSY, FRONT RH
main71100-48640-A2i200302-200408
IVORY,TRIM0#
sub71100-48641
main71100-48C81-A0i200408-200503
IVORY,TRIM0#
sub71100-48C83
main71100-48C82-A0i200503-200508
IVORY,TRIM0#
sub71100-4D490
main71100-48D90-A0i200508-200603
IVORY,TRIM0#
sub71100-48D90
sub71100-48D91
main71100-48D90-A2i200603-200812
IVORY,TRIM0#
sub71100-48D90
sub71100-48D91
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-48040i200302-200408
sub71110-48350
sub89952-48030
main71110-48110i200408-200503
sub71110-48111
sub89952-48030
main71110-48111i200503-200508
main71110-48120i200508-200812
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-48060i200302-200812
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-48060i200302-200812
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-48060-A3i200302-200408
IVORY,TRIM00
sub71705-48060
main71705-48060-B5i200302-200408
LT.GRAY,TRIM1#
sub71705-48060
main71705-48060-C5i200302-200408
BLACK,TRIM2#
sub71705-48060
main71705-48100-A1i200408-200601
IVORY,TRIM00
sub71705-48100
main71705-48100-A1i200601-200603
IVORY,TRIM0#
sub71705-48100
main71705-48100-A2i200603-200812
IVORY,TRIM0#
sub71705-48100
main71705-48100-B1i200408-200603
LT.GRAY,TRIM1#
sub71705-48100
main71705-48100-C0i200408-200603
BLACK,TRIM2#
sub71705-48100
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-48100-A0i200508-200812
IVORY,TRIM0#
sub71811-48100
main71811-48100-B0i200508-200812
LT.GRAY,TRIM1#
sub71811-48100
main71811-48100-C0i200508-200812
BLACK,TRIM2#
sub71811-48100
main71811-48110-A0i200302-200508
IVORY,TRIM0#
sub71811-48110
main71811-48110-B0i200302-200508
LT.GRAY,TRIM1#
sub71811-48110
main71811-48110-C0i200302-200508
BLACK,TRIM2#
sub71811-48110
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-48040-A0i200302-200812
IVORY,TRIM0#
sub71861-48040
main71861-48040-B0i200302-200812
LT.GRAY,TRIM1#
sub71861-48040
main71861-48040-C0i200302-200812
BLACK,TRIM2#
sub71861-48040
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-48030-A0i200302-200812
IVORY,TRIM0#
sub71867-48030
main71867-48030-B0i200302-200812
LT.GRAY,TRIM1#
sub71867-48030
main71867-48030-C0i200302-200812
BLACK,TRIM2#
sub71867-48030
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-33030i200408-200812
main71873-48060i200302-200408
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-33070i200408-200812
main71874-48060i200302-200408
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-48050-A0i200302-200408
IVORY,TRIM0#,LH SEAT
sub71875-48050
main71875-48050-B0i200302-200408
LT.GRAY,TRIM1#,LH SEAT
sub71875-48050
main71875-48050-C0i200302-200408
BLACK,TRIM2#,LH SEAT
sub71875-48050
main71875-58030-A0i200302-200812
IVORY,TRIM0#,RH SEAT
sub71875-58030
main71875-58030-B3i200302-200812
LT.GRAY,TRIM1#,RH SEAT
sub71875-58030
main71875-58030-C0i200302-200812
BLACK,TRIM2#,RH SEAT
sub71875-58030
main71876-48040-A0i200408-200812
IVORY,TRIM0#,LH SEAT
sub71876-48040
main71876-48040-B0i200408-200812
LT.GRAY,TRIM1#,LH SEAT
sub71876-48040
main71876-48040-C0i200408-200812
BLACK,TRIM2#,LH SEAT
sub71876-48040
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-58050i200302-200812
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-48050-A0i200408-200812
IVORY,TRIM0#,RH SEAT
sub71875-48050
main71875-48050-B0i200408-200812
LT.GRAY,TRIM1#,RH SEAT
sub71875-48050
main71875-48050-C0i200408-200812
BLACK,TRIM2#,RH SEAT
sub71875-48050
main71876-48040-A0i200302-200408
IVORY,TRIM0#,RH SEAT
sub71876-48040
main71876-48040-B0i200302-200408
LT.GRAY,TRIM1#,RH SEAT
sub71876-48040
main71876-48040-C0i200302-200408
BLACK,TRIM2#,RH SEAT
sub71876-48040
main71876-60150-A0i200302-200812
IVORY,TRIM0#,LH SEAT
sub71876-60150
main71876-60150-B3i200302-200812
LT.GRAY,TRIM1#,LH SEAT
sub71876-60150
main71876-60150-C0i200302-200812
BLACK,TRIM2#,LH SEAT
sub71876-60150
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-58050i200302-200812
71910AHEADREST ASSY, FRONT SEAT
main71910-48230-A0i200302-200812
IVORY,TRIM0#
sub71910-48231
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A0i200302-200801
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B2i200302-200801
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-C0i200302-200801
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-A0i200801-200812
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-52030
main71930-52030-B5i200801-200812
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
sub71930-52030
main71930-52030-C0i200801-200812
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-52030
main71931-42020-A0i200302-200812
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
sub71931-42020
main71931-42020-B2i200302-200812
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
sub71931-42020
main71931-42020-C0i200302-200812
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
sub71931-42020
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
main72123-48050-A0i200302-200408
IVORY,TRIM0#
main72123-48050-B0i200302-200408
LT.GRAY,TRIM1#
main72123-48050-C0i200302-200408
BLACK,TRIM2#
main72123-48070-A0i200408-200812
IVORY,TRIM0#
sub72123-48070
main72123-48070-B0i200408-200812
LT.GRAY,TRIM1#
sub72123-48070
main72123-48070-C0i200408-200812
BLACK,TRIM2#
sub72123-48070
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-48040-A0i200302-200812
IVORY,TRIM0#
main72123-48040-B0i200302-200812
LT.GRAY,TRIM1#
main72123-48040-C0i200302-200812
BLACK,TRIM2#
72137BCOVER, SEAT TRACK, RH
main72128-48030-A0i200302-200408
IVORY,TRIM0#
main72128-48030-B0i200302-200408
LT.GRAY,TRIM1#
main72128-48030-C0i200302-200408
BLACK,TRIM2#
72157CCOVER, SEAT TRACK BRACKET, INNER RH
main72138-48020-A0i200302-200812
IVORY,TRIM0#
main72138-48020-B0i200302-200812
LT.GRAY,TRIM1#
main72138-48020-C0i200302-200812
BLACK,TRIM2#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-48010i200508-200812
72810CARMREST ASSY, FRONT SEAT, CENTER
main72810-48140-A0i200302-200812
IVORY,TRIM0#
sub72810-48142
72877COVER, SEAT ARMREST, RH
main72848-48020-A0i200302-200812
IVORY,TRIM0#
main72848-48020-B2i200302-200601
LT.GRAY,TRIM1#
main72848-48020-C0i200302-200601
BLACK,TRIM2#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-0E010i200302-200408
sub73910-0E011
main73910-0E011i200408-200605
sub73910-0E012
main73910-0E012i200606-200612
sub73910-0E013
main73910-0E013i200701-200812
8202
8401
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
7138948010SPACER, CENTER SEAT HINGE
main71389-48010
7281248010CLUTCH, PROTECTOR SUB
main72812-48010
7281548050HOLDER, CLUTCH PROTECTOR SUB
main72815-48050
9010910169
main90109-10169
9011910772
main90119-10772
9016740044
main90167-40044
9016740048
main90167-40048
9038910041
main90389-10041
9353054010
main93530-54010
9356054012
main93560-54012
9356855016
main93568-55016
9418560600
main94185-60600

42 parts on this diagram · 3 diagrams in section
