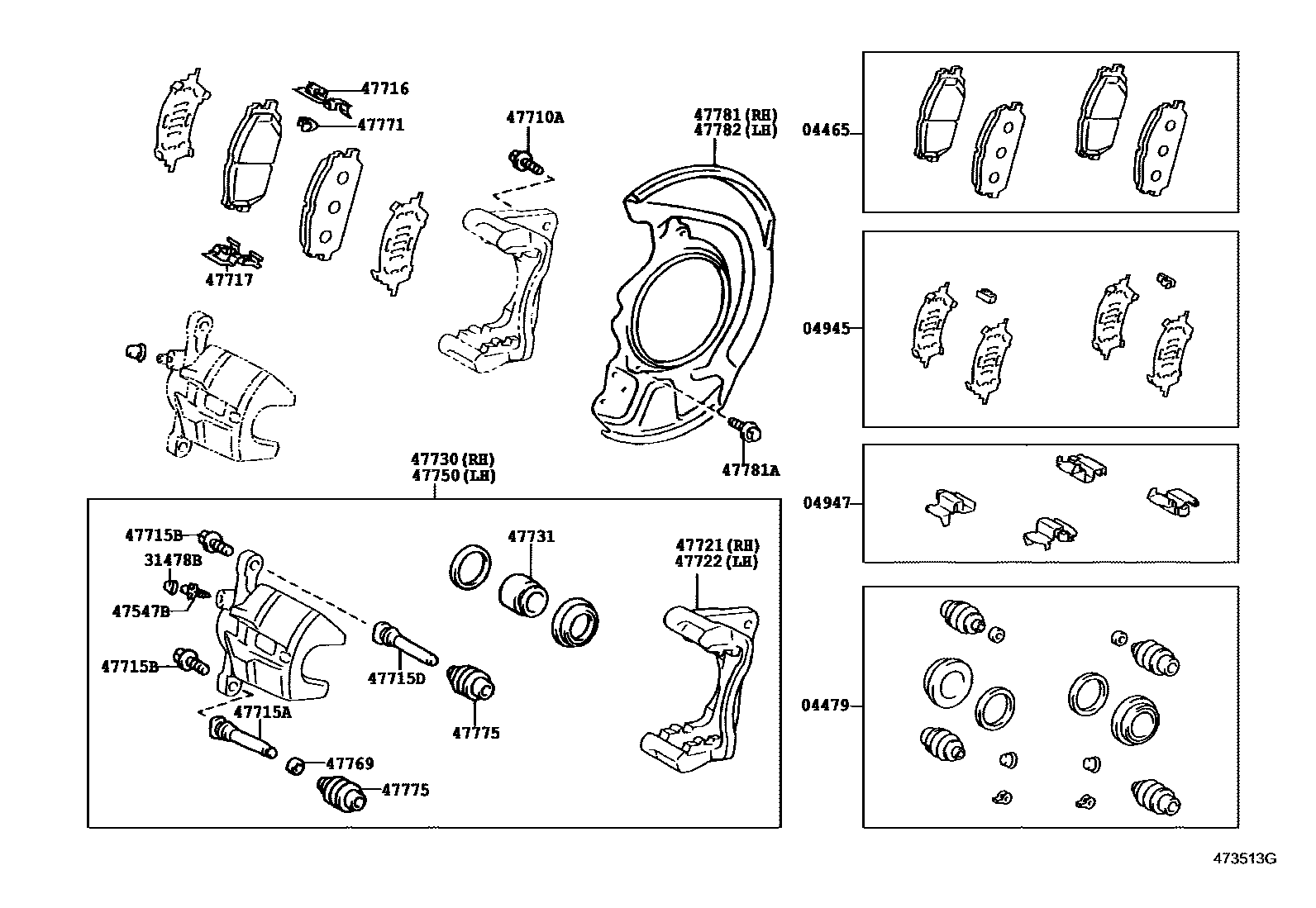

Toyota LEXUS RX330/350(JPP) — FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK SUMITOMO PS558H
04479CYLINDER KIT, DISC BRAKE, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47731PISTON, FRONT DISC BRAKE
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
23 parts on this diagram · 1 diagram in section
