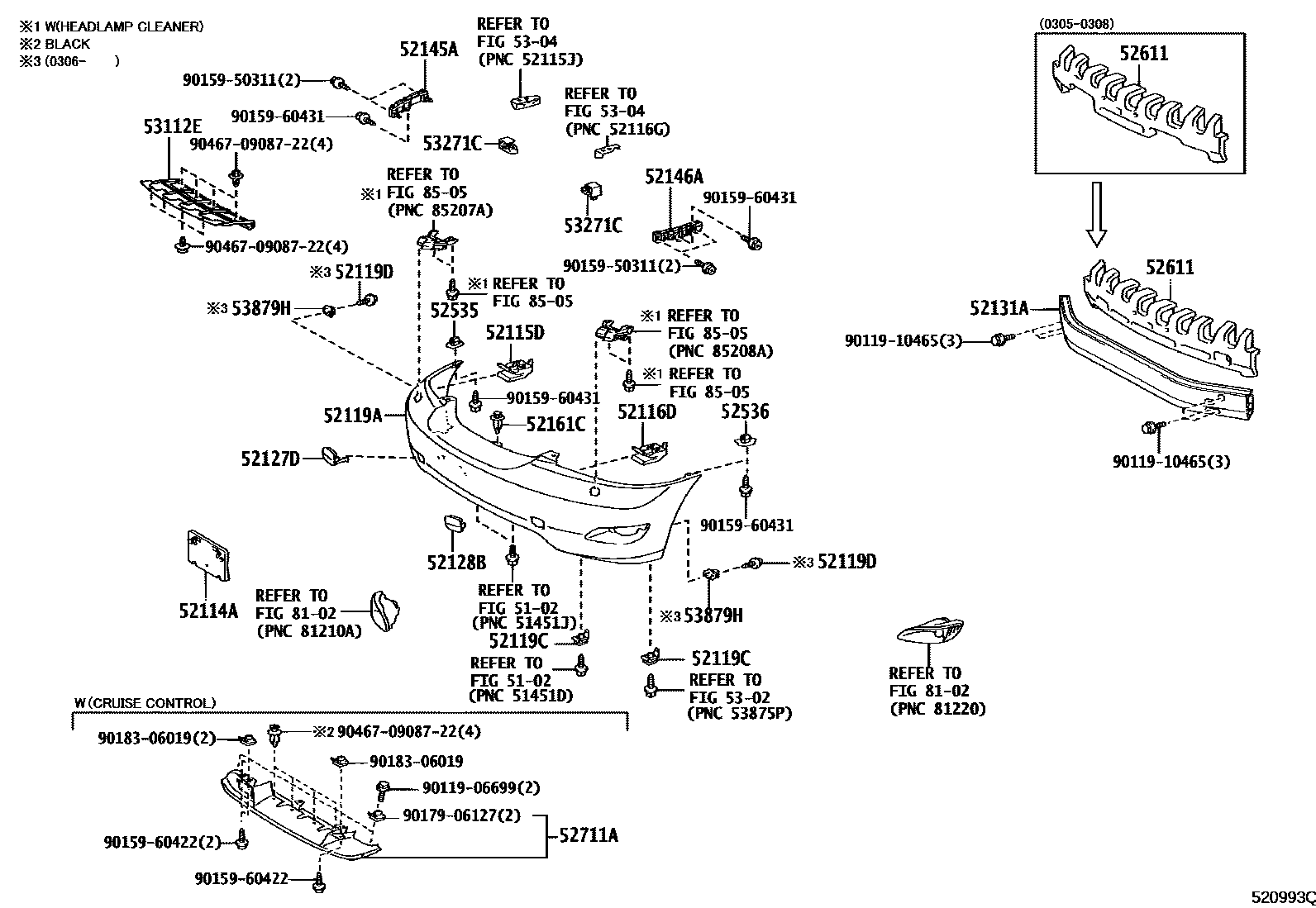

Toyota LEXUS RX330/350(JPP) — FRONT BUMPER & BUMPER STAY
5102
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52119ACOVER, FRONT BUMPER
KOREA SPEC&PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub52119-48934
KOREA SPEC&PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)
52119CCLIP, FRONT BUMPER COVER
52119DSCREW, NO.1
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
CANADA SPEC
KOREA SPEC
TAIWAN SPEC
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52711AGARNISH, FRONT BUMPER
5302
5304
53112EGRILLE, RADIATOR, LOWER NO.1
53271CBRACKET, HEADLAMP MOUNTING
53879HRETAINER, FRONT FENDER LINER
8102
8505
9011906699
main90119-06699
9011910465
main90119-10465
9015950311
main90159-50311
9015960422
main90159-60422
9015960431
main90159-60431
9017906127
main90179-06127
9018306019
main90183-06019
904670908722
main90467-0908722
32 parts on this diagram · 1 diagram in section
