Toyota LEXUS RX330/350(JPP) — FOG LAMP

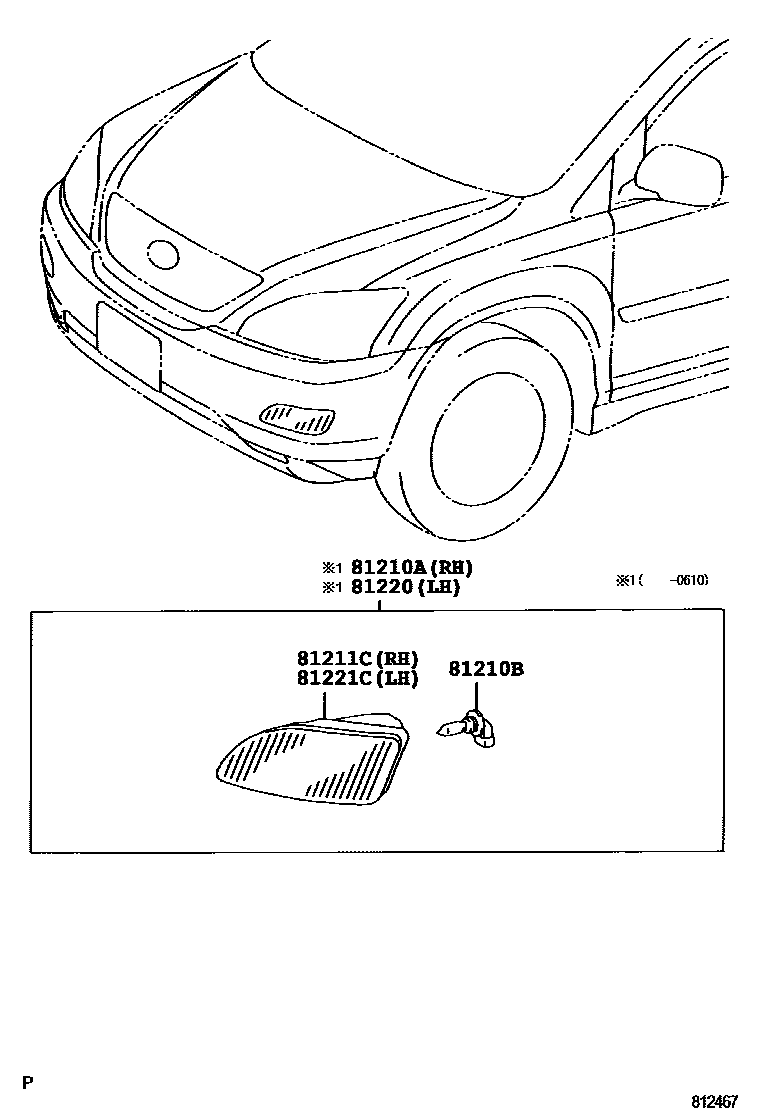

Parts diagram
81210ALAMP ASSY, FOG, RH
main81210-48020i200302-200610
sub81210-48021
81210BBULB, FOG LAMP
main90981-13047i200302-200812
12V 51W,HALOGEN
81211CLAMP UNIT, FOG LAMP, RH
main81211-48020i200302-200610
sub81211-48021
main81211-48021i200611-200812
81220LAMP ASSY, FOG, LH
main81220-48020i200302-200610
sub81220-48021
81221CLAMP UNIT, FOG LAMP, LH
main81221-48020i200302-200610
sub81221-48021
main81221-48021i200611-200812

5 parts on this diagram · 1 diagram in section
