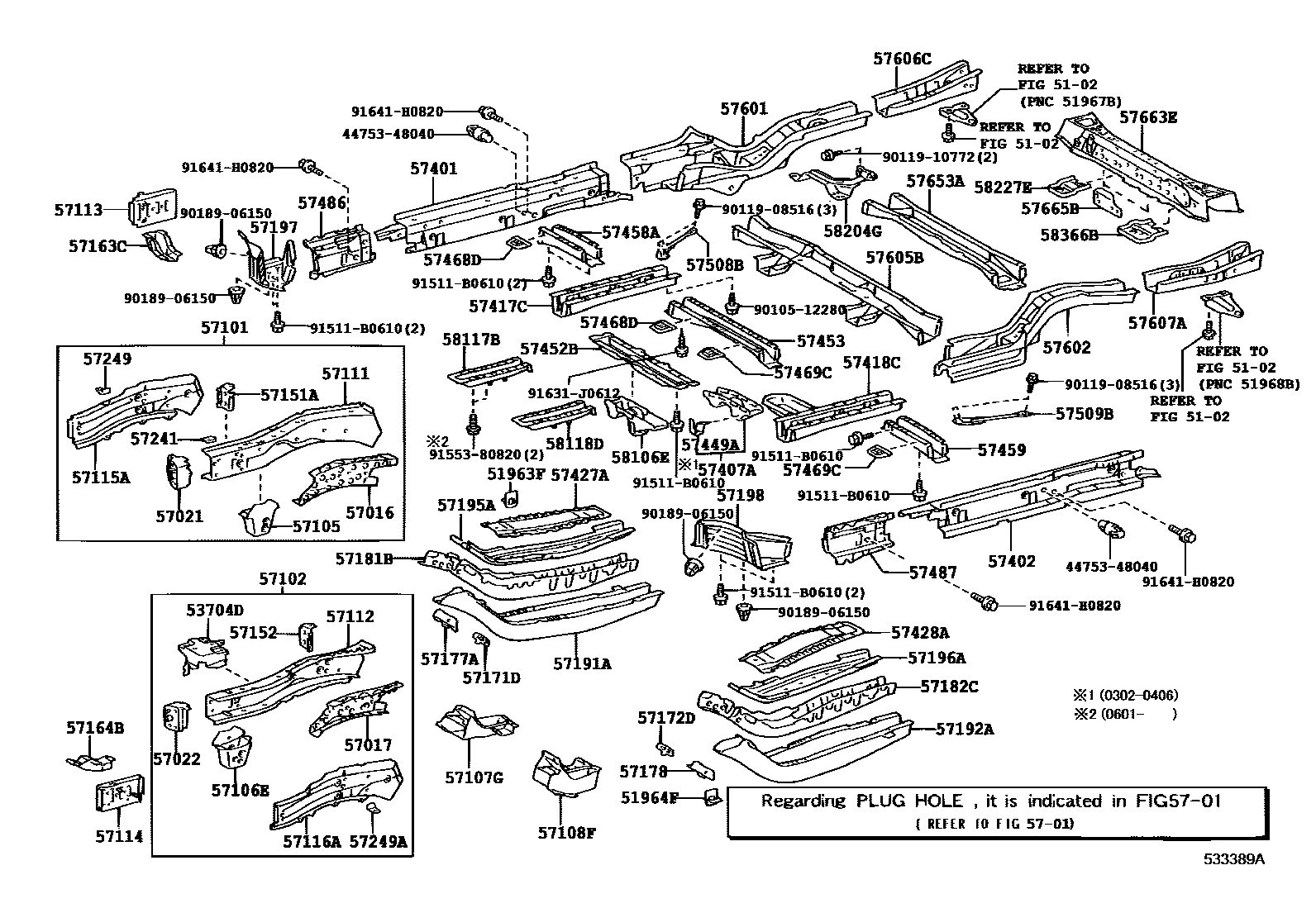

Toyota LEXUS RX330/350(JPP) — FLOOR SIDE MEMBER
5102
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
sub57021-48013
57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
sub57022-48013
57101MEMBER SUB-ASSY, FRONT SIDE, RH
sub57027-48905
57102MEMBER SUB-ASSY, FRONT SIDE, LH
sub57028-48906
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH
57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH
57177APLATE, FRONT SIDE MEMBER, NO.7 RH
57178PLATE, FRONT SIDE MEMBER, NO.7 LH
57181BPLATE, FRONT SIDE MEMBER, NO.3 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417CREINFORCEMENT, FRONT FLOOR UNDER
57418CREINFORCEMENT, FRONT FLOOR UNDER, LH
57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH
57449ABRACKET, DIFF LOCK LEVER MOUNT, NO.2
57458APLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH
57459MEMBER, FRONT FLOOR CROSS, NO.2
57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57653AMEMBER, REAR FLOOR CROSS, NO.2
57663EMEMBER, REAR FLOOR CROSS, CENTER
57665BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
58106ECOVER SUB-ASSY, RESERVE TANK SERVICE HOLE
58117BREINFORCEMENT, FRONT FLOOR SIDE, RH
58118DREINFORCEMENT, FRONT FLOOR SIDE, LH
58204GBRACKET SUB-ASSY, FRONT SEAT
58227EPLATE, FRONT FLOOR PANEL SIDE, RH
58366BBRACKET, FUEL TANK SUPPORT, LH
4475348040CLAMP, VACUUM RESERVOIR, NO.2
main44753-48040
9010512280
main90105-12280
9011908516
main90119-08516
9011910772
main90119-10772
9018906150
main90189-06150
91511B0610
main91511-B0610
9155380820
main91553-80820
91631J0612
main91631-J0612
91641H0820
main91641-H0820
81 parts on this diagram · 2 diagrams in section
