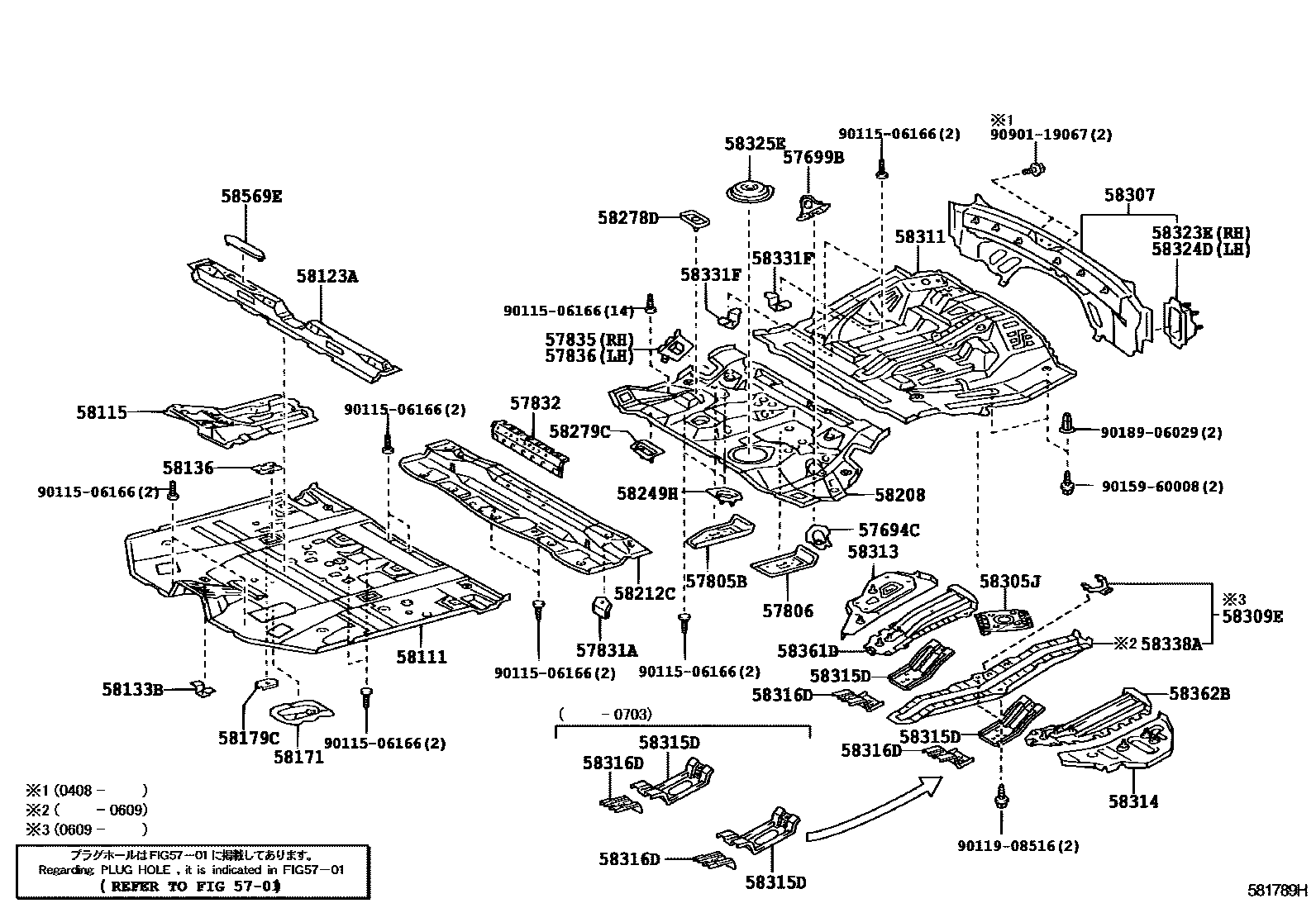

Toyota LEXUS RX330/350(JPP) — FLOOR PAN & LOWER BACK PANEL
5701
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58123ASUPPORT, SHIFT & SELECT LEVER
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58208PAN, CENTER FLOOR
sub58211-48908
58212CPAN, CENTER FLOOR, FRONT
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58278DPROTECTOR, FUEL TANK, UPPER
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305JBRACKET, SPARE WHEEL CARRIER
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
sub58309-48010
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58569ECOVER, FRONT FLOOR CAUTION PLATE
9011506166
main90115-06166
9011908516
main90119-08516
9015960008
main90159-60008
9018906029
main90189-06029
9090119067
main90901-19067
42 parts on this diagram · 1 diagram in section
