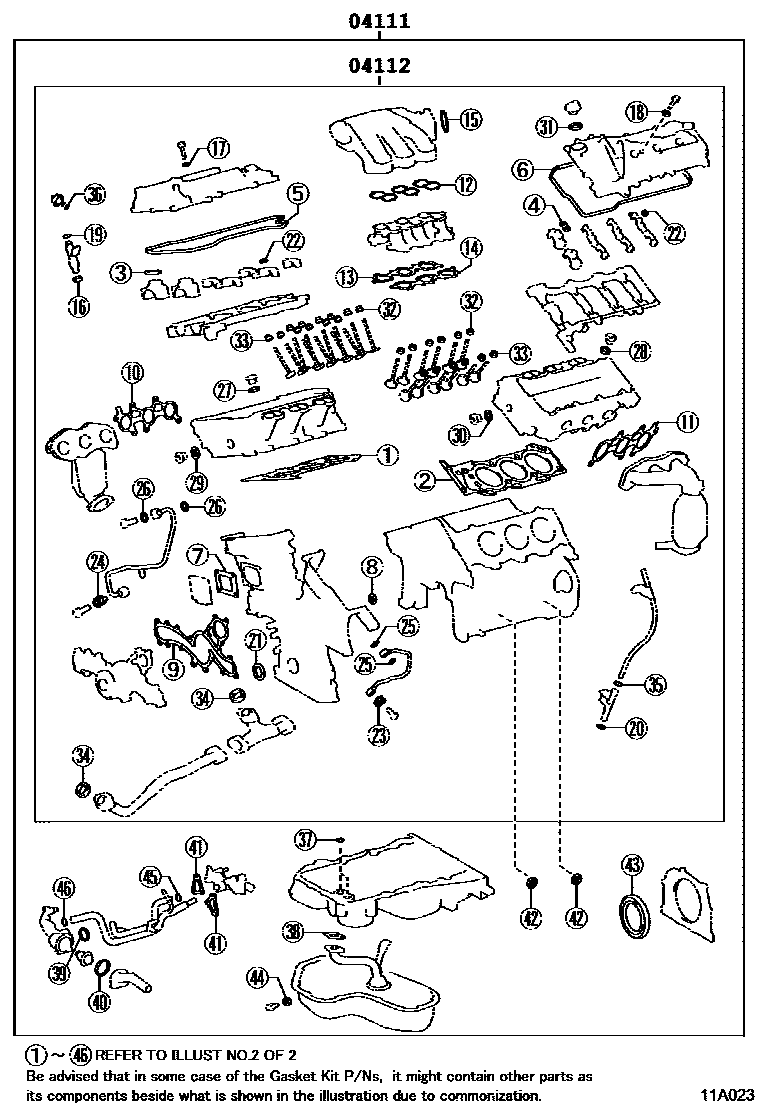

Toyota LEXUS RX330/350(JPP) — ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1W(OIL COOLER) 0004 1W(OIL COOLER) 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-20220i3MZFE..MCU3#..JPP200302-200312

sub04111-20630

main04111-20360i3MZFE..MCU3#..JPP200312-200403

sub04111-20361

main04111-20361i3MZFE..MCU3#..JPP200403-200601

sub04111-20630

main04111-31440i2GRFE..GSU3#..JPP200601-200805

sub04111-31441

main04111-31441i2GRFE..GSU3#..JPP200805-200811

sub04111-31442

main04111-31442i2GRFE..GSU3#..JPP200811-200812

sub04111-31443

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20200i3MZFE..MCU3#..JPP200302-200312

sub04112-20540

main04112-20340i3MZFE..MCU3#..JPP200312-200403

sub04112-20341

main04112-20341i3MZFE..MCU3#..JPP200403-200601

sub04112-20540

main04112-31270i2GRFE..GSU3#..JPP200601-200805

sub04112-31271

main04112-31271i2GRFE..GSU3#..JPP200805-200811

sub04112-31272

main04112-31272i2GRFE..GSU3#..JPP200811-200812

sub04112-31273

sub04112-31760

2 parts on this diagram · 6 diagrams in section
