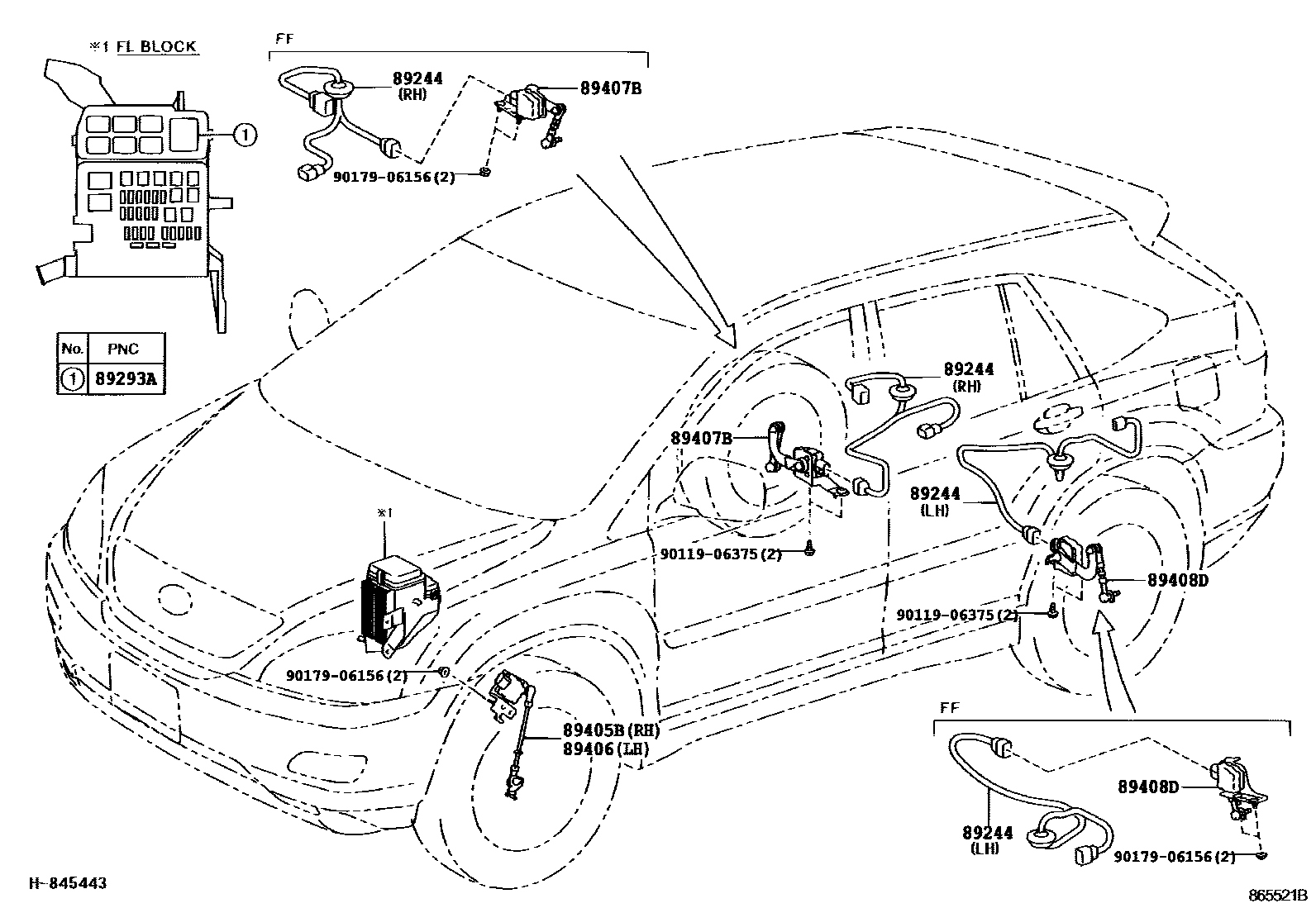

Toyota LEXUS RX330/350(JPP) — ELECTRONIC MODULATED SUSPENSION

0001 1RELAY & SENSOR & CONTROL WIRI0002 1SWITCH & ECU

89244WIRE, ABSORBER CONTROL, REAR

main89244-48010

main89244-48020

main89244-48030

main89244-48040

89293COMPUTER, SUSPENSION CONTROL

main89293-48021

main89293-48022

main89293-48023

main89293-48024

main90987-02025

89293ARELAY, SUSPENSION CONTROL

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-48020

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

9011906375

main90119-06375

9017906156

main90179-06156

9 parts on this diagram · 2 diagrams in section
