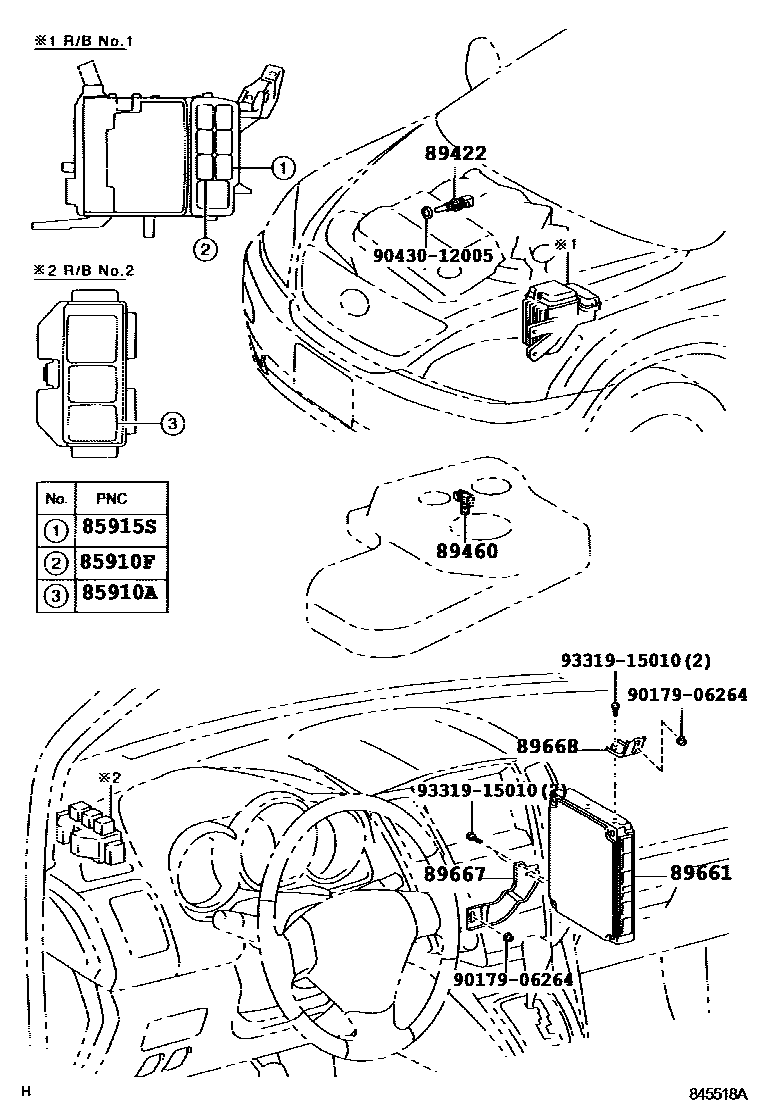

Toyota LEXUS RX330/350(JPP) — ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
89661COMPUTER, ENGINE CONTROL
sub89661-48481
sub89661-48482
sub89661-48501
sub89661-48502
sub89661-48601
sub89661-48831
sub89661-48851
sub89661-48F01
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9017906264
main90179-06264
9043012005
main90430-12005
9331915010
main93319-15010
11 parts on this diagram · 2 diagrams in section
