Toyota LEXUS RX330/350(JPP) — DISC WHEEL & WHEEL CAP

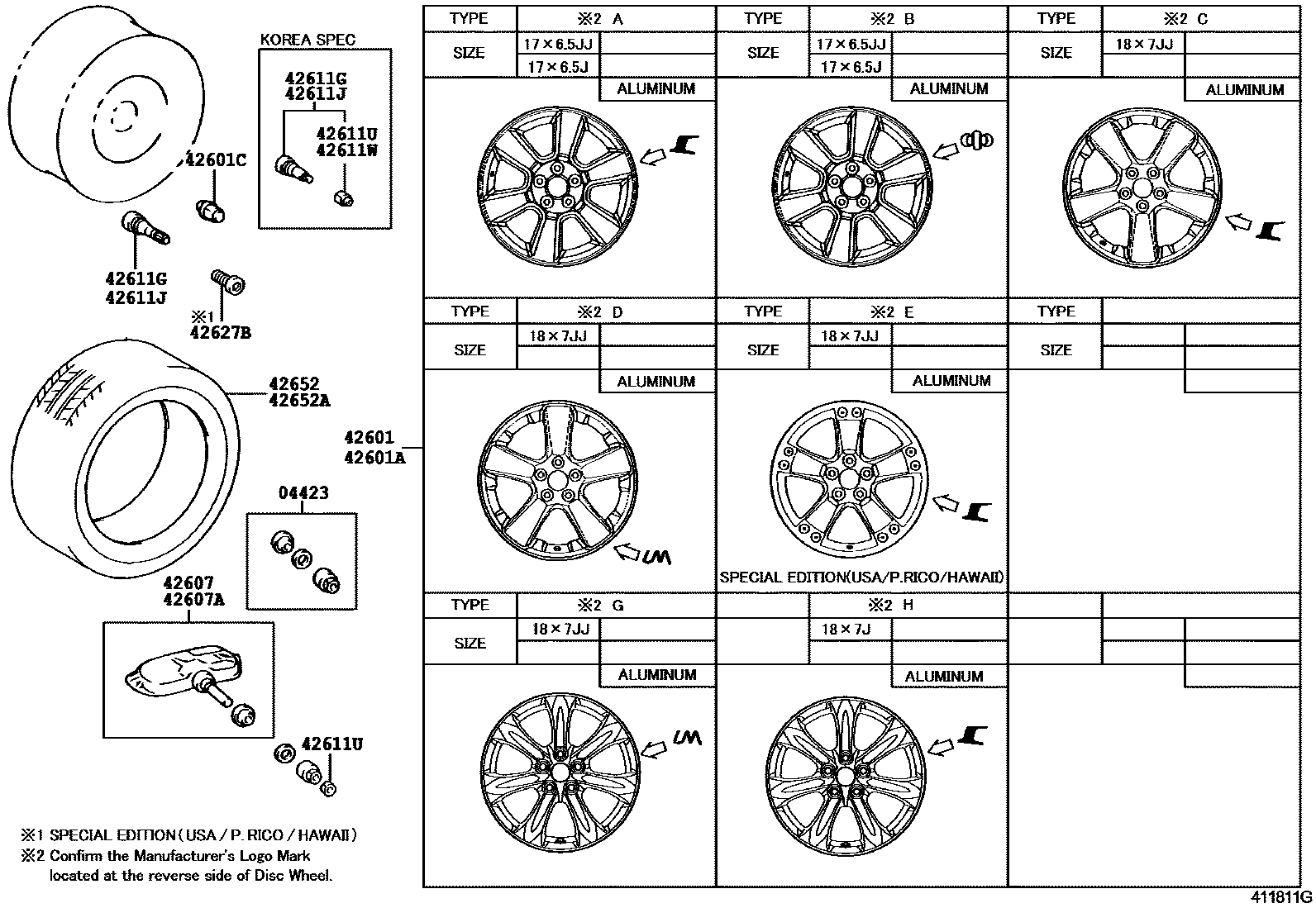

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200601-200812
sub04423-33060
42601WHEEL, DISC
main42611-48180i200302-200408
17X6.5JJ, #,TYPE A:REFER ILLUST.
main42611-48190i200302-200408
17X6.5JJ,TYPE B:REFER ILLUST.
sub42611-48340
main42611-48200i200302-200403
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE C:REFER ILLUST.
sub42611-48201
main42611-48201i200404-200601
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE C:REFER ILLUST.
sub42611-48410
main42611-48202i200601-200812
18X7JJ,TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE C:REFER ILLUST.
sub42611-48780
main42611-48210i200302-200403
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE D:REFER ILLUST.
sub42611-48211
main42611-48211i200404-200601
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE D:REFER ILLUST.
sub42611-48212
main42611-48212i200601-200812
18X7JJ, #,TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48780
main42611-48220i200302-200403
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE C:REFER ILLUST.
sub42611-48221
main42611-48221i200404-200601
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE C:REFER ILLUST.
main42611-48222i200601-200812
18X7JJ,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINTING) M+S,TYPE C:REFER ILLUST.
main42611-48230i200302-200403
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE D:REFER ILLUST.
sub42611-48231
main42611-48231i200404-200601
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE D:REFER ILLUST.
sub42611-48232
main42611-48232i200601-200812
18X7JJ, #,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINTING) M+S,TYPE D:REFER ILLUST.
sub42611-48222
main42611-48241i200501
18X7JJ,SPECIAL EDITION,TYPE E:REFER ILLUST.
sub42611-48242
main42611-48330i200409-200508
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-48400
main42611-48331i200601-200812
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-48401
main42611-48340i200409-200601
17X6.5J, #,TYPE B:REFER ILLUST.
sub42611-48440
main42611-48341i200601-200812
17X6.5J, #,TYPE B:REFER ILLUST.
main42611-48381i200601-200812
18X7JJ,KOREA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48780
main42611-48400i200508-200601
17X6.5J,MARK SD18M,TYPE A:REFER ILLUST.
main42611-48560i200612-200812
18X7J,KOREA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE G:REFER ILLUST.
sub42611-48590
main42611-48560i200707-200812
18X7J,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPEG:REFER ILLUST.
sub42611-48590
main42611-48570i200612-200812
18X7J, #,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE G:REFER ILLUST.
sub42611-48600
main42611-48590i200612-200812
18X7J,KOREA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE H:REFER ILLUST.
main42611-48590i200707-200812
18X7J,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPEH:REFER ILLUST.
main42611-48600i200612-200812
18X7J,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE H:REFER ILLUST.
sub42611-48590
main4261A-48100i200707-200812
18X7JJ,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINTING) M+S,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-48180i200302-200408
17X6.5JJ, #,TYPE A:REFER ILLUST.
main42611-48190i200302-200408
17X6.5JJ,TYPE B:REFER ILLUST.
sub42611-48340
main42611-48200i200302-200403
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE C:REFER ILLUST.
sub42611-48201
main42611-48201i200404-200601
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE C:REFER ILLUST.
sub42611-48410
main42611-48202i200601-200812
18X7JJ,TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE C:REFER ILLUST.
sub42611-48780
main42611-48210i200302-200403
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE D:REFER ILLUST.
sub42611-48211
main42611-48211i200404-200601
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI,TYPE D:REFER ILLUST.
sub42611-48212
main42611-48212i200601-200812
18X7JJ, #,TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48780
main42611-48220i200302-200403
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE C:REFER ILLUST.
sub42611-48221
main42611-48221i200404-200601
18X7JJ,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE C:REFER ILLUST.
main42611-48222i200601-200812
18X7JJ,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINTING) M+S,TYPE C:REFER ILLUST.
main42611-48230i200302-200403
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE D:REFER ILLUST.
sub42611-48231
main42611-48231i200404-200601
18X7JJ, #,TIRE & DISC WHEEL-235/55R18 ALUMI(CHROME PAINTING),TYPE D:REFER ILLUST.
sub42611-48232
main42611-48232i200601-200812
18X7JJ, #,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINTING) M+S,TYPE D:REFER ILLUST.
sub42611-48222
main42611-48241i200501
18X7JJ,SPECIAL EDITION,TYPE E:REFER ILLUST.
sub42611-48242
main42611-48330i200409-200508
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-48400
main42611-48331i200601-200812
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-48401
main42611-48340i200409-200601
17X6.5J, #,TYPE B:REFER ILLUST.
sub42611-48440
main42611-48341i200601-200812
17X6.5J, #,TYPE B:REFER ILLUST.
main42611-48381i200707-200812
18X7JJ,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48780
main42611-48381i200601-200812
18X7JJ,KOREA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S,TYPE D:REFER ILLUST.
sub42611-48780
main42611-48400i200508-200601
17X6.5J,MARK SD18M,TYPE A:REFER ILLUST.
main42611-48401i200707-200812
17X6.5J,MARK SD19D,CANADA SPEC,TYPE A:REFER ILLUST.
main42611-48560i200707-200812
18X7J,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPEG:REFER ILLUST.
sub42611-48590
main42611-48560i200612-200812
18X7J,KOREA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE G:REFER ILLUST.
sub42611-48590
main42611-48570i200612-200812
18X7J, #,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE G:REFER ILLUST.
sub42611-48600
main42611-48590i200612-200812
18X7J,KOREA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE H:REFER ILLUST.
main42611-48590i200707-200812
18X7J,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPEH:REFER ILLUST.
main42611-48600i200612-200812
18X7J,TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINT)7-SPOKE M+S,TYPE H:REFER ILLUST.
sub42611-48590
main4261A-48100i200707-200812
18X7JJ,CANADA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI(CHROME PAINTING) M+S,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01033i200302-200812
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33020i200601-200602
sub42607-33021
main42607-33021i200602-200812
sub42607-33022
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-33020i200601-200602
sub42607-33021
main42607-33021i200602-200812
sub42607-33022
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i200302-200601
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200302-200601
42611UCAP, TIRE VALVE
main90942-05037i200601-200812
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05037i200601-200812
42627BBOLT, WHEEL CAP SET
42652TIRE
main42652-0E020i200302-200309
225/65R17,*D/L
sub42652-48410
main42652-0E030i200302-200601
225/65R17,MICHELIN
main42652-48410i200309-200601
225/65R17,GOODYEAR
42652ATIRE (FOR SPARE)
main42652-0E020i200302-200309
225/65R17,*D/L
sub42652-48410
main42652-0E030i200302-200601
225/65R17,MICHELIN
main42652-48410i200309-200601
225/65R17,GOODYEAR

13 parts on this diagram · 3 diagrams in section
