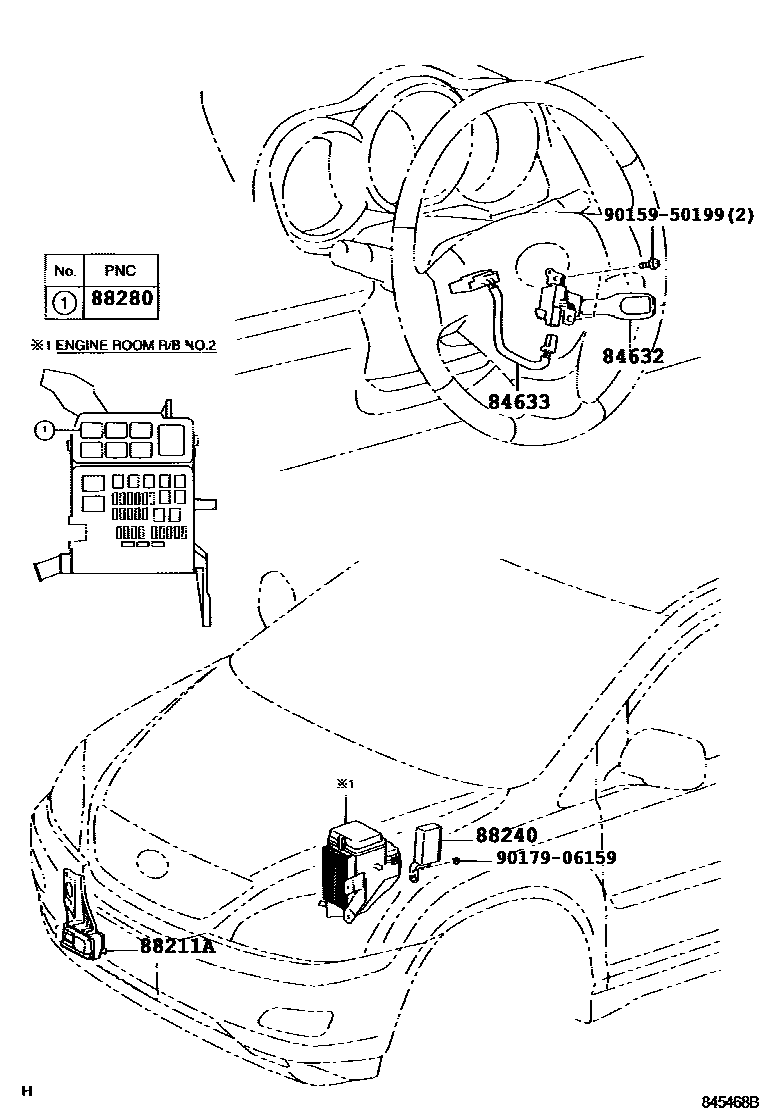

Toyota LEXUS RX330/350(JPP) — CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34010iMCU3#..JPP200302-200409

sub84632-34011

main84632-34011iMCU3#..JPP200409-200812

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020iMCU3#..JPP200302-200812

88211ASENSOR, LASER RADAR

88240COMPUTER ASSY, CRUISE CONTROL

main88240-48090

main88240-48091

main88240-48180

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-04004

9015950199

main90159-50199

9017906159

main90179-06159

7 parts on this diagram · 1 diagram in section
