Toyota LEXUS RX330/350(JPP) — CAMSHAFT & VALVE

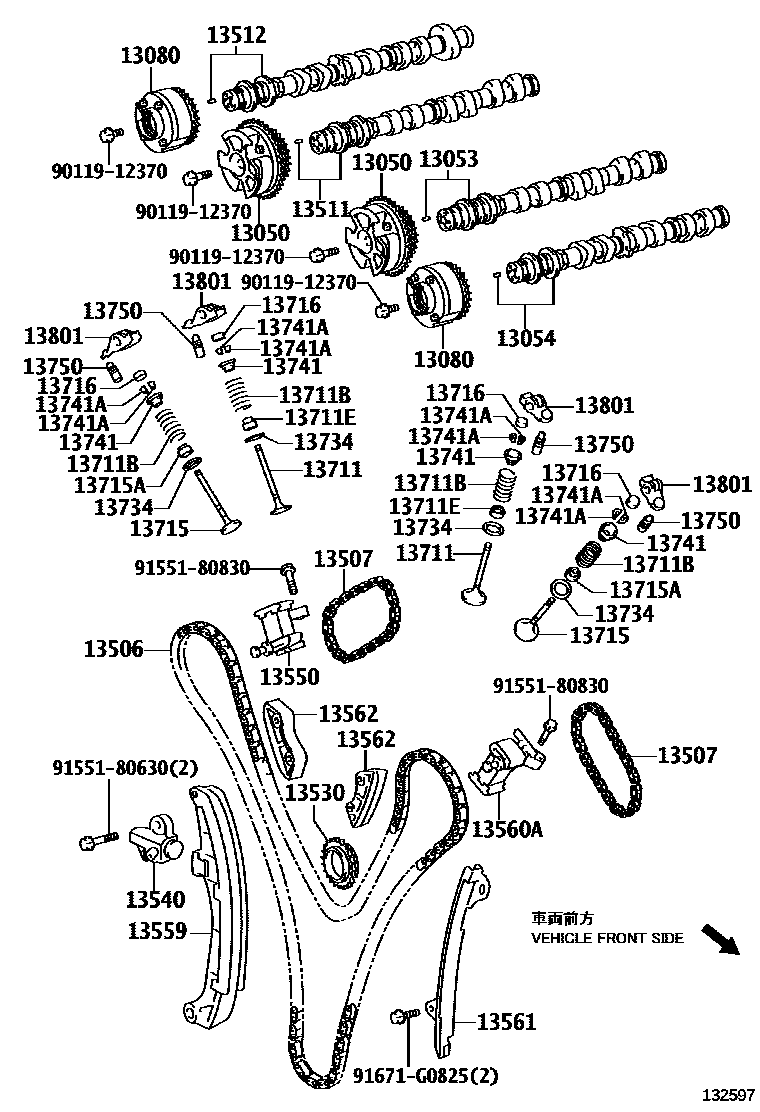

Parts diagram
13050GEAR ASSY, CAMSHAFT TIMING
main13050-0A010i200307
(L)
sub13050-20011
main13050-20010i200302-200409
sub13050-20011
main13050-20011i200409
(J)
main13050-31170i200601-200812
13053CAMSHAFT SUB-ASSY, NO.3
main13053-0A040i200302
*121
sub13053-20040
main13053-20040i200302
*120
main13053-31080i200601-200812
sub13053-31061
13054CAMSHAFT SUB-ASSY, NO.4
main13054-0A040i200302-200404
*121
sub13054-0A041
main13054-0A041i200404
sub13054-20030
main13054-20030i200302
*120
main13054-31080i200601-200812
sub13054-31061
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
main13080-31020i200601-200603
sub13080-31030
main13080-31030i200603-200812
13506CHAIN SUB-ASSY
main13506-31020i200601-200804
sub13506-31031
main13506-31031i200804-200812
13507CHAIN SUB-ASSY, NO.2
main13507-31020i200601-200812
13511CAMSHAFT
main13501-0A040i200302
*121
sub13501-20050
main13501-20050i200302
*120
main13501-31100i200601-200812
sub13501-31091
13512CAMSHAFT, NO.2
main13502-0A040i200302
*121
sub13502-20030
main13502-20030i200302
*120
main13502-31080i200601-200812
sub13502-31061
13530SPROCKET ASSY, IDLE
main13530-31020i200601-200610
sub13530-31021
main13530-31021i200610-200812
13540TENSIONER ASSY, CHAIN, NO.1
main13540-20030i200302
main13540-31021i200601-200812
13550TENSIONER ASSY, CHAIN, NO.2
main13550-31020i200601-200812
13559SLIPPER, CHAIN TENSIONER
main13559-31020i200601-200812
13560ATENSIONER ASSY, CHAIN, NO.3
main13560-31020i200601-200812
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-31021i200601-200812
13562DAMPER, CHAIN VIBRATION, NO.2
main13562-31020i200601-200812
13711VALVE, INTAKE
main13711-0A010i200302
(L)
main13711-20020i200302
main13711-31100i200601-200812
sub13711-31101
13711BSPRING, COMPRESSION(FOR INNER)
main90080-50150i200307
(L)
main90501-31010i200302
main90501-31010i200307
(J)
main90501-36007i200601-200812
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02101i200601-200812
13715VALVE, EXHAUST
main13715-0A010i200302
(L)
main13715-20020i200302
main13715-31120i200601-200812
sub13715-31150
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02112i200601-200812
13716CAP, VALVE STEM
main13716-75020i200601-200812
13734SEAT, VALVE SPRING
main13734-20010i200302
main13734-62020i200601-200812
13741RETAINER, VALVE SPRING
main13741-20020i200302-200506
sub13741-20021
main13741-20021i200506
main13741-31020i200601-200812
13741ALOCK, VALVE SPRING RETAINER
main90913-03028i200302-200812
13750ADJUSTER ASSY, VALVE LASH
main13750-31030i200802-200812
main13750-75020i200601-200802
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-23011i200601-200812
9011912370
main90119-12370
9155180630
main91551-80630
9155180830
main91551-80830
91671G0825
main91671-G0825

30 parts on this diagram · 2 diagrams in section
