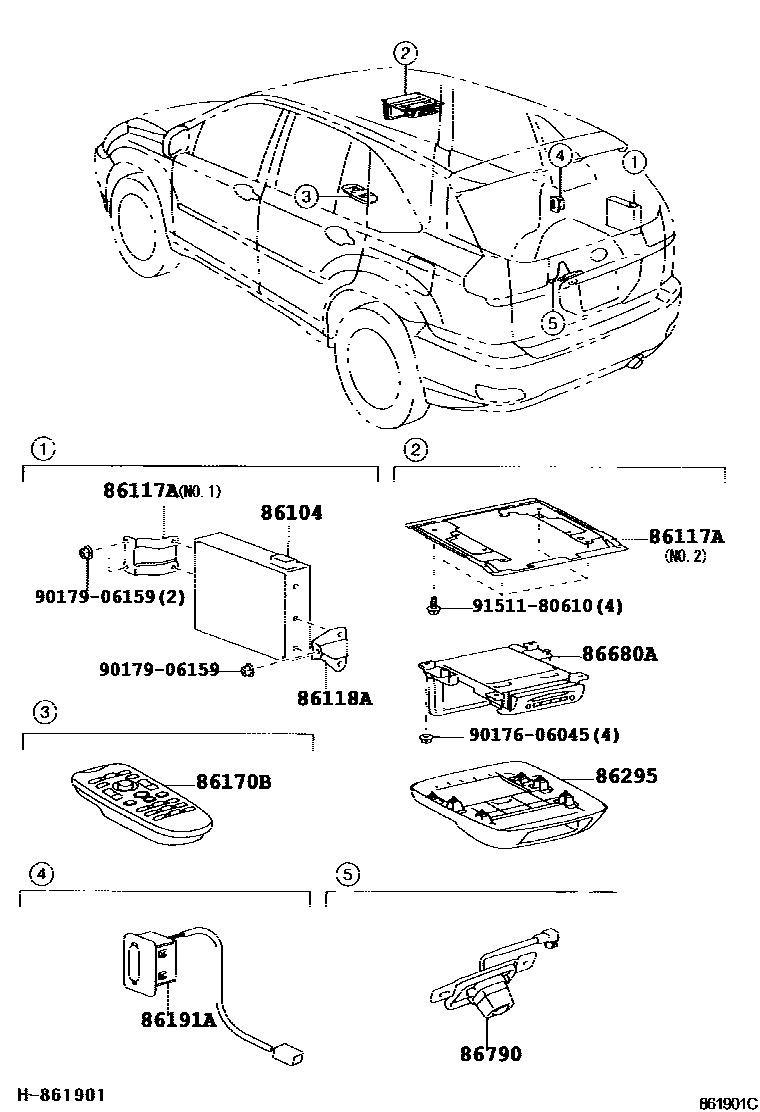

Toyota LEXUS RX330/350(JPP) — CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-45010

main86104-48020

86117ABRACKET, TELEVISION DISPLAY, A

86118ABRACKET, TELEVISION DISPLAY, B

86170BSWITCH & VOLUME ASSY, TELEVISION

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

86295BASE, TELEVISION

main86295-48010

main86295-48030

86680ADISPLAY ASSY, TELEVISION

86790CAMERA ASSY, TELEVISION

main86790-48020

main86790-48060

9017606045

main90176-06045

9017906159

main90179-06159

9151180610

main91511-80610

11 parts on this diagram · 2 diagrams in section
