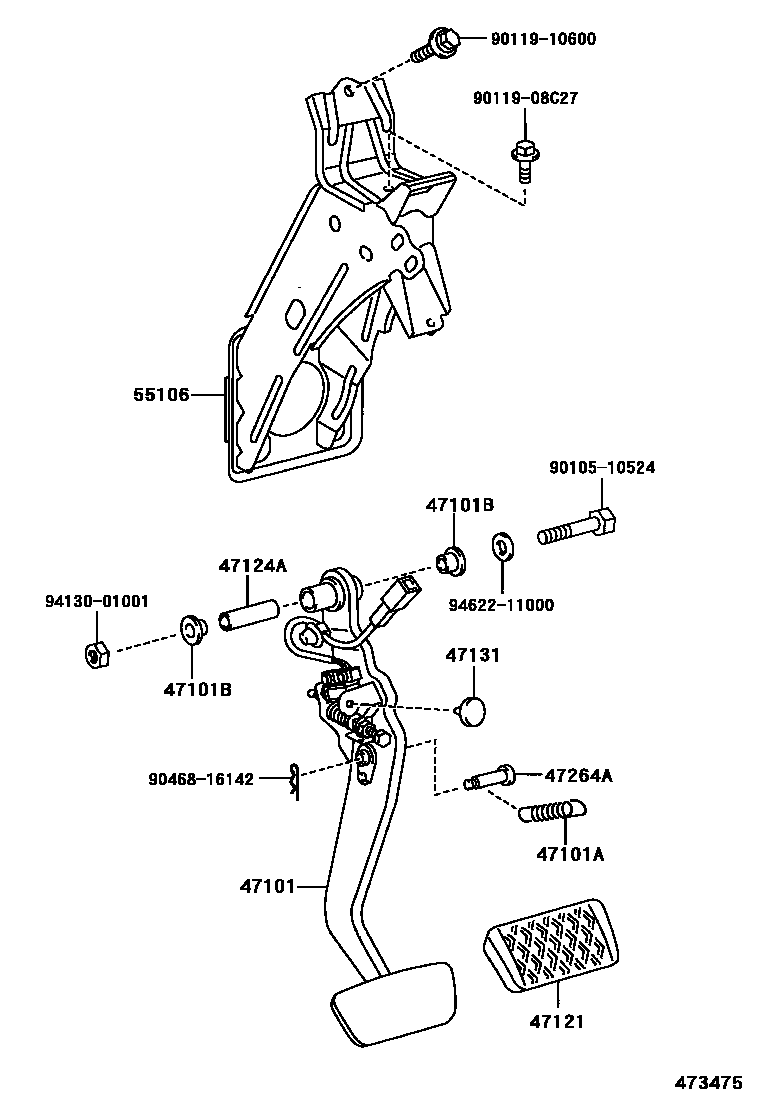

Toyota LEXUS RX330/350(JPP) — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47106-48050iMCU3#..JPP200302-200812

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15004iMCU3#..JPP200302-200812

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCU3#..JPP200302-200812

47121PAD, BRAKE PEDAL

main47121-50020iMCU3#..JPP200302-200812

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCU3#..JPP200302-200812

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCU3#..JPP200302-200812

47264APIN(FOR PUSH ROD)

main90249-06180iMCU3#..JPP200302-200812

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48070iMCU3#..JPP200302-200803

sub55106-48071

main55106-48071iGSU3#..JPP200804-200812

9010510524

main90105-10524

9011908C27

main90119-08C27

9011910600

main90119-10600

9046816142

main90468-16142

9413001001

main94130-01001

9462211000

main94622-11000

14 parts on this diagram · 1 diagram in section
