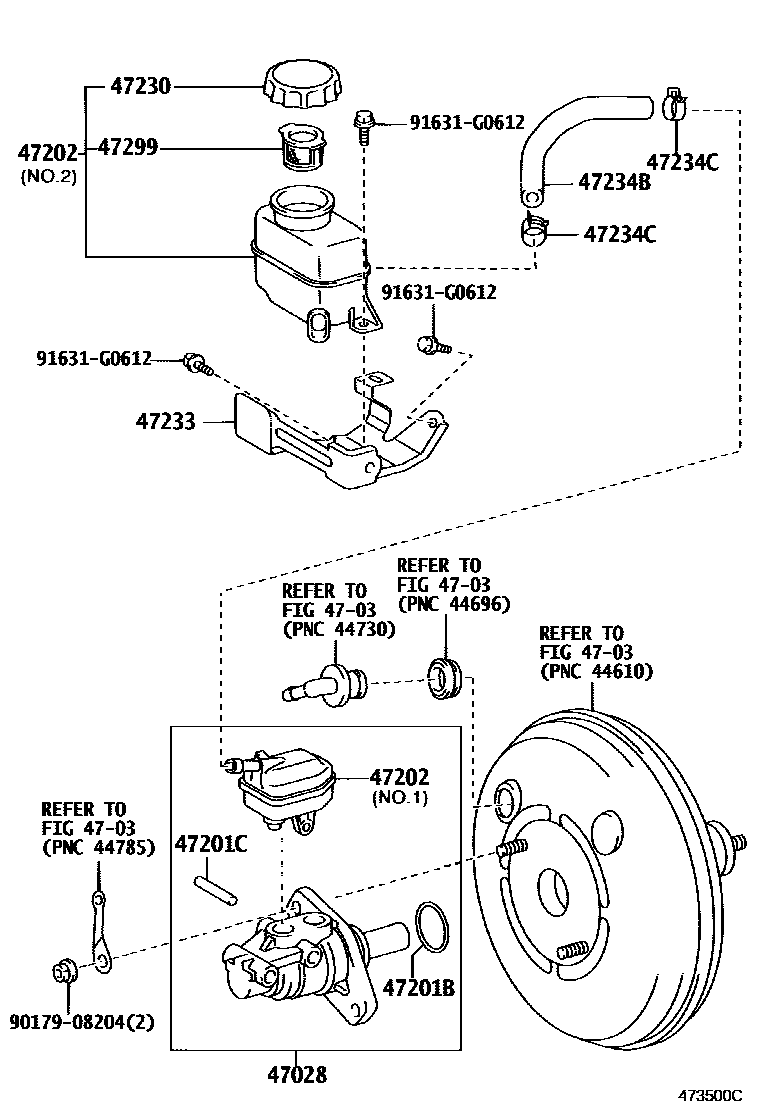

Toyota LEXUS RX330/350(JPP) — BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-48020iMCU3#..JPP200302-200402

sub47028-48021

main47028-48021iMCU3#..JPP200402-200812

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGSU3#..JPP200302-200812

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMCU3#..JPP200302-200812

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48020iMCU3#..JPP200302-200812

NO.1

main47220-48140iGSU3#..JPP200302-200812

NO.2

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iMCU3#..JPP200302-200812

sub47230-47090

47233BRACKET, RESERVOIR

main47233-48060iMCU3#..JPP200302-200812

47234BTUBE, RESERVOIR, NO.1

main47234-48060iMCU3#..JPP200302-200812

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iMCU3#..JPP200302-200812

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCU3#..JPP200302-200812

9017908204

main90179-08204

91631G0612

main91631-G0612

12 parts on this diagram · 1 diagram in section
