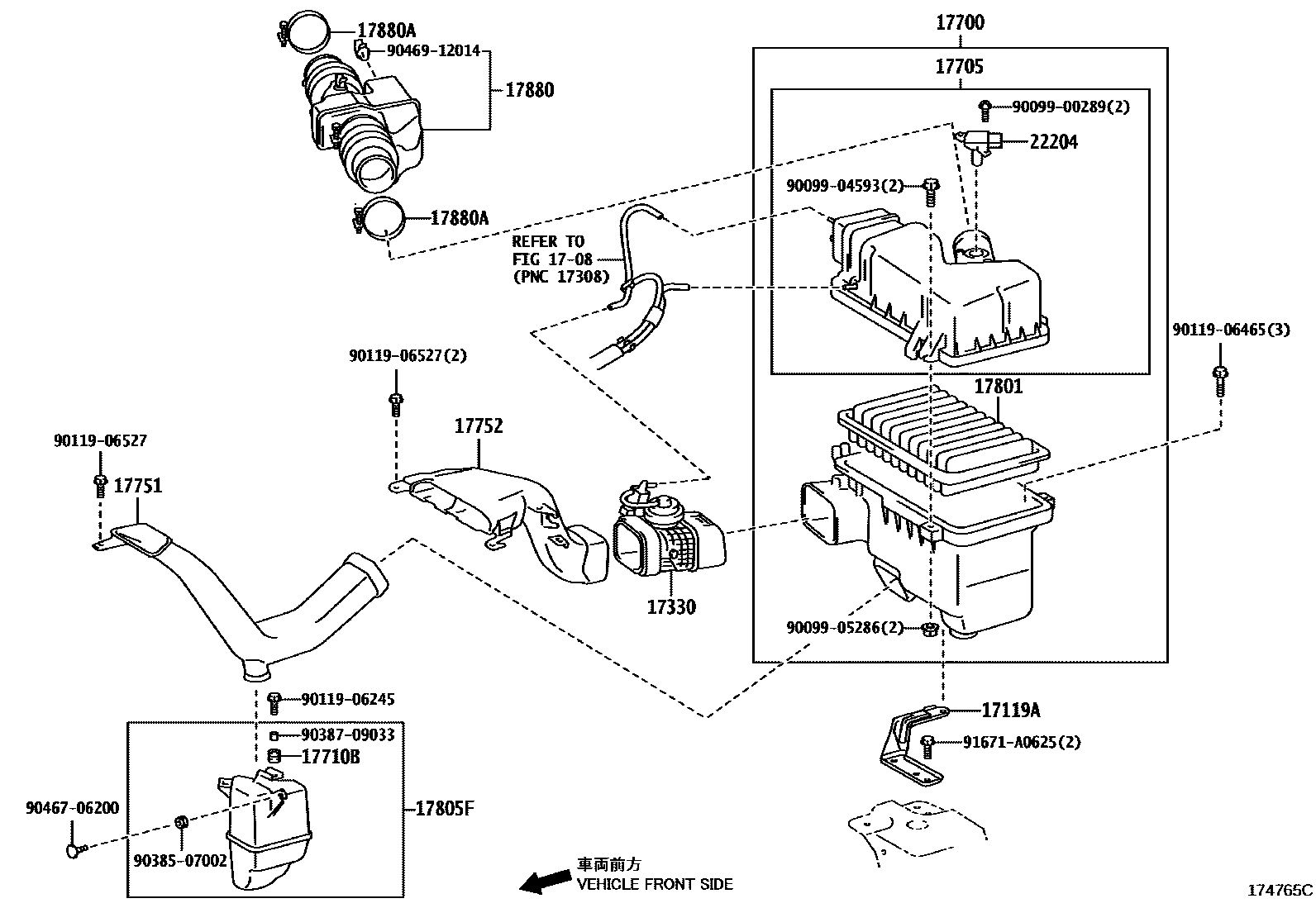

Toyota LEXUS RX330/350(JPP) — AIR CLEANER

0001 1 0002 1

1708

17119ABRACKET, AIR CLEANER

main17119-28050i3MZFE..MCU3#..JPP200302-200812

17330VALVE ASSY, INTAKE AIR CONTROL, NO.3

main17330-20010i3MZFE..MCU3#..JPP200302-200812

17700CLEANER ASSY, AIR

main17700-20190i3MZFE..MCU3#..JPP200302

main17700-31670i2GRFE..GSU3#..JPP200601-200701

sub17700-31671

main17700-31671i2GRFE..GSU3#..JPP200702-200812

17705CAP SUB-ASSY, AIR CLEANER

main17705-20180i3MZFE..MCU3#..JPP200302

main17705-31210i2GRFE..GSU3#..JPP200601-200701

sub17705-31211

main17705-31211i2GRFE..GSU3#..JPP200702-200812

17710BGROMMET

main90480-17013i2GRFE..GSU3#..JPP200601-200812

17751INLET, AIR CLEANER, NO.1

main17751-20030i3MZFE..MCU3#..JPP200302

main17751-31170i2GRFE..GSU3#..JPP200601-200812

17752INLET, AIR CLEANER, NO.2

main17752-20030i3MZFE..MCU3#..JPP200302

main17752-31050i2GRFE..GSU3#..JPP200601-200812

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H020i3MZFE..MCU3#..JPP200302-200812

(L)

main17801-20040i3MZFE..MCU3#..JPP200302-200812

(J)

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-20040i3MZFE..MCU3#..JPP200302

main17805-31020i2GRFE..GSU3#..JPP200601-200812

17880HOSE ASSY, AIR CLEANER

main17880-31120i2GRFE..GSU3#..JPP200601-200812

17880ACLAMP, HOSE

main96111-10880i2GRFE..GSU3#..JPP200601-200812

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i3MZFE..MCU3#..JPP200302

main22204-31010i2GRFE..GSU3#..JPP200601-200702

sub22204-31020

main22204-31020i2GRFE..GSU3#..JPP200702-200812

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9011906245

main90119-06245

9011906465

main90119-06465

9011906527

main90119-06527

9038507002

main90385-07002

9038709033

main90387-09033

9046706200

main90467-06200

9046912014

main90469-12014

91671A0625

main91671-A0625

24 parts on this diagram · 2 diagrams in section
