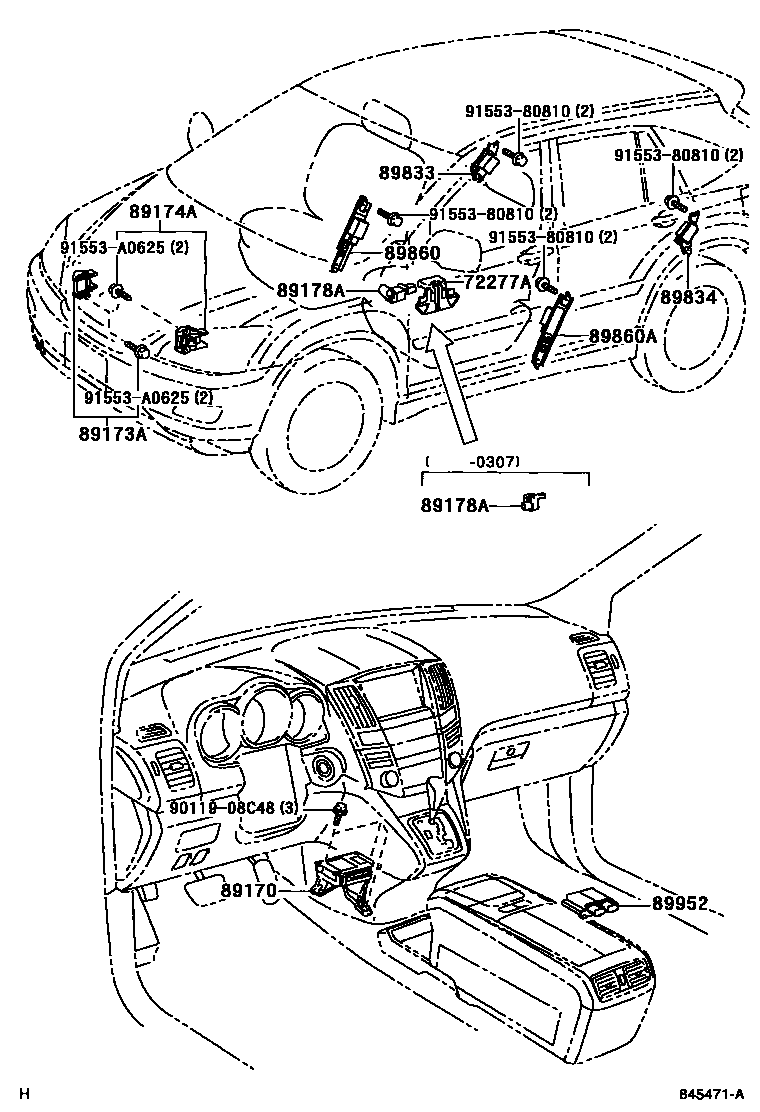

Toyota LEXUS RX330/350(JPP) — AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33020iMCU3#..JPP200307-200408

sub72277-33021

main72277-33021iMCU3#..JPP200408-200812

89170SENSOR ASSY, AIRBAG

main89170-48070iMCU3#..JPP200302-200408

main89170-48210iMCU3#..JPP200408-200605

sub89170-48211

main89170-48211iGSU3#..JPP200606-200812

89173ASENSOR, AIRBAG, FRONT RH

main89173-49295iMCU3#..JPP200302-200812

89174ASENSOR, AIRBAG, FRONT LH

main89173-49295iMCU3#..JPP200302-200812

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iMCU3#..JPP200302-200307

main89178-33030iMCU3#..JPP200307-200309

sub89178-33031

main89178-33050iMCU3#..JPP200408-200812

89833SENSOR, AIRBAG, REAR RH

main89833-48010iMCU3#..JPP200302-200503

main89833-48020iMCU3#..JPP200504-200812

89834SENSOR, AIRBAG, REAR LH

main89834-48010iMCU3#..JPP200302-200503

main89834-48020iMCU3#..JPP200504-200812

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-48020iMCU3#..JPP200302-200812

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-48020iMCU3#..JPP200302-200812

89952COMPUTER, OCCUPANT DETECTION

main89952-48010iMCU3#..JPP200302-200405

MOBILITY SPEC

sub89952-48011

main89952-48011iMCU3#..JPP200405-200408

MOBILITY SPEC

main89952-48021iMCU3#..JPP200408-200503

MOBILITY SPEC

main89952-48030iMCU3#..JPP200503-200601

MOBILITY SPEC

main89952-48030iGSU3#..JPP200601-200812

WELCAB P SEAT

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0625

main91553-A0625

13 parts on this diagram · 1 diagram in section
