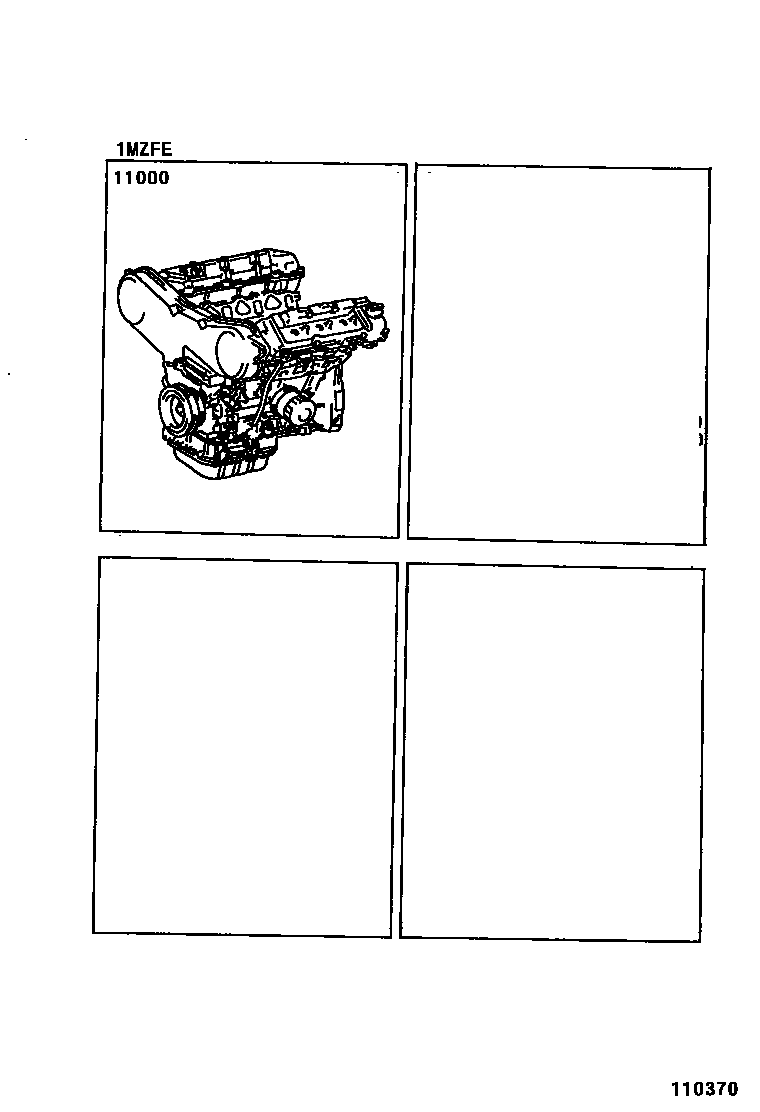

Toyota LEXUS RX300 — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-20140i199801-199903

main19000-20141i199903-199908

main19000-20160i199801-199903

main19000-20161i199903-199908

main19000-20210i199908

main19000-20230i199908

1 parts on this diagram · 1 diagram in section
