Toyota LEXUS RX SERIES — SWITCH & RELAY & COMPUTER

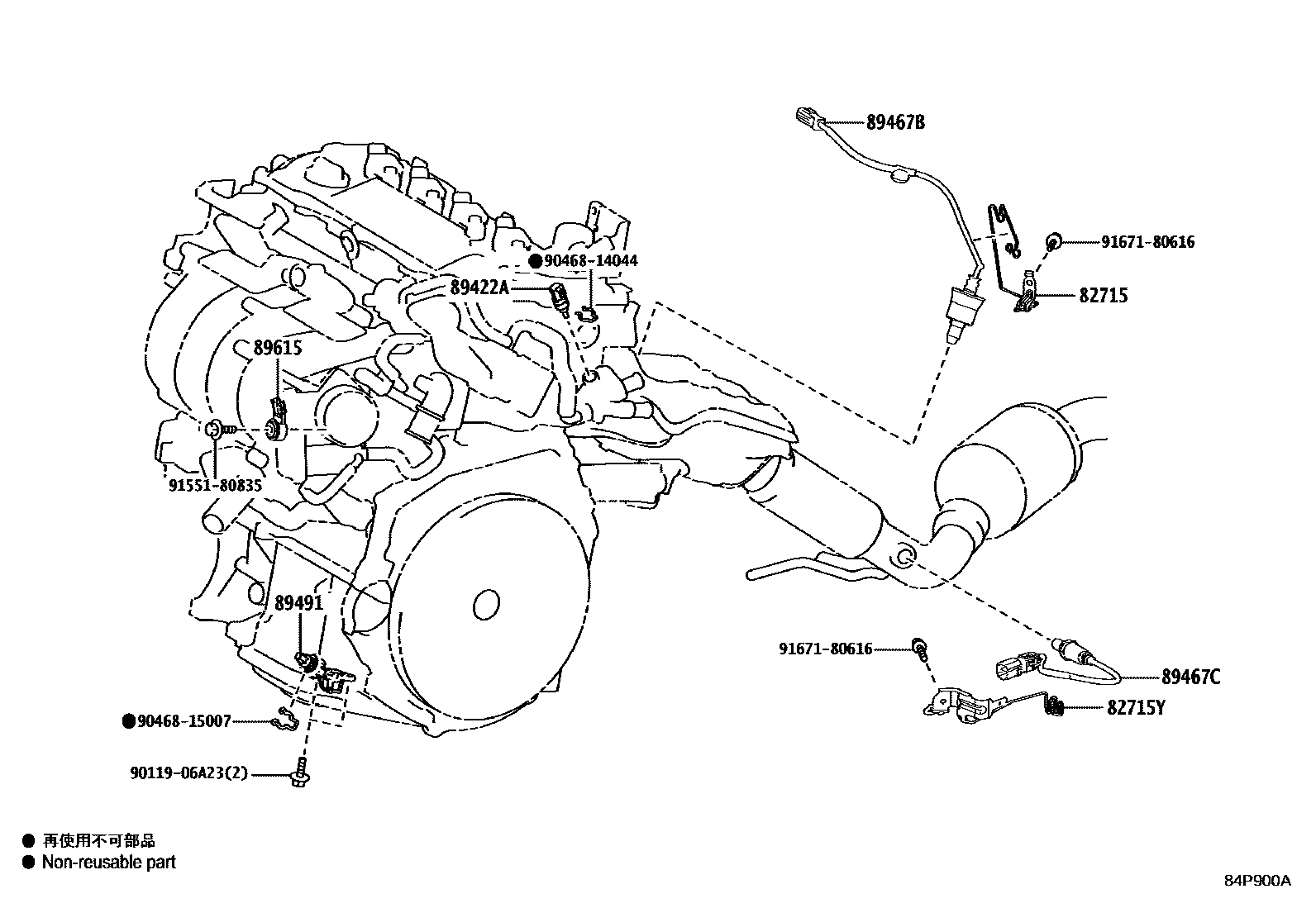

Parts diagram

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10i202211

main8946A-48110i202211-202406

main8946A-48130i202406

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60i202211

main8946A-78030i202211

89422ASENSOR, WATER TEMPERATURE

main89422-33040i202211

89467BSENSOR, AIR FUEL RATIO

main89467-48400i202211

main89467-78070i202211

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170i202211

main89467-42190i202211

main89467-78050i202211

89491SENSOR, ENGINE OIL LEVEL

main89491-33052i202211

89615SENSOR, KNOCK CONTROL

main89615-20090i202211

main89615-78010i202211

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180616

main91671-80616

12 parts on this diagram · 17 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS RX SERIES

This section contains 215 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS RX SERIES. Key components include: RELAY ASSY, STARTER, RELAY, IGR, RELAY, IGNITION, NO.3, RELAY, IGP, RELAY, IGP, NO.3.
