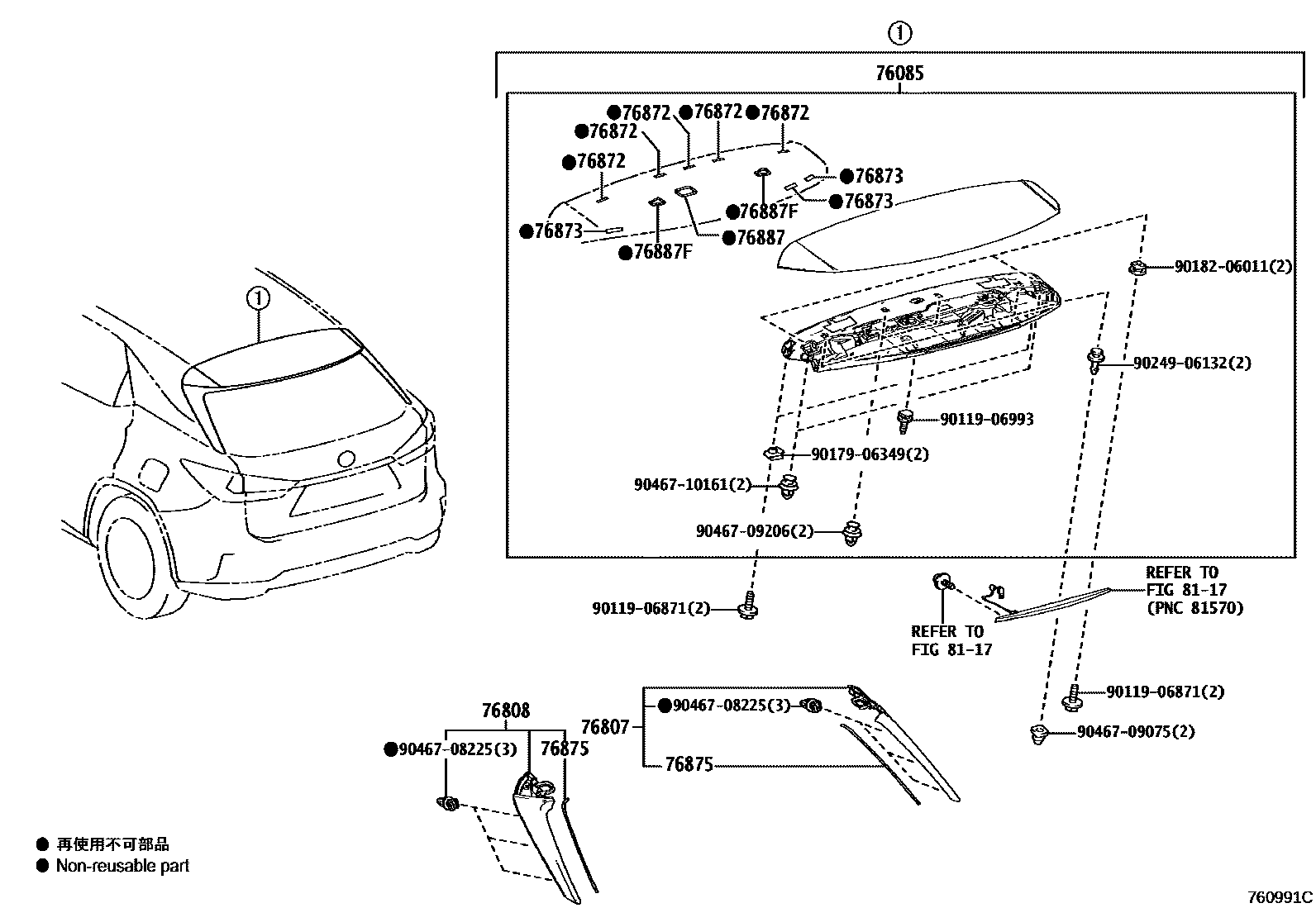

Toyota LEXUS RX SERIES — MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-48903-A0iAGL2#,GYL2#201509-201908

WHITE NOVA GF.,083

main76085-48903-A1iAGL2#,GYL2#201509-201908

SONIC QUARTZ,085

main76085-48903-B0iAGL2#,GYL2#201509-201908

SONIC TITANIUM,1J7

main76085-48903-B1iAGL2#,GYL2#201509-201908

PLATINUM SILVER ME.,1J4

main76085-48903-B3iAGL2#,GYL2#202107

SONIC CHROME,1L1

main76085-48903-B4iAGL2#,GYL2#202107

SONIC IRIDIUM,1L2

main76085-48903-C1iAGL2#,GYL2#201509-201908

BLACK,212

main76085-48903-C2iAGL2#,GYL2#201509-201908

GRAPHITE BLACK GF.,223

main76085-48903-D0iAGL2#,GYL2#201509-201908

RED MC.CS.,3R1

main76085-48903-E0iAGL2#,GYL2#201509-201908

SLEEK ECRU ME.,4U7

main76085-48903-E1iAGL2#,GYL2#201509-202107

AMBER CS.,4X2

main76085-48903-E2iAGL2#,GYL2#201908

ICE ECRU M.M.,4X8

main76085-48903-G0iAGL2#,GYL2#201908

TERRANE KHAKI M.M.,6X4

main76085-48903-J0iAGL2#,GYL2#201509-201908

DEEP BLUE MC.,8X5

main76085-48903-J1iAGL2#,GYL2#201608-201908

HEAT BLUE CONTRAST LAYERI,8X1

76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH

main76807-48010iAGL2#,GYL2#201509-201703

sub76807-48011

main76807-48011iAGL2#,GYL2#201704-201908

76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH

main76808-48010iAGL2#,GYL2#201509-201703

sub76808-48011

main76808-48011iAGL2#,GYL2#201704-201908

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48011iAGL2#,GYL2#201509-201908

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48050iAGL2#,GYL2#201509-201908

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48050iAGL2#,GYL2#201509-201908

76887SEAL, REAR SPOILER

main76887-48040iAGL2#,GYL2#201509-201908

76887FSEAL, REAR SPOILER, NO.2

main76887-48050iAGL2#,GYL2#201509-201908

8117

9011906871

main90119-06871

9011906993

main90119-06993

9017906349

main90179-06349

9018206011

main90182-06011

9024906132

main90249-06132

9046708225

main90467-08225

9046709075

main90467-09075

9046709206

main90467-09206

9046710161

main90467-10161

18 parts on this diagram · 1 diagram in section
