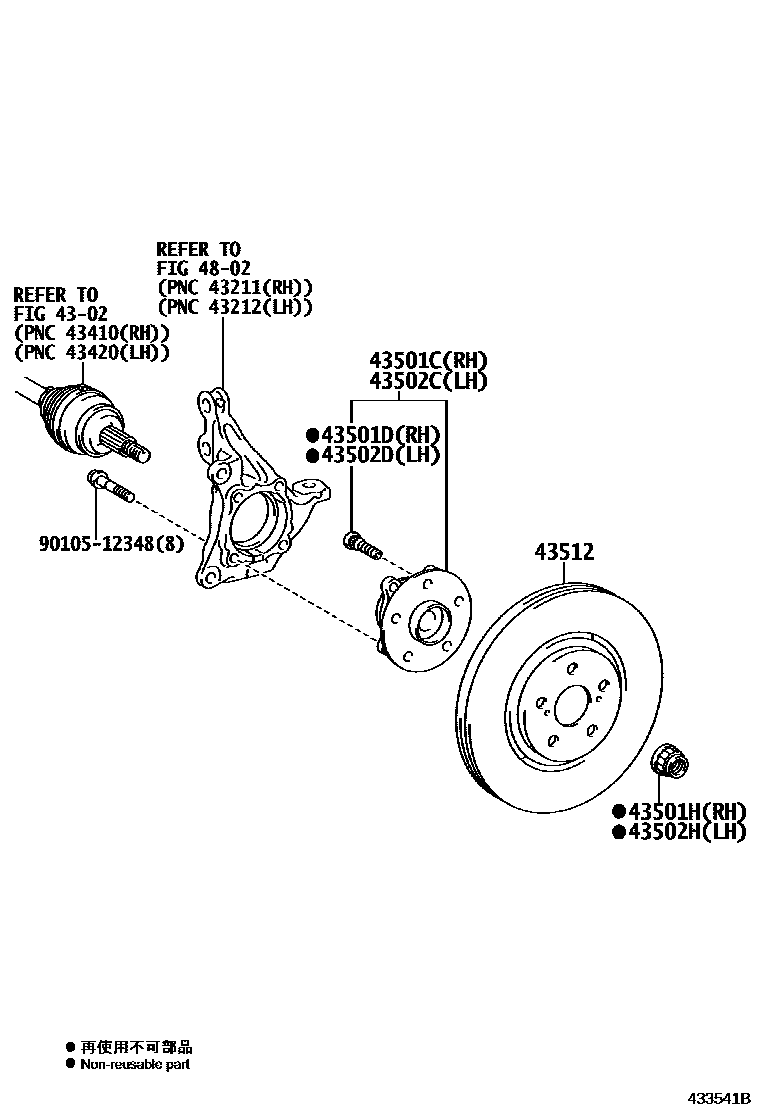

Toyota LEXUS RX SERIES — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-48010iAGL2#,GYL2#201509-201902

sub43550-48011

main43550-48011iAGL2#,GYL2#201903-201908

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02052iAGL2#,GYL2#201509-201908

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAGL2#,GYL2#201509-201908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-48010iAGL2#,GYL2#201509-201902

sub43550-48011

main43550-48011iAGL2#,GYL2#201903-201908

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02052iAGL2#,GYL2#201509-201908

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAGL2#,GYL2#201509-201908

43512DISC, FRONT

main43512-48130iAGL2#,GYL2#201509-201908

4802

9010512348

main90105-12348

10 parts on this diagram · 1 diagram in section
