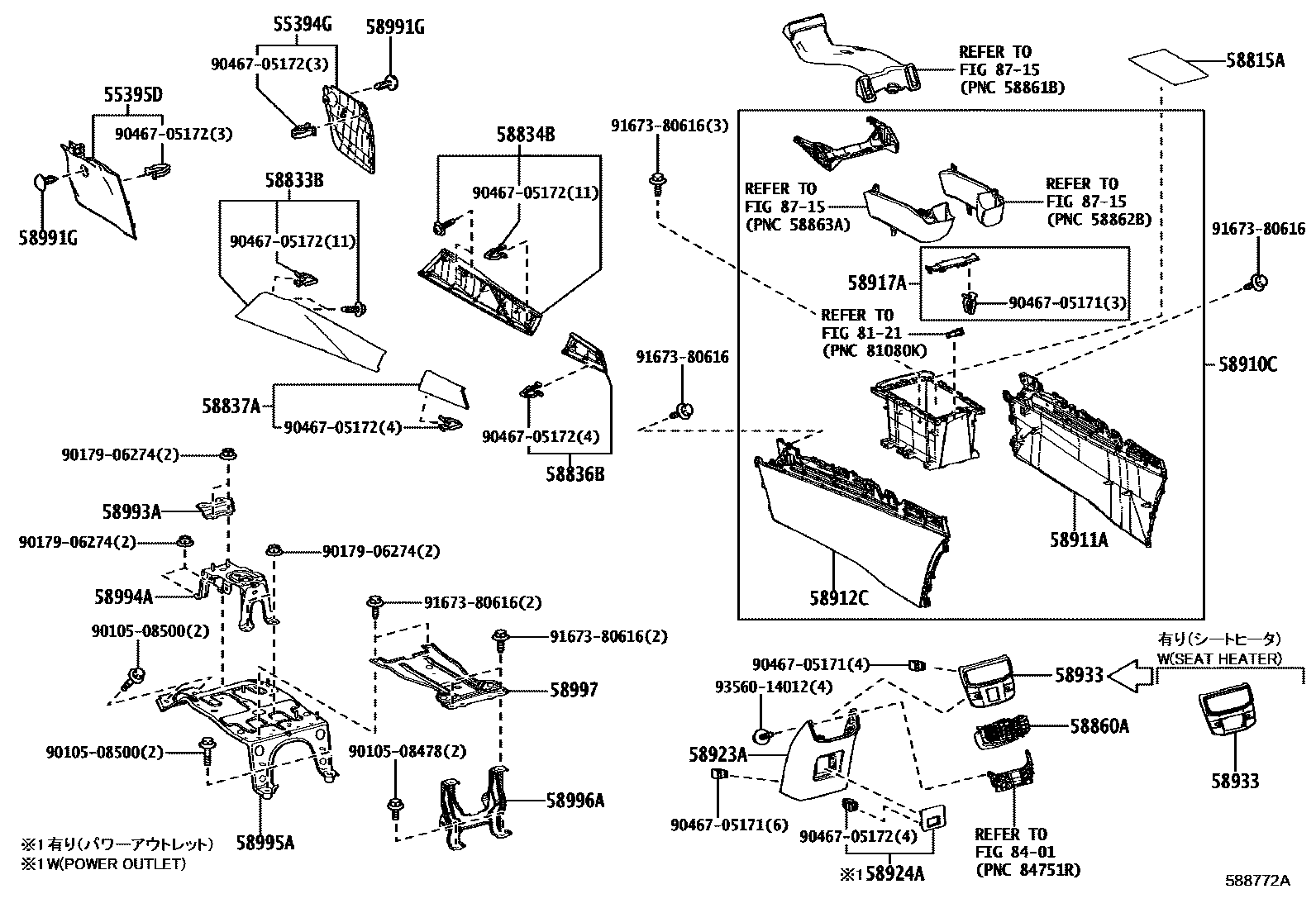

Toyota LEXUS RX SERIES — CONSOLE BOX & BRACKET
55394GCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
55395DCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
58815ACARPET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
WHITE/BLACK,TRIM0#; WHITE/BLACK,TRIM04,05
BLACK/LT.GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK.ROSE/RED,TRIM3#
DK.SEPIA/SHELL,TRIM0#
DK.SEPIA/TOUPE,TRIM4#; DK.SEPIA/TOUPE,TRIM46,47
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
WHITE/BLACK,TRIM0#; WHITE/BLACK,TRIM04,05
BLACK/LT.GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK.ROSE/RED,TRIM3#
DK.SEPIA/SHELL,TRIM0#
DK.SEPIA/TOUPE,TRIM4#; DK.SEPIA/TOUPE,TRIM46,47
58836BPAD, CONSOLE BOX SILENCER, NO.1
WHITE,TRIM0#; WHITE,TRIM04,05
BLACK,TRIM2#; BLACK,TRIM2#,41,42,43
DK.ROSE,TRIM3#
DK.SEPIA,TRIM0#,4#; DK.SEPIA,TRIM0#,46,47
58837APAD, CONSOLE BOX SILENCER, NO.2
WHITE,TRIM0#; WHITE,TRIM04,05
BLACK,TRIM2#; BLACK,TRIM2#,41,42,43
DK.ROSE,TRIM3#
DK.SEPIA,TRIM01,02,46,47
58860AREGISTER ASSY, CONSOLE BOX
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
58917ACOVER, CONSOLE BOX, REAR
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
58933GARNISH, CONSOLE REAR END PANEL
58991GCLIP
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,4#
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8401SWITCH & RELAY & COMPUTER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9010508478
main90105-08478
9010508500
main90105-08500
9017906274
main90179-06274
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9356014012
main93560-14012
31 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota LEXUS RX SERIES
This section contains 40 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LEXUS RX SERIES. Key components include: COVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH, COVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH, COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER FRONT, PANEL SUB-ASSY, CONSOLE, UPPER REAR.
