Toyota LEXUS RX SERIES — BACK DOOR LOCK & HANDLE

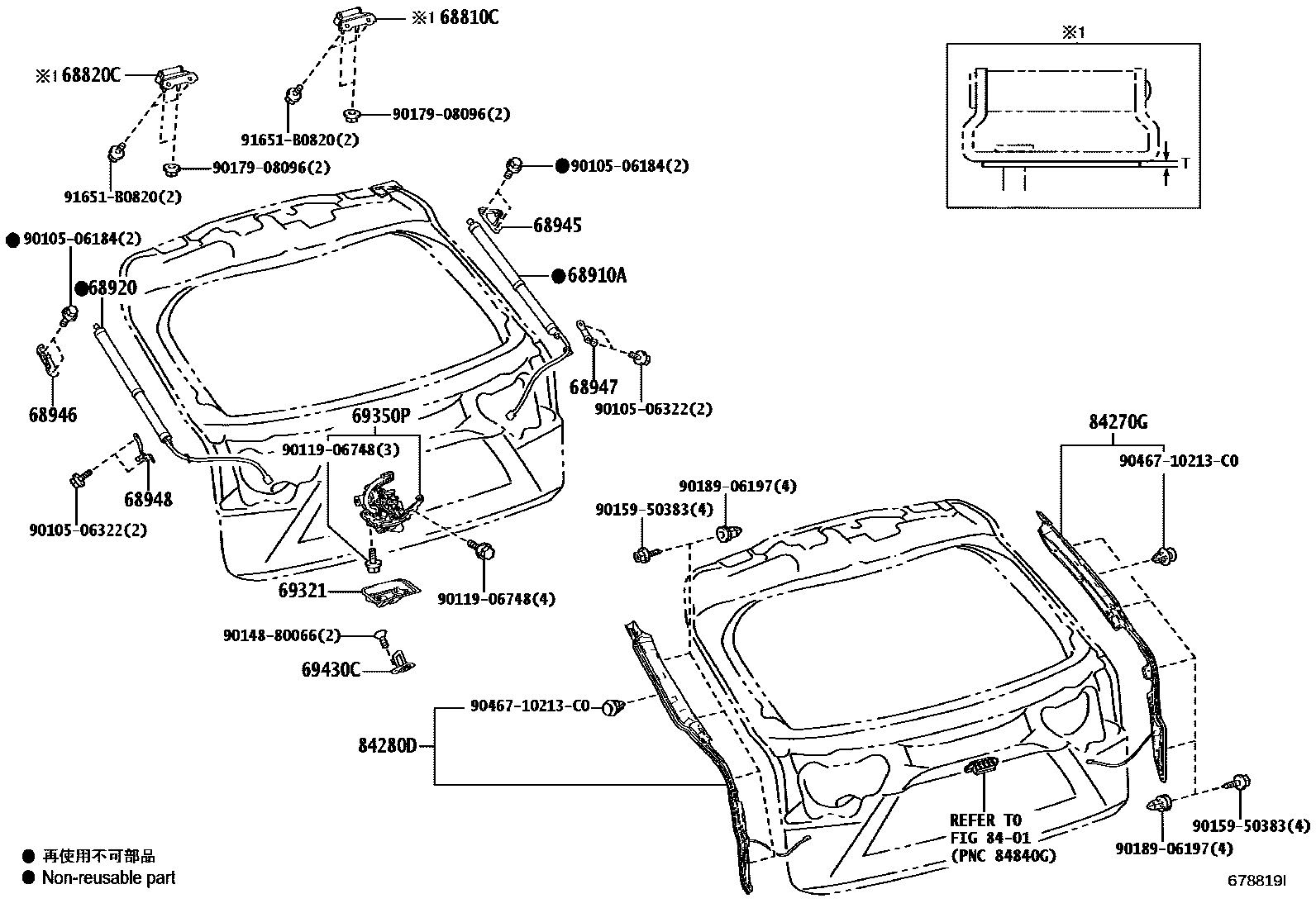

Parts diagram
68810CHINGE ASSY, BACK DOOR, RH
main68810-48170i201509-201512
sub68810-48171
main68810-48171i201601-201908
main68810-48180i201509-201512
sub68810-48181
main68810-48181i201601-201908
main68810-48190i201509-201512
sub68810-48191
main68810-48191i201601-201908
68820CHINGE ASSY, BACK DOOR, LH
main68810-48170i201509-201512
sub68810-48171
main68810-48171i201601-201908
main68810-48180i201509-201512
sub68810-48181
main68810-48181i201601-201908
main68810-48190i201509-201512
sub68810-48191
main68810-48191i201601-201908
68910AUNIT ASSY SET, POWER BACK DOOR, RH
main68910-48070i201509-201808
sub68910-48071
main68910-48071i201809-201908
main68910-48100i201908
68920UNIT ASSY SET, POWER BACK DOOR, LH
main68920-48030i201509-201808
sub68920-48031
main68920-48031i201809-201908
main68920-48080i201908
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-48100i201509-201908
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-48030i201509-201908
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
main68947-48020i201509-201908
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-48020i201509-201908
69321COVER, BACK DOOR LOCK
main69321-0E070i201509-201908
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-48110i201509-201512
sub69350-48111
main69350-48111i201601-201908
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-48030i201509-201908
8401
84270GSENSOR ASSY, POWER BACK DOOR, RH
main84270-48040i201509-201603
sub84270-48041
main84270-48041i201604-201908
84280DSENSOR ASSY, POWER BACK DOOR, LH
main84280-48040i201509-201603
sub84280-48041
main84280-48041i201604-201908
9010506184
main90105-06184
9010506322
main90105-06322
9011906748
main90119-06748
9014880066
main90148-80066
9015950383
main90159-50383
9017908096
main90179-08096
9018906197
main90189-06197
9046710213C0
main90467-10213C0
91651B0820
main91651-B0820

23 parts on this diagram · 1 diagram in section
