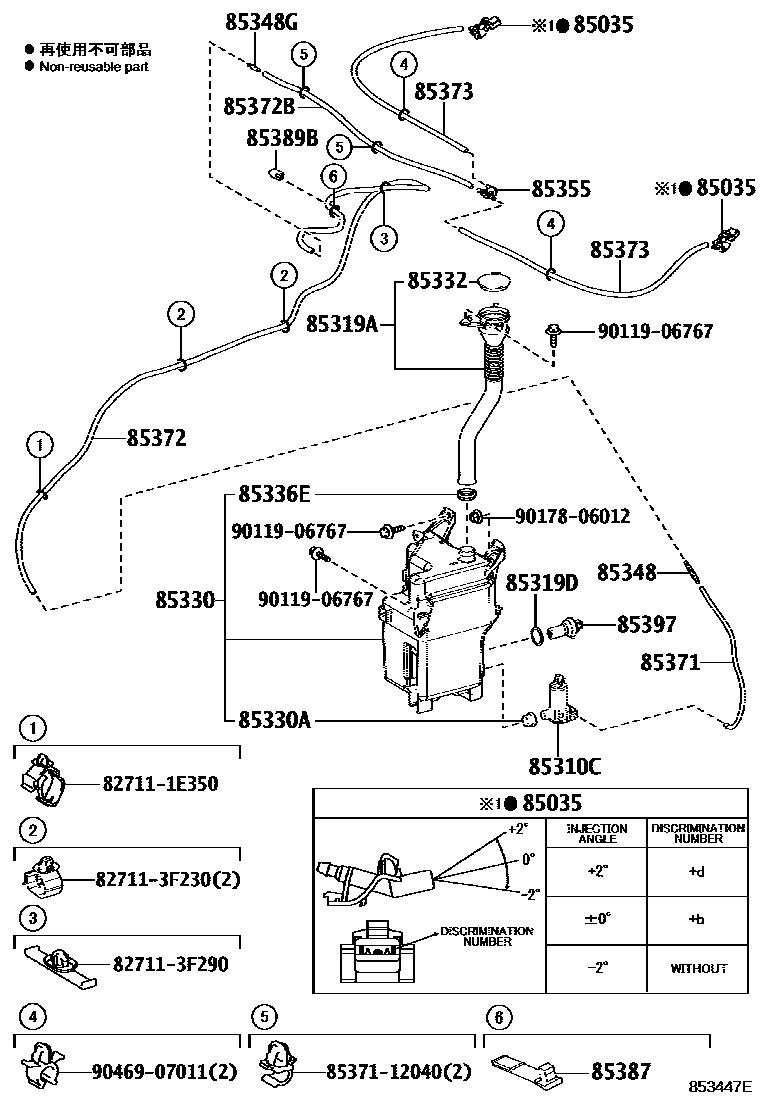

Toyota LEXUS RX SERIES — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
HONG KONG SPEC&COLD AREA SPEC
HONG KONG SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
HONG KONG SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
HEADLAMP-LED TRIPLE BEAM TYPE
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
AUSTRALIA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
AUSTRALIA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
NEW ZEALAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
NEW ZEALAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
THAILAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
THAILAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HONG KONG SPEC
INDONESIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
BRUNEI SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
BRUNEI SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HEADLAMP-LED TRIPLE BEAM TYPE
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
SOUTH AFRICA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
SOUTH AFRICA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
HONG KONG SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
HONG KONG SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
MACAO SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
MACAO SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
MALAYSIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
MALAYSIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
SINGAPORE SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
SINGAPORE SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
INDONESIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=330),NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),SOUTH AFRICA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),SOUTH AFRICA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),HONG KONG SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),HONG KONG SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),MACAO SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),MACAO SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),MALAYSIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),MALAYSIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),SINGAPORE SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),SINGAPORE SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),INDONESIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),INDONESIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),BRUNEI SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),BRUNEI SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=330),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320)
L=1450(*H,L=320),AUSTRALIA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),AUSTRALIA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320),AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320),NEW ZEALAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),NEW ZEALAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320),NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320),THAILAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),THAILAND SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320),THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),THAILAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=320),HONG KONG SPEC
L=1450(*H,L=320),HONG KONG SPEC&COLD AREA SPEC
L=1450(*H,L=320),HONG KONG SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=320),HONG KONG SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=320),COLD AREA SPEC
L=1450(*H,L=320),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330)
L=1450(*H,L=330),AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=330),AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=330),NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1920
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=540)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=330)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F230
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
9011906767
main90119-06767
9017806012
main90178-06012
9046907011
main90469-07011
25 parts on this diagram · 4 diagrams in section
