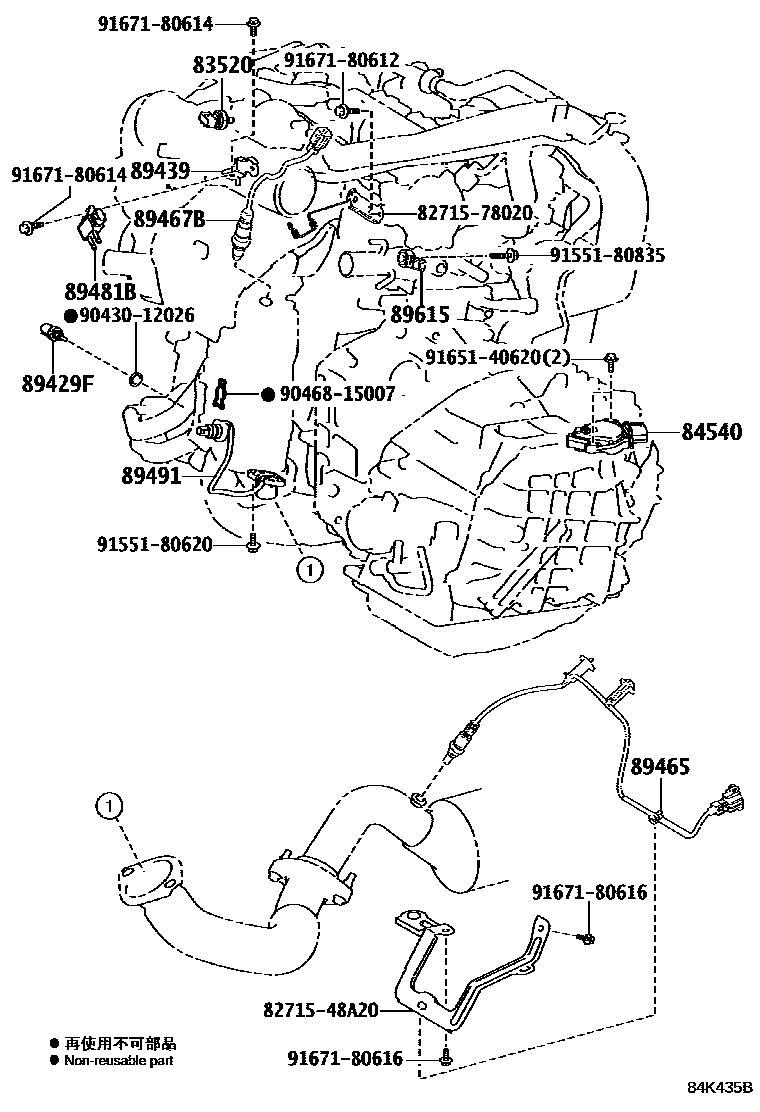

Toyota LEXUS RX SERIES — SWITCH & RELAY & COMPUTER
83520GAGE ASSY,OIL PRESSURE SENDER
89429FSENSOR, TEMPERATURE
89439BRACKET, SENSOR
HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6 C; MACAO SPEC&EXHAUST EMISSION CONTROL-EURO6 C
89465SENSOR, OXYGEN
SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO6 D
89481BSENSOR, DIFFERENTIAL PRESSURE
HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6 C; MACAO SPEC&EXHAUST EMISSION CONTROL-EURO6 C; SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO6 D
89491SENSOR, ENGINE OIL LEVEL
TAIWAN SPEC
TAIWAN SPEC
89615SENSOR, KNOCK CONTROL
8271548A20BRACKET,WIRING HARNESS CLAMP
main82715-48A20
8271578020BRACKET,WIRING HARNESS CLAMP
main82715-78020
9043012026
main90430-12026
9046815007
main90468-15007
9155180620
main91551-80620
9155180835
main91551-80835
9165140620
main91651-40620
9167180612
main91671-80612
9167180614
main91671-80614
9167180616
main91671-80616
19 parts on this diagram · 23 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota LEXUS RX SERIES
This section contains 202 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS RX SERIES. Key components include: RADIATOR & WATER OUTLET, RELAY ASSY, STARTER, NO.1, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, RELAY, BATTERY FAN.
