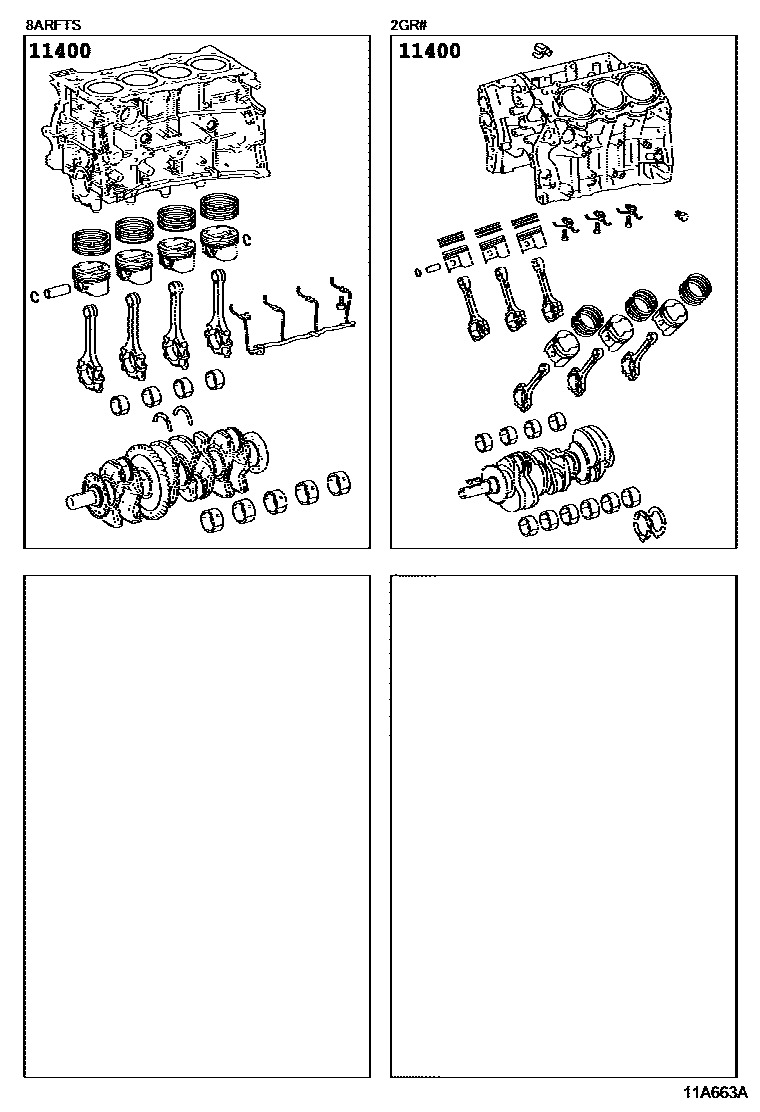

Toyota LEXUS RX SERIES — SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-31420i2GRFKS..GGL2#201509-201908

main11400-31430i2GRFXS..GYL25201510-201908

main11400-36160i8ARFTS..AGL2#201509-202110

sub11400-36200

main11400-36210i8ARFTS..AGL2#..CHI202007-202110

sub11400-36300

main11400-36300i8ARFTS..AGL2#..RHD202110

SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO6 D

main11400-36300i8ARFTS..AGL2#..RHD202110

HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6 C

main11400-36300i8ARFTS..AGL2#..RHD202110

MACAO SPEC&EXHAUST EMISSION CONTROL-EURO6 C

main11400-36300i8ARFTS..AGL2#..RHD202110

TAIWAN SPEC&EXHAUST EMISSION CONTROL-CHINA 6

1 parts on this diagram · 1 diagram in section
