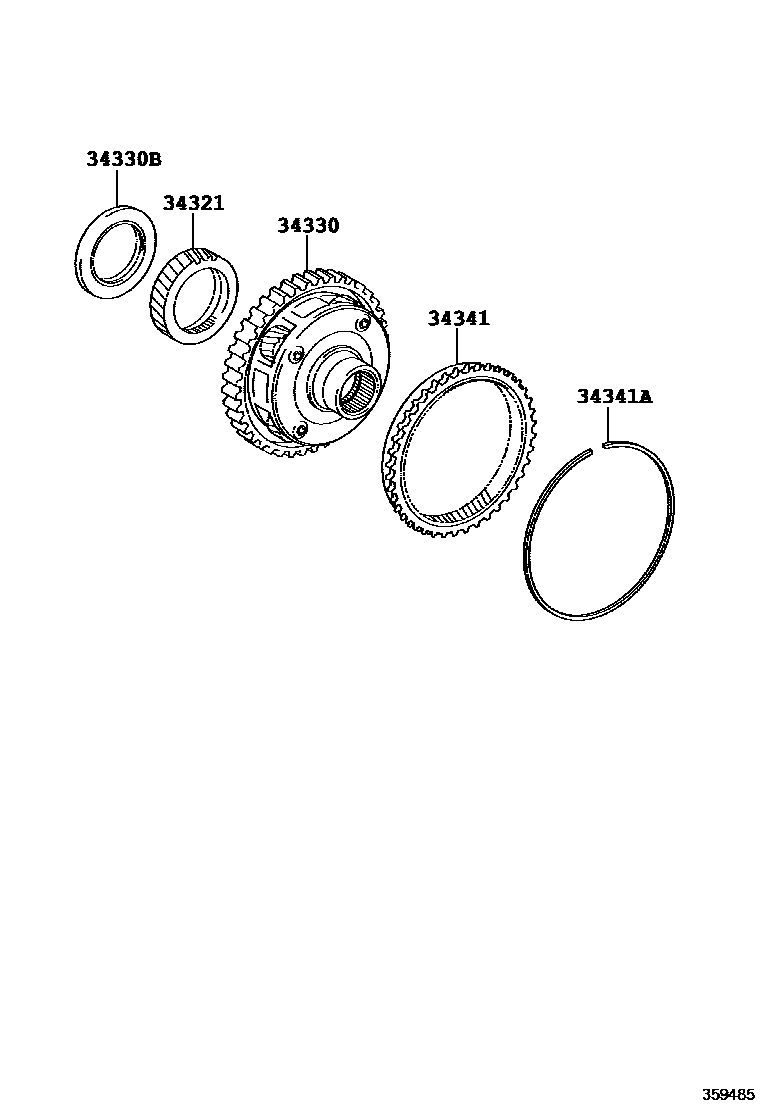

Toyota LEXUS RX SERIES — OVERDRIVE GEAR (ATM)

34321GEAR, UNDERDRIVE PLANETARY SUN

main34321-33010iAGL2#201509-201908

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-33040iAGL2#201509-201908

34330BBEARING, THRUST NEEDLE ROLLER

main90374-57003iAGL2#201509-201908

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-33030iAGL2#201509-201908

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iAGL2#201509-201908

5 parts on this diagram · 1 diagram in section
