Toyota LEXUS RX SERIES — METER

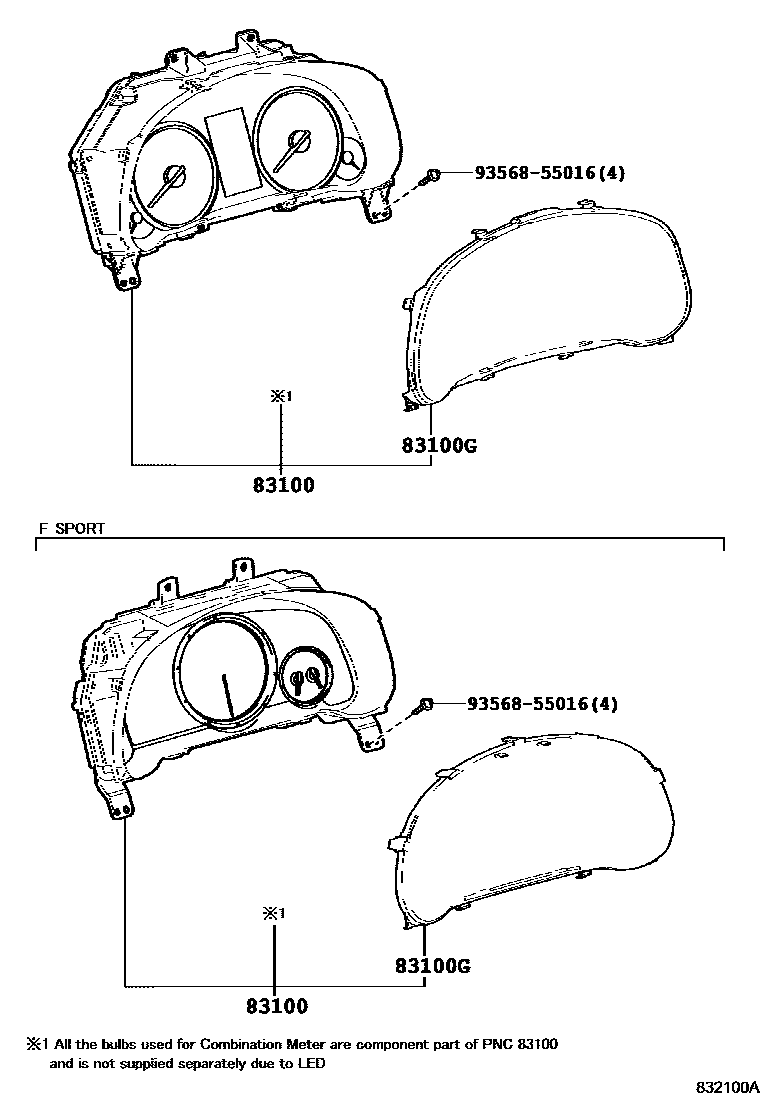

0001 1COMBINATION METER 0002 1HEAD UP DISPLAY 0003 1HEAD UP DISPLAY

83100METER ASSY, COMBINATION

main83800-48Q20iGGL2#201608-201610

sub83800-48Q21

main83800-48Q21iGGL2#201611-201708

sub83800-4D220

main83800-48S30iGGL2#201509-201608

sub83800-48U60

main83800-48S60iAGL2#201509-201608

sub83800-48S61

main83800-48T00iGYL25201510-201608

sub83800-48T01

main83800-48V00iAGL2#201608-201610

sub83800-48V01

main83800-48V01iAGL2#201611-201707

sub83800-48V02

main83800-48V02iAGL2#201708-201709

DENSO

sub83800-48V03

main83800-48V03iAGL2#201709-201712

DENSO

main83800-48V40iGYL25201608-201610

sub83800-48V41

main83800-48V41iGYL25201611-201707

sub83800-48V42

main83800-48V42iGYL25201708-201712

DENSO

main83800-4D080iGGL2#201712-201908

DENSO

main83800-4D110iAGL2#201712-201908

DENSO

main83800-4D160iGYL25201712-201904

DENSO

main83800-4D161iGYL25201904-201908

DENSO

main83800-4D220iGGL2#201708-201709

DENSO

sub83800-4D240

main83800-4D240iGGL2#201709-201712

DENSO

main83800-4D290iGGL2#201908-202007

DENSO

main83800-4D320iAGL2#201908-202007

DENSO

main83800-4D350iGYL25201908-202007

DENSO

sub83800-4D351

main83800-4DA00iGGL2#202007-202012

DENSO

sub83800-4DA01

main83800-4DA01iGGL2#202101-202110

DENSO

main83800-4DA02iGGL2#202110

DENSO

main83800-4DA30iAGL2#..GEN202007-202012

DENSO

sub83800-4DA31

main83800-4DA31iAGL2#..GEN202101-202107

DENSO

main83800-4DA50iAGL2#..GEN202007-202012

DENSO

sub83800-4DA51

main83800-4DA50iAGL2#..GEN202007-202012

DENSO,EXHAUST EMISSION CONTROL-EURO6 C

sub83800-4DA51

main83800-4DA51iAGL2#..CHI202101-202109

DENSO

sub83800-4DE60

main83800-4DA70iGYL25202007-202009

DENSO

sub83800-4DA71

main83800-4DA71iGYL25202010-202012

DENSO

sub83800-4DA72

main83800-4DA72iGYL25202101-202106

DENSO

sub83800-4DE90

main83800-4DE40iAGL2#..GEN202107

DENSO

main83800-4DE60iAGL2#..CHI202109-202110

DENSO

main83800-4DE61iAGL2#..LHD..GEN202110

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

main83800-4DE61iAGL2#..CHI202110

DENSO

main83800-4DE61iAGL2#..CHI202110

DENSO,EXHAUST EMISSION CONTROL-EURO6 C

main83800-4DE61iAGL2#..CHI202110

DENSO,EXHAUST EMISSION CONTROL-EURO6 D

main83800-4DE90iGYL25..GCC,GEN202107-202110

DENSO

main83800-4DE91iGYL25202110

DENSO

83100GGLASS, COMBINATION METER

main83852-48S30iGYL25;AGL2#..CHI201509-202107

main83852-48S30iGYL25;AGL2#..CHI202107-202109

EXHAUST EMISSION CONTROL-CHINA 6

main83852-48S30iGYL25;AGL2#..CHI202107-202109

EXHAUST EMISSION CONTROL-EURO6 C

main83852-48S30iGYL25;AGL2#..CHI202107-202109

EXHAUST EMISSION CONTROL-EURO6 D

9356855016

main93568-55016

3 parts on this diagram · 3 diagrams in section
