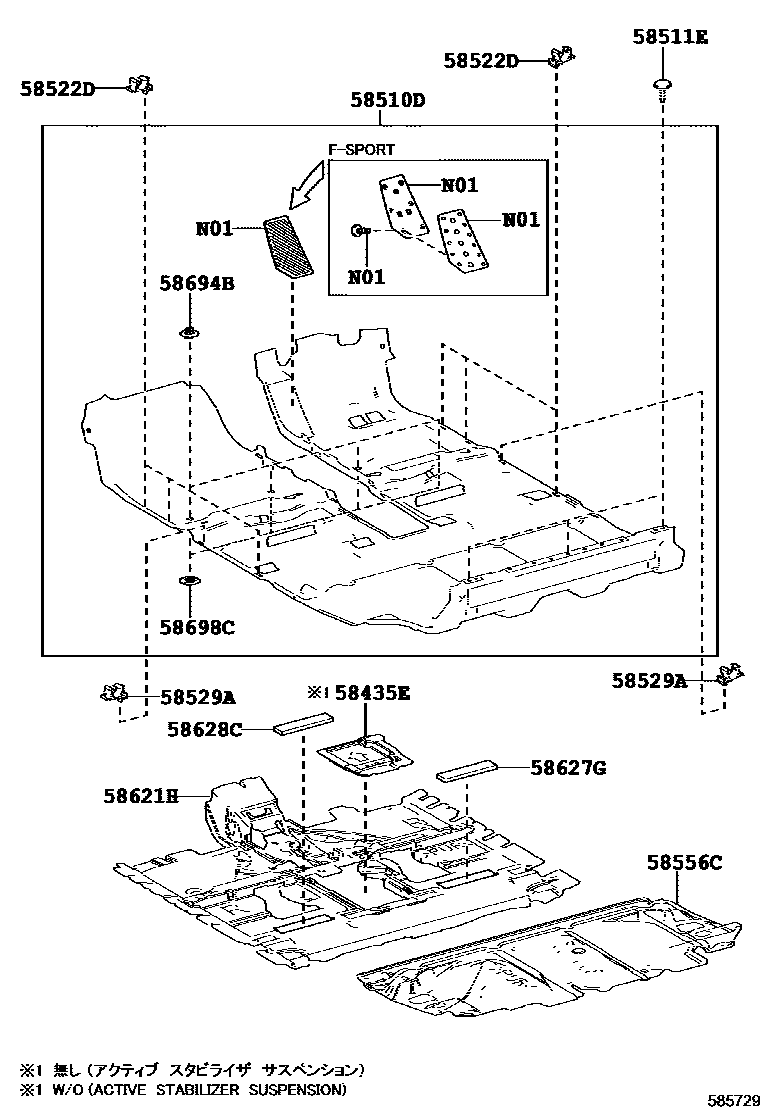

Toyota LEXUS RX SERIES — MAT & CARPET
58435ESILENCER, FRONT FLOOR, CENTER
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM04
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
58511ECLIP(FOR FRONT FLOOR MAT)
58522DHOOK, FLOOR CARPET, NO.2
58529AHOOK, FLOOR CARPET, NO.3
58556CSILENCER, REAR FLOOR
58621HPAD, FRONT FLOOR SILENCER
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
11 parts on this diagram · 4 diagrams in section
