Toyota LEXUS RX SERIES — INTERIOR LAMP

0001 1 0002 1 0003 1

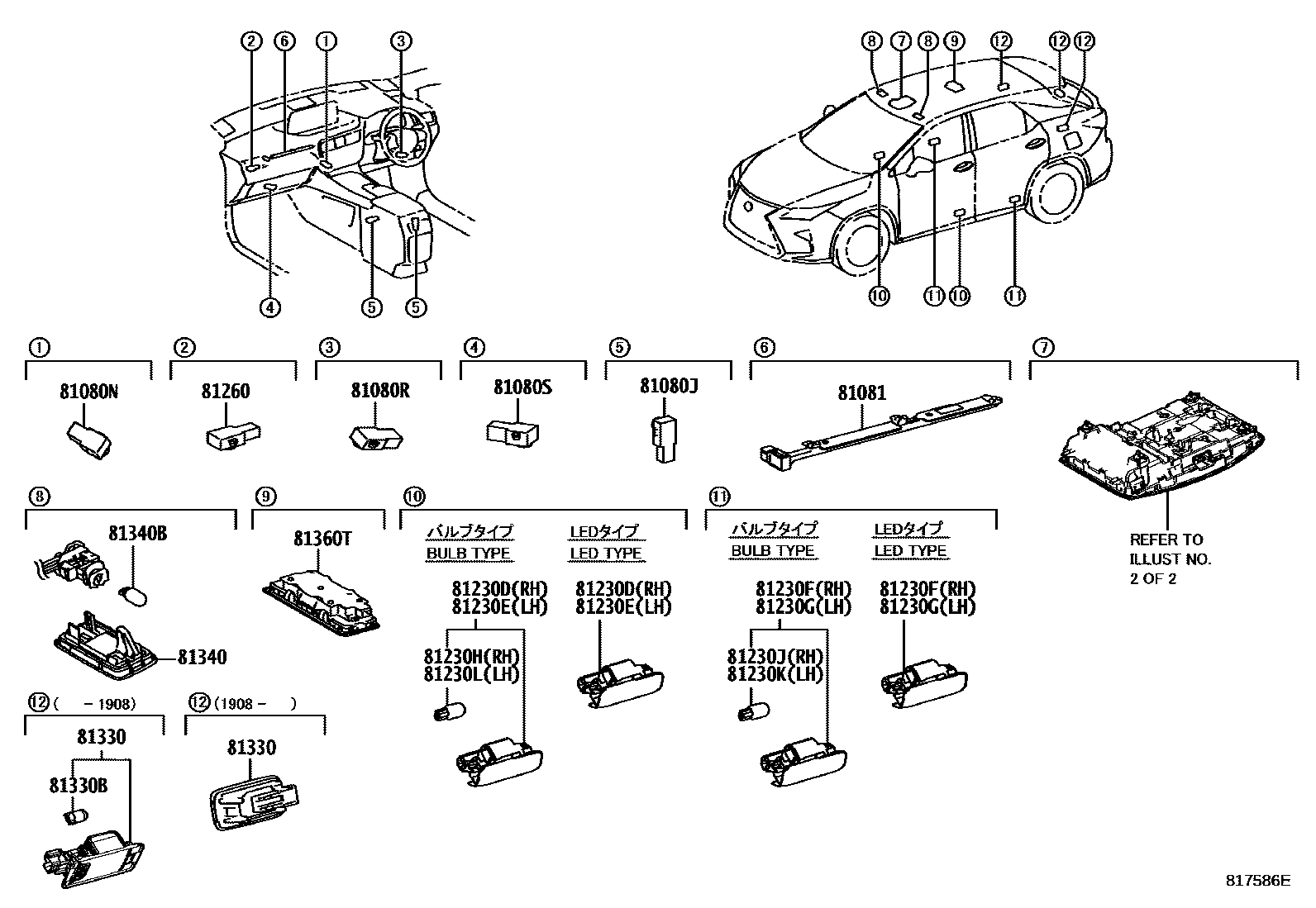

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-22040iAGL2#,GGL2#,GYL25201509-201610

main81080-33290iAGL2#,GGL2#,GYL25201705-201908

main81080-58100iAGL2#,GGL2#,GYL25201611-201704

sub81080-33290

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-30010iAGL2#,GGL2#,GYL25201509-201908

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-22040iAGL2#,GGL2#,GYL25201509-201611

main81080-33290iAGL2#,GGL2#,GYL25201704-201908

main81080-58100iAGL2#,GGL2#,GYL25201612-201703

sub81080-33290

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-22040iAGL2#,GGL2#,GYL25201509-201611

main81080-33290iAGL2#,GGL2#,GYL25201704-201908

main81080-58100iAGL2#,GGL2#,GYL25201612-201703

sub81080-33290

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-48010

main81081-48011

main81081-48020

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-30200iAGL2#,GGL2#,GYL25201509-201908

BULB TYPE

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-30200iAGL2#,GGL2#,GYL25201509-201908

BULB TYPE

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-30200iAGL2#,GGL2#,GYL25201509-201908

BULB TYPE

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81230-30200iAGL2#,GGL2#,GYL25201509-201908

BULB TYPE

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

main90981-12010iAGL2#,GGL2#,GYL25201509-201908

12V 5W

81230JBULB(FOR REAR DOOR COURTESY LAMP RH)

main90981-12010iAGL2#,GGL2#,GYL25201904-201908

12V 5W,SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)

main90981-12010iAGL2#,GGL2#,GYL25201509-201908

12V 5W

main90981-12010iAGL2#,GGL2#,GYL25201904-201908

12V 5W,SPEAKER-15SPEAKER & *MAR

main90981-12010iAGL2#,GGL2#,GYL25201904-201908

12V 5W,SPEAKER-12SPEAKER

main90981-12010iAGL2#,GGL2#,GYL25201904-201908

12V 5W,SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR

main90981-12010iAGL2#,GGL2#,GYL25201904-201908

12V 5W,SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER

81230KBULB(FOR REAR DOOR COURTESY LAMP LH)

main90981-12010iAGL2#,GGL2#,GYL25201509-201904

12V 5W

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

main90981-12010iAGL2#,GGL2#,GYL25201509-201908

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-33290iAGL2#,GGL2#,GYL25201705-201908

main81080-58100iAGL2#,GGL2#,GYL25201509-201704

sub81080-33290

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iAGL2#,GGL2#,GYL25201509-201908

main81360-78020iAGL2#,GGL2#,GYL25201908

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAGL2#,GGL2#,GYL25201509-201908

12V 5W

81340LAMP ASSY, VANITY

main81340-30110iAGL2#,GGL2#,GYL25201509-201908

81340BBULB (FOR VANITY LAMP)

main90981-11062iAGL2#,GGL2#,GYL25201509-201908

12V 8W

81360TLAMP ASSY, SPOT

main81360-48120-A0iAGL20,GYL25..CHI201509-201908

ECRU,TRIM00,01,02,03,04,5#,6#

sub81360-48120

main81360-48120-A0iAGL2#,GGL2#,GYL25201509-201908

ECRU,TRIM0#,5#,6#

sub81360-48120

main81360-48120-B1iAGL20..RHD;GGL25,GYL25..GCC201908

MOON STONE,TRIM1#,20,21,22,23,24,29,4#,8#

sub81360-48120

main81360-48120-B1iAGL20,GYL25..CHI201509-201908

MOON STONE,TRIM2#,4#

sub81360-48120

main81360-48120-B1iAGL20,GYL25..CHI201509-201908

MOON STONE,TRIM20,21,22,23,24,4#

sub81360-48120

main81360-48120-B1iAGL25..CHI;AGL20..LHD..GEN;GGL25,GYL25..RHD201908

MOON STONE,TRIM1#,20,21,22,23,24,4#,8#

sub81360-48120

main81360-48120-C0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908-201909

BLACK,TRIM25,26,27,28,3#

sub81360-48120

main81360-48120-C0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201509-201908

BLACK,TRIM05,06,25,26,3#

sub81360-48120

main81360-48120-C1iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201909

BLACK,TRIM25,26,27,28,3#

sub81360-48120
