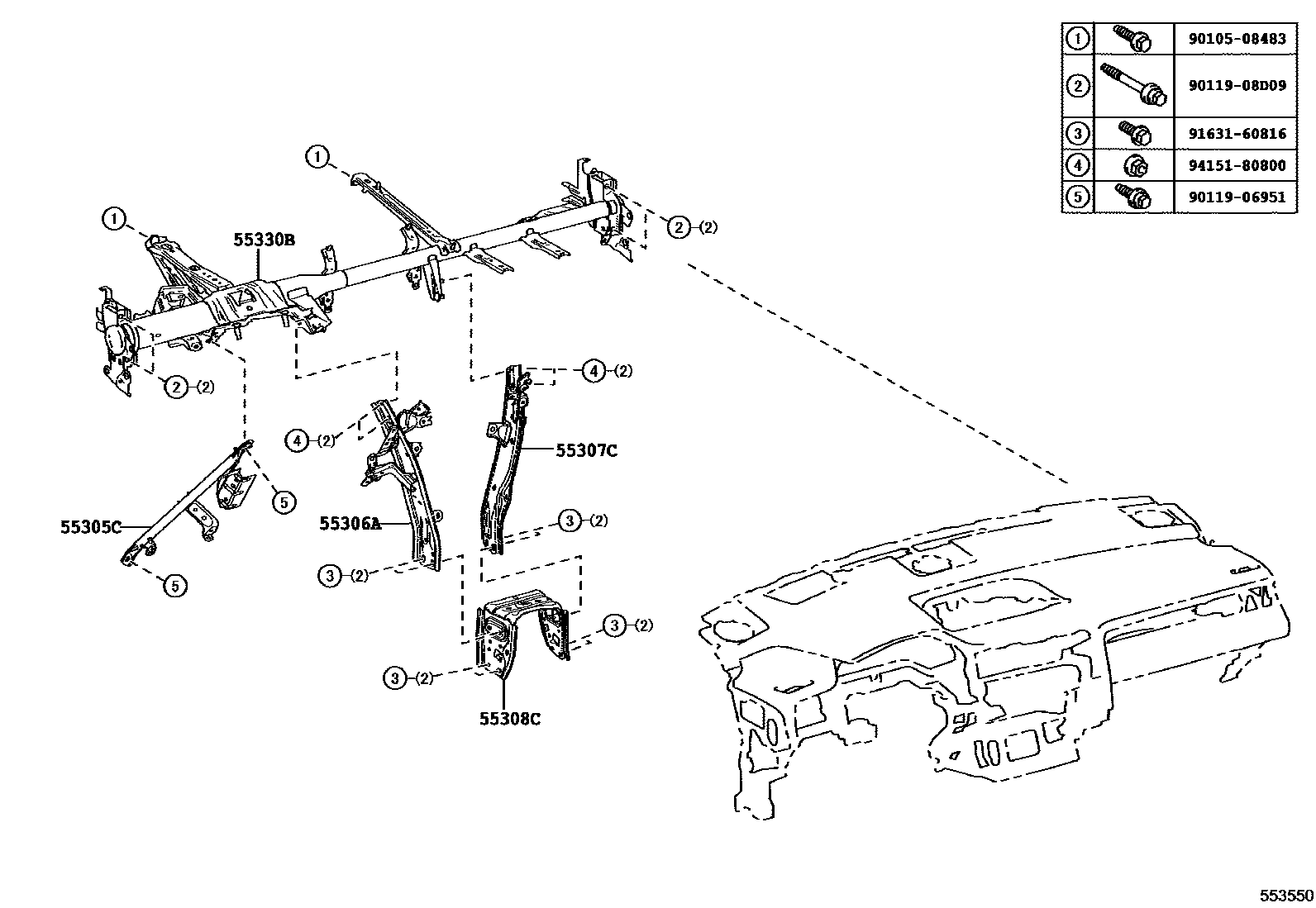

Toyota LEXUS RX SERIES — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1PASSENGER SIDE 0010 1PASSENGER SIDE 0011 1 0012 1 0013 1 0014 1 0015 1DRIVER SIDE 0016 1DRIVER SIDE 0017 1CENTER 0018 1CENTER 0019 1PASSENGER SIDE 0020 1PASSENGER SIDE

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-48010iAGL2#,GGL2#,GYL25..LHD201509-201908

main55305-48020iAGL2#,GGL2#,GYL25..RHD201509-201908

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48160iAGL2#,GGL2#,GYL25..LHD201509-201908

main55306-48170iAGL2#,GGL2#,GYL25..RHD201509-201908

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48160iAGL2#,GGL2#,GYL25..LHD201509-201908

main55307-48170iAGL2#,GGL2#,GYL25..RHD201509-201908

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48090iAGL2#,GGL2#,GYL25201509-201908

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48220iAGL2#,GGL2#,GYL25..LHD201509-201908

main55330-48230iAGL2#,GGL2#,GYL25..RHD201509-201908

main55330-48250iAGL2#,GGL2#,GYL25..LHD201908

main55330-48260iAGL2#,GGL25,GYL25..RHD201908

9010508483

main90105-08483

9011906951

main90119-06951

9011908D09

main90119-08D09

9163160816

main91631-60816

9415180800

main94151-80800

10 parts on this diagram · 20 diagrams in section
