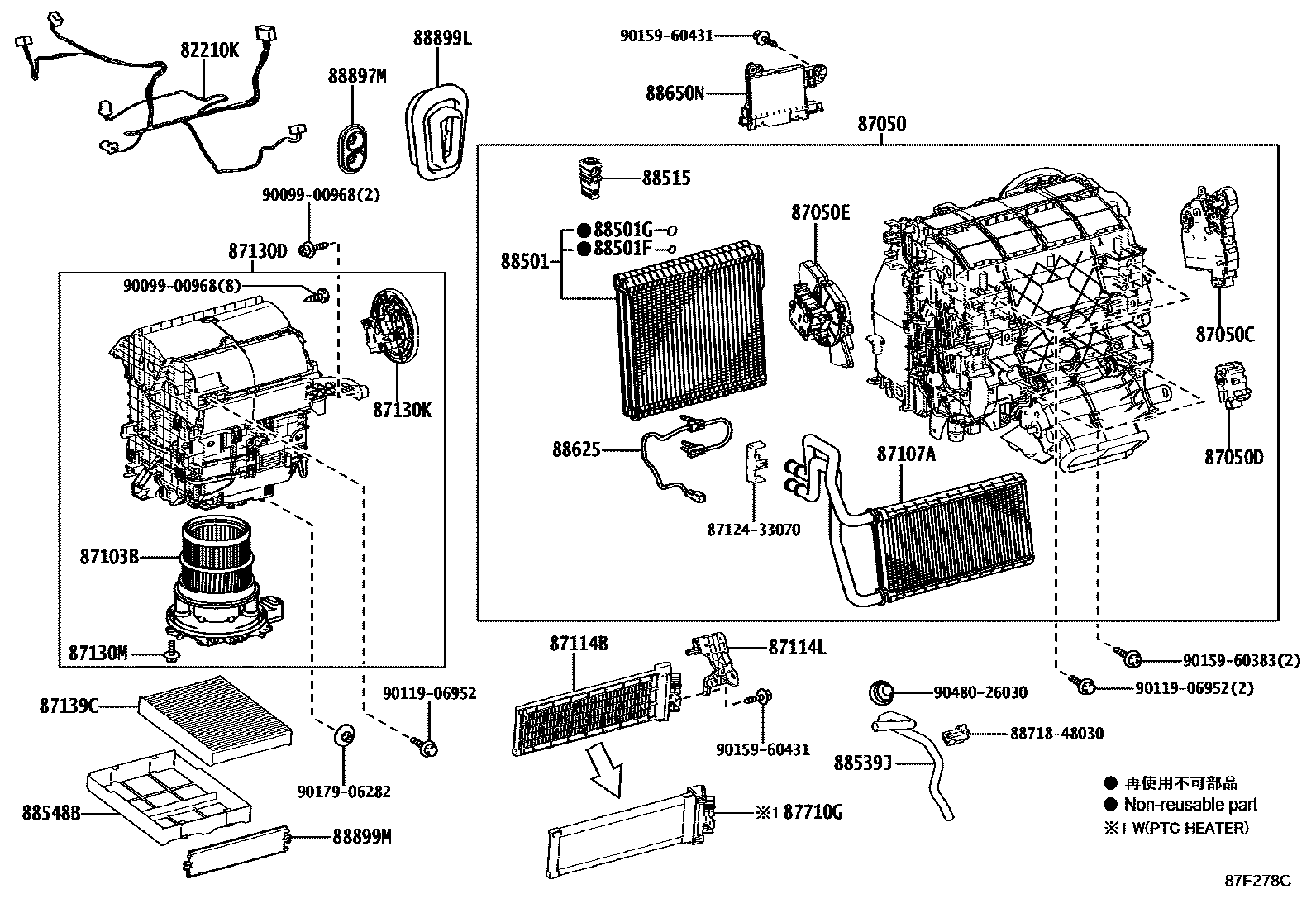

Toyota LEXUS RX SERIES — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87114LCOVER, HEATER, NO.2
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER
87710GQUICK HEATER ASSY
COLD AREA SPEC
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
COLD AREA SPEC&MINUS ION GENERATOR-WITH
sub88650-48A11
COLD AREA SPEC&MINUS ION GENERATOR-WITH
sub88650-48A91
COLD AREA SPEC&MINUS ION GENERATOR-WITH
sub88650-48D41
COLD AREA SPEC&MINUS ION GENERATOR-WITH
sub88650-48E21
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
8712433070CLAMP, HEATER
main87124-33070
8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48030
9009900968
main90099-00968
9011906952
main90119-06952
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
9048026030
main90480-26030
33 parts on this diagram · 9 diagrams in section
