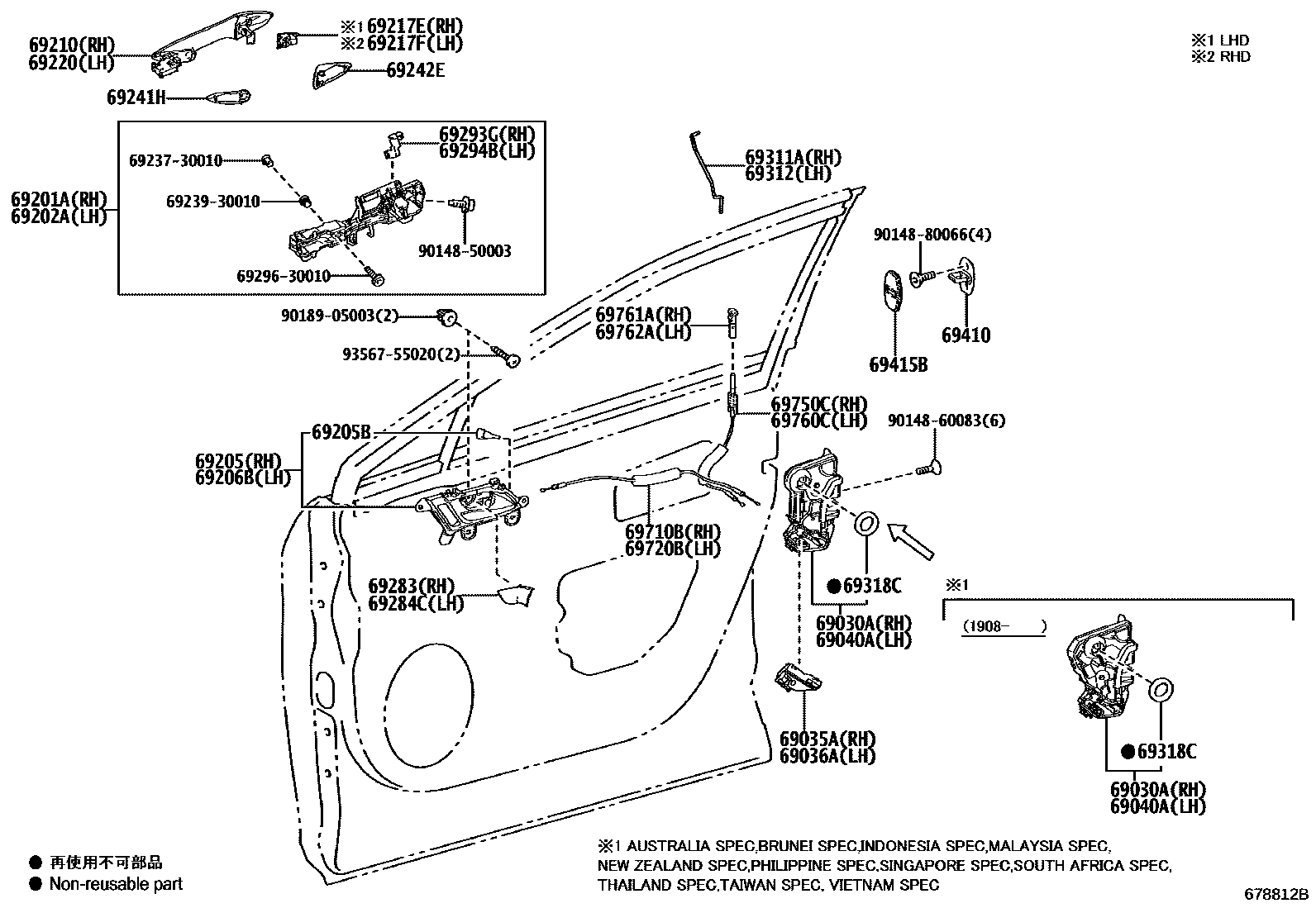

Toyota LEXUS RX SERIES — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
sub67605-48031
BLACK,TRIM05,06,2#,3#,4#
sub67605-48031
NOBLE BROWN,TRIM04,5#,6#
sub67605-48031
NOBLE BROWN,TRIM0#,5#,6#
sub67605-48031
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP),BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-12SPEAKER,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
AUSTRALIA SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,6#,8#
AUSTRALIA SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM02,04,1#,2#,6#,8#
NEW ZEALAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM02,04,1#,2#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM04,1#,2#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM02,04,1#,2#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM02,04,1#,2#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM04,1#,2#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM02,04,1#,2#,6#,8#
BLACK,TRIM04,1#,2#,6#,8#
BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM04,2#
BLACK,TRIM02,04,1#,2#,6#,8#
BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM04,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
NEW ZEALAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM04,5#
NOBLE BROWN,TRIM0#
NOBLE BROWN,TRIM0#,5#
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP),NOBLE BROWN,TRIM04
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM04
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM04
AUSTRALIA SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,NOBLE BROWN,TRIM04
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM04
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM04
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM04
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM04,2#
BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,2#
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM04,2#
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM04,2#
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP),BLACK,TRIM04,1#,2#,6#,8#
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-12SPEAKER,BLACK,TRIM04,1#,2#,6#,8#
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM04,1#,2#,6#,8#
AUSTRALIA SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
AUSTRALIA SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
NEW ZEALAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,BLACK,TRIM02,04,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM04,1#,2#,6#,8#
BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM02,04,1#,2#,6#,8#
BLACK,TRIM04,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,6#,8#
BLACK,TRIM0#,2#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#
NOBLE BROWN,TRIM04
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
NEW ZEALAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
AUSTRALIA SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM04
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM04
TAIWAN SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATIONLAMP),NOBLE BROWN,TRIM04
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM04
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM04
DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#
NOBLE BROWN,TRIM04,5#
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,NOBLE BROWN,TRIM04
HONG KONG SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
THAILAND SPEC&22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-9SPEAKER,NOBLE BROWN,TRIM04
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
HEAT BLUE CONTRAST LAYERI,8X1
sub69210-48110
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48070
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM00,01,02,03,04,2#,3#,4#,5#,6#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,2#,3#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM04
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
38 parts on this diagram · 1 diagram in section
