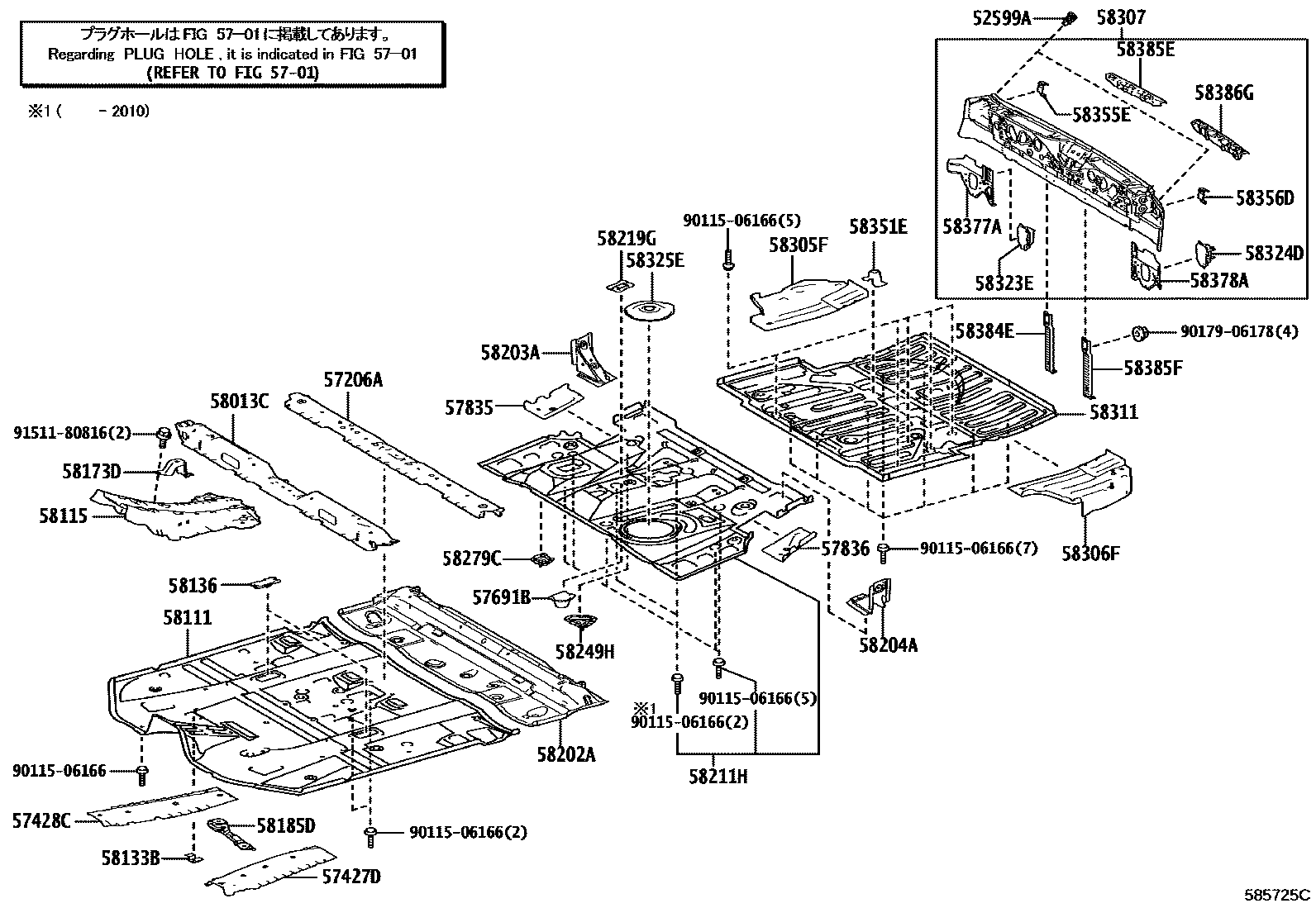

Toyota LEXUS RX SERIES — FLOOR PAN & LOWER BACK PANEL
52599ASTOPPER, REAR BUMPER, UPPER
5701
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58013CSUPPORT SUB-ASSY, SHIFT & SELECT LEVER
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58173DBRACKET, COMPUTER MOUNTING, NO.4
58185DPLATE, ACCELERATOR PEDAL MOUNTING
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58219GPATCH, SEAT FLOOR
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58355EBRACKET, REAR BUMPER ARM, RH
58356DBRACKET, REAR BUMPER ARM, LH
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
58384EGUSSET, LOWER BACK PANEL, NO.1 RH
58385EBRACKET, REAR BUMPER COVER, RH
58385FGUSSET, LOWER BACK PANEL, NO.1 LH
58386GBRACKET, REAR BUMPER COVER, LH
9011506166
main90115-06166
9017906178
main90179-06178
9151180816
main91511-80816
41 parts on this diagram · 6 diagrams in section
