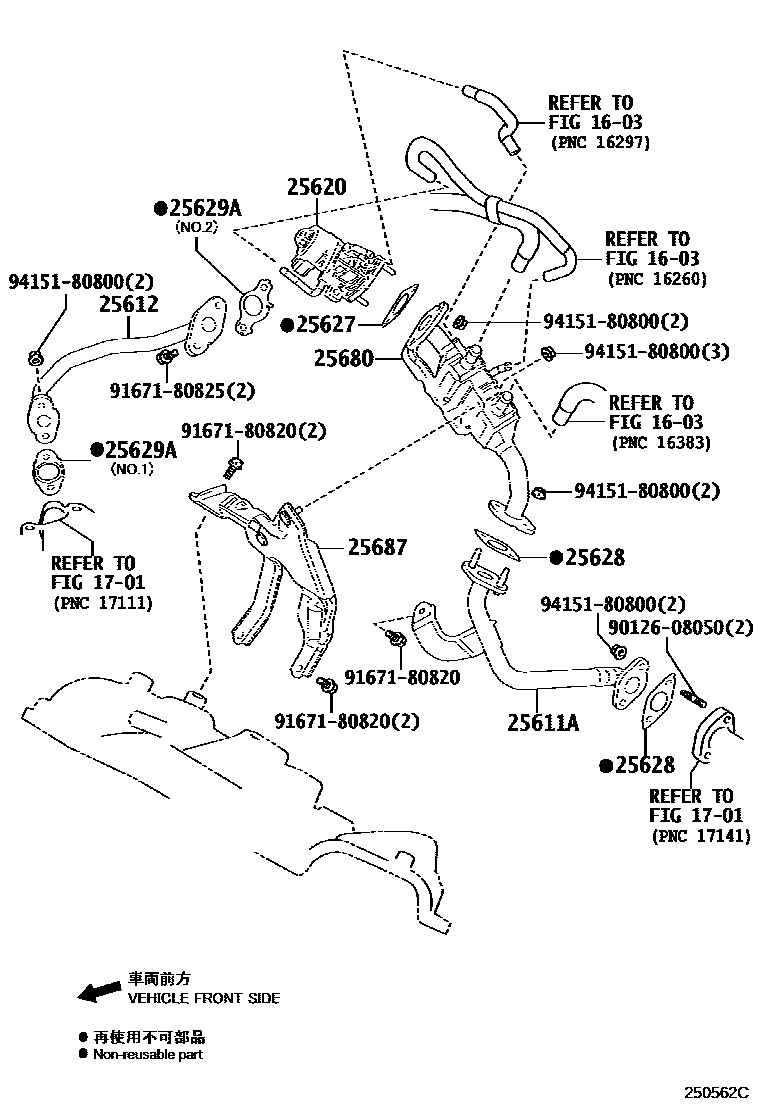

Toyota LEXUS RX SERIES — EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25611APIPE, EGR, NO.1
25612PIPE, EGR, NO.2
25620VALVE ASSY, EGR
MIDDLE AMERICA SPEC
PERU, BOLIVIA SPEC
GUATEMALA, HONDURAS SPEC
COSTA RICA SPEC
ARUBA, CURACAO SPEC
EL SALVADOR SPEC
SOUTH AMERICA SPEC
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25629AGASKET, EGR PIPE, NO.2
NO.1
NO.2
25680COOLER ASSY, EGR
MIDDLE AMERICA SPEC
PERU, BOLIVIA SPEC
GUATEMALA, HONDURAS SPEC
COSTA RICA SPEC
ARUBA, CURACAO SPEC
EL SALVADOR SPEC
SOUTH AMERICA SPEC
25687BRACKET, EGR COOLER, NO.1
9012608050
main90126-08050
9167180820
main91671-80820
9167180825
main91671-80825
9415180800
main94151-80800
14 parts on this diagram · 1 diagram in section
