Toyota LEXUS RX SERIES — ARMREST & VISOR

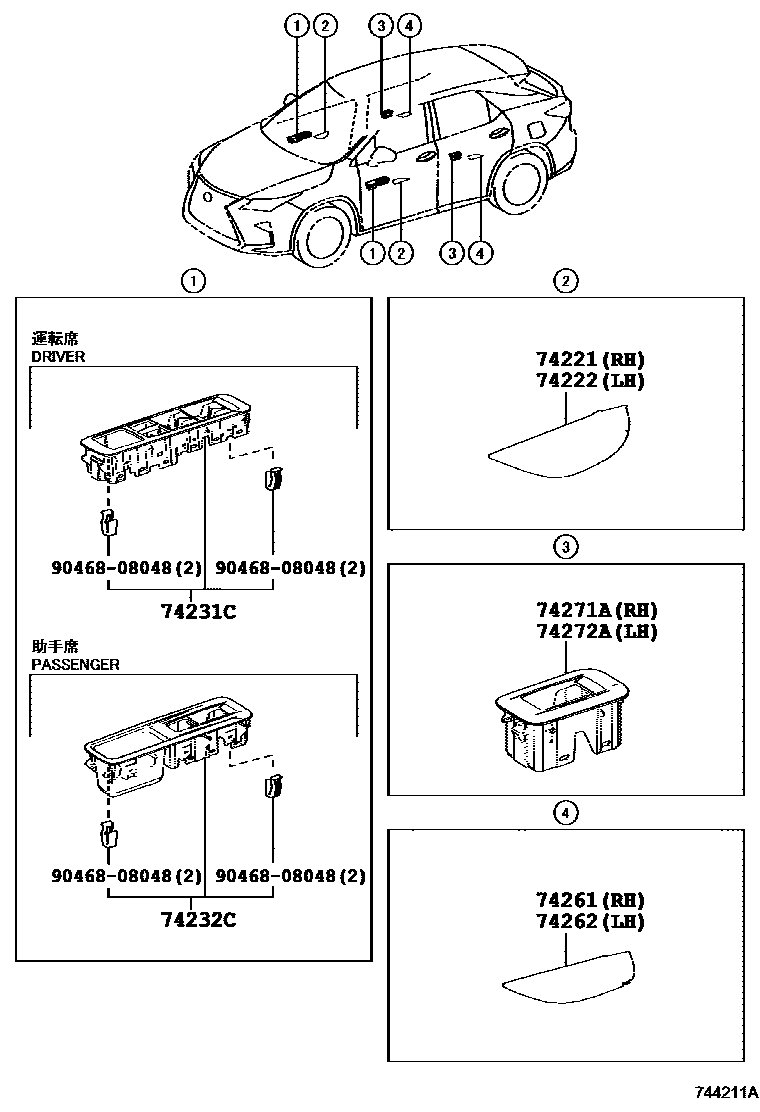

Parts diagram
74221COVER, DOOR ARMREST, RH
main74221-48040-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main74221-48040-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#
main74221-48040-C0i201509-201908
BLACK,TRIM2#,4#
main74221-48040-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main74221-48040-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
main74221-48040-C0i201908-202007
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
main74221-48040-C0i201908-202007
BLACK,TRIM02,04,1#,2#,4#,5#,6#,8#
main74221-48040-E0i201509-201908
NOBLE BROWN,TRIM0#,5#,6#
main74221-48040-E0i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
main74221-48040-E0i201908-202007
NOBLE BROWN,TRIM04
74222COVER, DOOR ARMREST, LH
main74222-48040-C0i201908-202007
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
main74222-48040-C0i201509-201908
BLACK,TRIM2#,4#
main74222-48040-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#
main74222-48040-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main74222-48040-C0i201908-202007
BLACK,TRIM02,04,1#,2#,4#,5#,6#,8#
main74222-48040-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
main74222-48040-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main74222-48040-E0i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
main74222-48040-E0i201509-201908
NOBLE BROWN,TRIM0#,5#,6#
main74222-48040-E0i201908-202007
NOBLE BROWN,TRIM04
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
main74231-48190i201509-201910
sub74231-48191
main74231-48191i201911
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
main74232-48180i201509-201910
sub74232-48181
main74232-48181i201911
74261COVER, REAR DOOR ARMREST, RH
main74261-48030-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main74261-48030-C0i201509-201908
BLACK,TRIM2#,4#
main74261-48030-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#
main74261-48030-C0i201908-202007
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
main74261-48030-C0i201908-202007
BLACK,TRIM02,04,1#,2#,4#,5#,6#,8#
main74261-48030-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
main74261-48030-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main74261-48030-E0i201908-202007
NOBLE BROWN,TRIM04
main74261-48030-E0i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
main74261-48030-E0i201509-201908
NOBLE BROWN,TRIM0#,5#,6#
74262COVER, REAR DOOR ARMREST, LH
main74262-48030-C0i201908-202007
BLACK,TRIM02,04,1#,2#,4#,5#,6#,8#
main74262-48030-C0i201509-201908
BLACK,TRIM2#,4#
main74262-48030-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#
main74262-48030-C0i201908-202007
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
main74262-48030-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main74262-48030-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
main74262-48030-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main74262-48030-E0i201908-202007
NOBLE BROWN,TRIM04
main74262-48030-E0i201509-201908
NOBLE BROWN,TRIM0#,5#,6#
main74262-48030-E0i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-48110i201509-201910
sub74271-48111
main74271-48111i201911
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74271-48110i201509-201910
sub74271-48111
main74271-48111i201911
9046808048
main90468-08048

9 parts on this diagram · 2 diagrams in section
