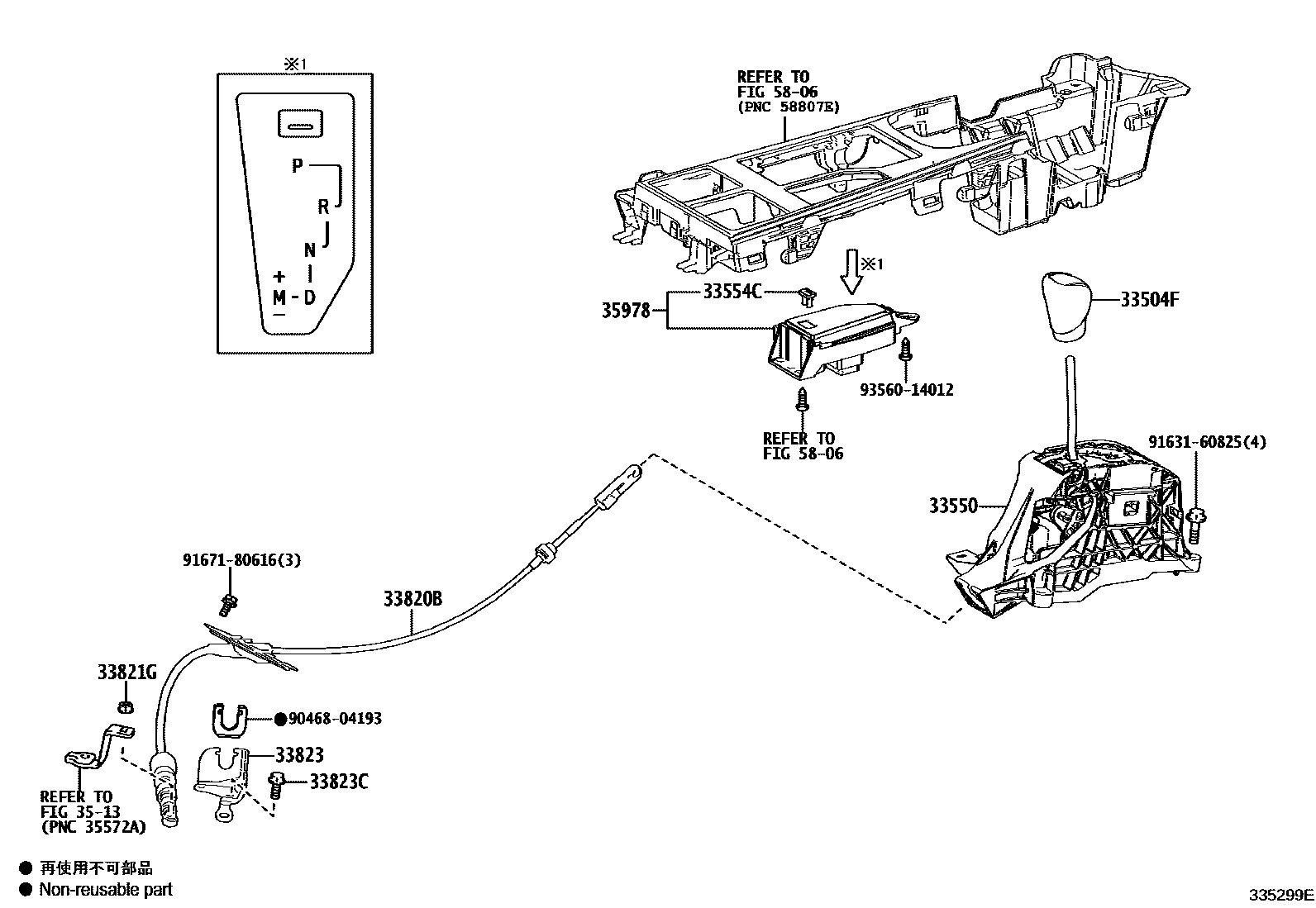

Toyota LEXUS RX SERIES — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48110-C0iAGL2#,GGL25,GYL25..STD201908-202007

BLACK,TRIM0#,1#,2#,4#,5#,6#,8#

main33504-48110-C0iAGL25,GGL25,GYL25201509-201908

BLACK,TRIM2#,4#

main33504-48110-C0iAGL20201509-201908

BLACK,TRIM05,06,2#,3#,4#

main33504-48110-C0iGYL25..ECO202007

BLACK,TRIM0#,2#,4#,5#,6#

main33504-48110-C0iGYL25..ECO201908-202007

BLACK,TRIM04,2#,4#,5#,6#

main33504-48110-E0iGYL25..ECO201908-202007

NOBLE BROWN,TRIM04

main33504-48110-E0iAGL25,GGL25,GYL25..STD201509-201908

NOBLE BROWN,TRIM0#,5#,6#

main33504-48110-E0iAGL25,GGL25,GYL25..STD201509-201908

NOBLE BROWN,TRIM00,01,02,03,04,5#,6#

main33504-48110-E0iGYL25..ECO201510-201908

NOBLE BROWN,TRIM0#,5#

main33504-48110-E0iGYL25..ECO201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-48531iAGL2#,GGL25,GYL25..LHD201509-201908

main33550-48541iAGL2#,GYL25..RHD201509-201908

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-48090iAGL2#,GGL25,GYL25201509-201908

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-48310iGGL25201509-201908

main33820-48370iAGL2#201509-201908

main33820-48380iGYL25201510-201908

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iAGL2#,GGL25,GYL25201509-201908

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-48100iGYL25201510-201908

main33823-48120iGGL25201509-201908

main33823-48130iAGL2#201509-201908

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80816iAGL2#,GGL25,GYL25201509-201908

3513

35978INDICATOR, SHIFT POSITION

main35978-48010iAGL2#,GGL25201509-201908

main35978-48020iAGL2#..RHD201509-201908

main35978-48030iGYL25..LHD201510-201908

main35978-48040iGYL25..RHD201510-201908

5806

9046804193

main90468-04193

9163160825

main91631-60825

9167180616

main91671-80616

9356014012

main93560-14012

14 parts on this diagram · 5 diagrams in section
