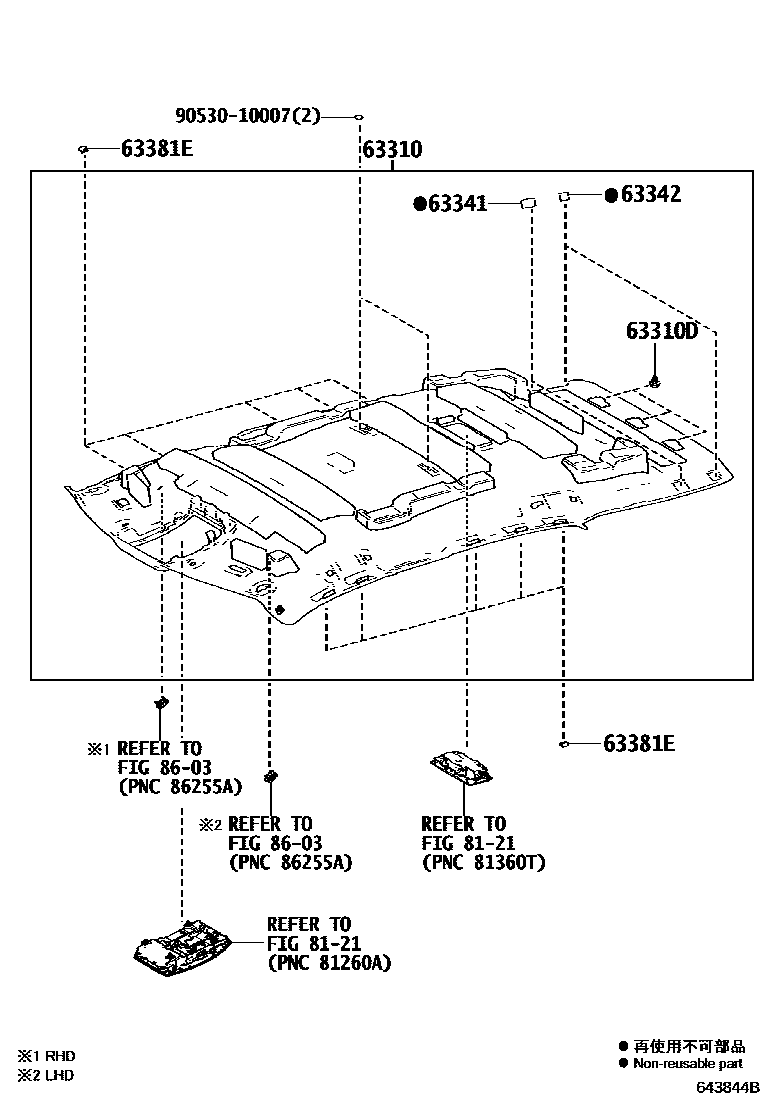

Toyota LEXUS RX SERIES — ROOF HEADLINING & SILENCER PAD

0001 1 0002 1MOON ROOF 0003 1PANORAMA ROOF

63310HEADLINING ASSY, ROOF

main63310-48500-A0iGYL25..RHD..ECO201510-201808

ECRU,TRIM0#,5#,6#,REFER86-03:PNC86255A

main63310-48500-A0iAGL2#,GYL25..RHD..STD201509-201808

ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A

main63310-48500-B1iGYL25..RHD..ECO201510-201808

MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A

main63310-48500-B1iAGL2#,GYL25..RHD..STD201509-201808

MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A

main63310-48500-C0iAGL2#,GYL25..RHD..STD201509-201808

BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A

main63310-48501-A0iGYL25..RHD..ECO201808-201908

ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A

main63310-48501-A0iAGL2#,GYL25..RHD..STD201808-201908

ECRU,TRIM0#,5#,REFER86-03:PNC86255A

main63310-48501-A0iGYL25..RHD201908

ECRU,TRIM0#,5#,6#

main63310-48501-B1iAGL2#,GYL25..RHD..STD201808-201908

MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A

main63310-48501-B1iGYL25..RHD..STD201908

MOON STONE,TRIM1#,20,21,22,23,24,4#,8#

main63310-48501-B1iGYL25..RHD..ECO201908

MOON STONE,TRIM2#,4#

main63310-48501-B1iGYL25..RHD..ECO201808-201908

MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A

main63310-48501-C0iGYL25..RHD..STD201908

BLACK,TRIM25,26,27,28,3#

main63310-48501-C0iAGL2#,GYL25..RHD..STD201808-201908

BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A

main63310-48570-A0iGYL25..LHD..ECO201510-201808

ECRU,TRIM0#,5#,6#,REFER86-03:PNC86255A

main63310-48570-A0iAGL2#,GGL25,GYL25..LHD..STD201509-201808

ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A

main63310-48570-B1iGYL25..LHD..ECO201510-201808

MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A

main63310-48570-B1iAGL2#,GGL25,GYL25..LHD..STD201509-201808

MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A

main63310-48570-C0iAGL2#,GGL25,GYL25..LHD..STD201509-201808

BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A

main63310-48571-A0iAGL2#,GGL25,GYL25..LHD..STD201808-201908

ECRU,TRIM0#,5#,REFER86-03:PNC86255A

main63310-48571-A0iAGL2#,GGL25,GYL25..LHD..STD201808-201908

ECRU,TRIM00,01,02,03,04,5#,6#,REFER86-03:PNC86255A

main63310-48571-A0iAGL2#,GGL25,GYL25..LHD201908

ECRU,TRIM0#,5#,6#

main63310-48571-B1iGYL25..LHD..ECO201808-201908

MOON STONE,TRIM2#,4#,REFER86-03:PNC86255A

main63310-48571-B1iGYL25..LHD..ECO201808-201908

MOON STONE,TRIM20,21,22,23,24,4#,REFER86-03:PNC86255A

main63310-48571-B1iAGL2#,GGL25,GYL25..LHD..STD201908

MOON STONE,TRIM1#,20,21,22,23,24,4#,8#

main63310-48571-B1iAGL2#,GGL25,GYL25..LHD..STD201908

MOON STONE,TRIM2#,4#

main63310-48571-C0iAGL2#,GGL25,GYL25..LHD..STD201908

BLACK,TRIM25,26,27,28,3#

main63310-48571-C0iAGL2#,GGL25,GYL25..LHD..STD201808-201908

BLACK,TRIM05,06,25,26,3#,REFER86-03:PNC86255A

63310DCLIP, ROOF HEADLINING

main90467-09240iAGL2#,GGL25,GYL25201509-202111

main90467-09245iAGL2#,GGL25,GYL25202112

63341PAD, ROOF SILENCER, NO.1

main62641-48010iAGL2#,GGL25,GYL25201509-202112

main62642-48010iAGL2#,GGL25,GYL25202112

63342PAD, ROOF SILENCER, NO.2

main62642-48010iAGL2#,GGL25,GYL25201509-201908

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30120iAGL2#,GGL25,GYL25201509-201908

8121

8603

9053010007

main90530-10007

8 parts on this diagram · 3 diagrams in section
