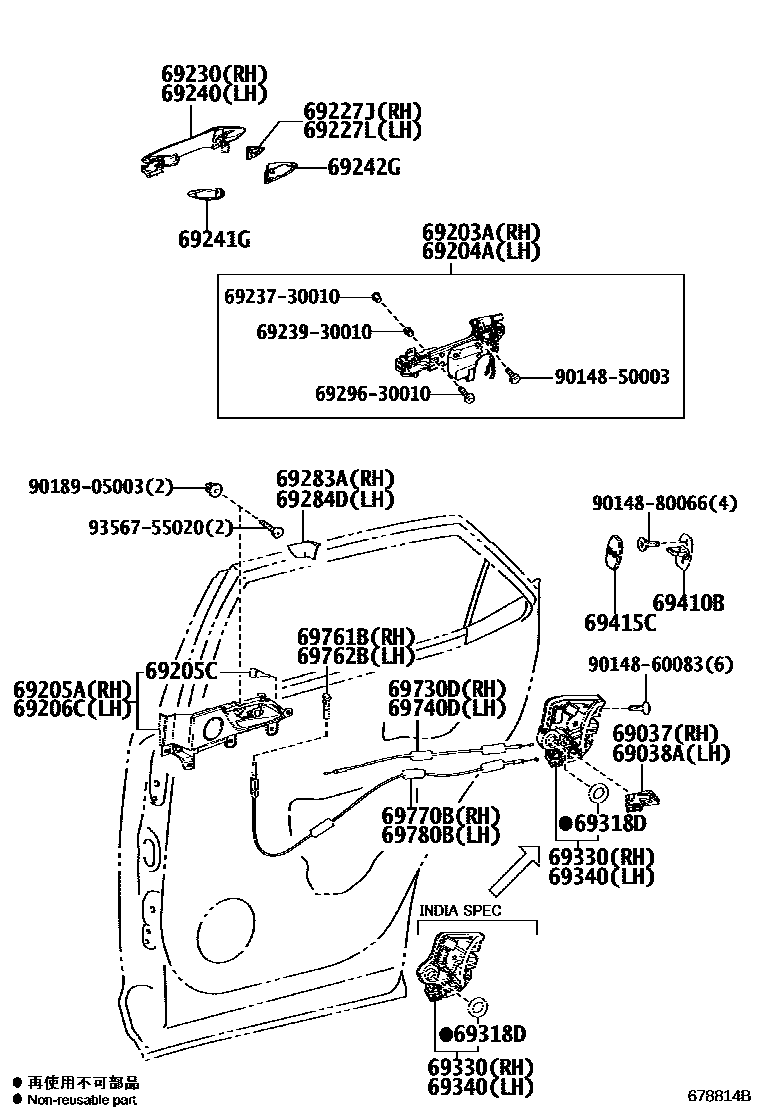

Toyota LEXUS RX SERIES — REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
sub67607-48031
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM05,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#,5#,6#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM00,01,02,03,04
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLEBROWN,TRIM00,01,02,03,04
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,04
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
sub67608-48031
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM05,2#,3#,4#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLEBROWN,TRIM00,01,02,03,04
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM00,01,02,03,04
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NORDIC&BALTIC SPEC,WHITE NOVA GF.,083
WHITE NOVA GF.,083
RUSSIA,BELARUS,KAZAKHSTAN SPEC,WHITE NOVA GF.,083
BALTIC SPEC,WHITE NOVA GF.,083
NORDIC&BALTIC SPEC,SONIC QUARTZ,085
SONIC QUARTZ,085
BALTIC SPEC,SONIC QUARTZ,085
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC QUARTZ,085
BALTIC SPEC,MERCURY GRAY MC.,1H9
NORDIC&BALTIC SPEC,MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
RUSSIA,BELARUS,KAZAKHSTAN SPEC,MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BALTIC SPEC,PLATINUM SILVER ME.,1J4
RUSSIA,BELARUS,KAZAKHSTAN SPEC,PLATINUM SILVER ME.,1J4
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
NORDIC&BALTIC SPEC,SONIC TITANIUM,1J7
BALTIC SPEC,SONIC TITANIUM,1J7
SONIC CHROME,1L1
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC CHROME,1L1
NORDIC&BALTIC SPEC,SONIC CHROME,1L1
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC IRIDIUM,1L2
SONIC IRIDIUM,1L2
NORDIC&BALTIC SPEC,SONIC IRIDIUM,1L2
BLACK,212
BALTIC SPEC,BLACK,212
RUSSIA,BELARUS,KAZAKHSTAN SPEC,BLACK,212
NORDIC&BALTIC SPEC,BLACK,212
GRAPHITE BLACK GF.,223
NORDIC&BALTIC SPEC,GRAPHITE BLACK GF.,223
RUSSIA,BELARUS,KAZAKHSTAN SPEC,GRAPHITE BLACK GF.,223
BALTIC SPEC,GRAPHITE BLACK GF.,223
RUSSIA,BELARUS,KAZAKHSTAN SPEC,RED MC.CS.,3R1
BALTIC SPEC,RED MC.CS.,3R1
RED MC.CS.,3R1
NORDIC&BALTIC SPEC,RED MC.CS.,3R1
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SLEEK ECRU ME.,4U7
SLEEK ECRU ME.,4U7
BALTIC SPEC,SLEEK ECRU ME.,4U7
RUSSIA,BELARUS,KAZAKHSTAN SPEC,AMBER CS.,4X2
NORDIC&BALTIC SPEC,AMBER CS.,4X2
AMBER CS.,4X2
BALTIC SPEC,AMBER CS.,4X2
RUSSIA,BELARUS,KAZAKHSTAN SPEC,ICE ECRU M.M.,4X8
ICE ECRU M.M.,4X8
NORDIC&BALTIC SPEC,ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
NORDIC&BALTIC SPEC,TERRANE KHAKI M.M.,6X4
RUSSIA,BELARUS,KAZAKHSTAN SPEC,TERRANE KHAKI M.M.,6X4
RUSSIA,BELARUS,KAZAKHSTAN SPEC,HEAT BLUE CONTRAST LAYERI,8X1
BALTIC SPEC,HEAT BLUE CONTRAST LAYERI,8X1
HEAT BLUE CONTRAST LAYERI,8X1
NORDIC&BALTIC SPEC,HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
NORDIC&BALTIC SPEC,DEEP BLUE MC.,8X5
BALTIC SPEC,DEEP BLUE MC.,8X5
RUSSIA,BELARUS,KAZAKHSTAN SPEC,DEEP BLUE MC.,8X5
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
AZERBAIJAN SPEC,HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48070
ADRIA(SLOVENIA) SPEC,HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48070
KAZAKHSTAN SPEC,HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48070
WHITE NOVA GF.,083
RUSSIA,BELARUS,KAZAKHSTAN SPEC,WHITE NOVA GF.,083
BALTIC SPEC,WHITE NOVA GF.,083
NORDIC&BALTIC SPEC,WHITE NOVA GF.,083
SONIC QUARTZ,085
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC QUARTZ,085
NORDIC&BALTIC SPEC,SONIC QUARTZ,085
BALTIC SPEC,SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
NORDIC&BALTIC SPEC,MERCURY GRAY MC.,1H9
RUSSIA,BELARUS,KAZAKHSTAN SPEC,MERCURY GRAY MC.,1H9
BALTIC SPEC,MERCURY GRAY MC.,1H9
RUSSIA,BELARUS,KAZAKHSTAN SPEC,PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4
BALTIC SPEC,PLATINUM SILVER ME.,1J4
BALTIC SPEC,SONIC TITANIUM,1J7
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC TITANIUM,1J7
NORDIC&BALTIC SPEC,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
SONIC CHROME,1L1
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC CHROME,1L1
NORDIC&BALTIC SPEC,SONIC CHROME,1L1
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SONIC IRIDIUM,1L2
SONIC IRIDIUM,1L2
NORDIC&BALTIC SPEC,SONIC IRIDIUM,1L2
RUSSIA,BELARUS,KAZAKHSTAN SPEC,BLACK,212
BALTIC SPEC,BLACK,212
BLACK,212
NORDIC&BALTIC SPEC,BLACK,212
GRAPHITE BLACK GF.,223
RUSSIA,BELARUS,KAZAKHSTAN SPEC,GRAPHITE BLACK GF.,223
NORDIC&BALTIC SPEC,GRAPHITE BLACK GF.,223
BALTIC SPEC,GRAPHITE BLACK GF.,223
RUSSIA,BELARUS,KAZAKHSTAN SPEC,RED MC.CS.,3R1
NORDIC&BALTIC SPEC,RED MC.CS.,3R1
RED MC.CS.,3R1
BALTIC SPEC,RED MC.CS.,3R1
BALTIC SPEC,SLEEK ECRU ME.,4U7
RUSSIA,BELARUS,KAZAKHSTAN SPEC,SLEEK ECRU ME.,4U7
SLEEK ECRU ME.,4U7
RUSSIA,BELARUS,KAZAKHSTAN SPEC,AMBER CS.,4X2
BALTIC SPEC,AMBER CS.,4X2
AMBER CS.,4X2
NORDIC&BALTIC SPEC,AMBER CS.,4X2
ICE ECRU M.M.,4X8
NORDIC&BALTIC SPEC,ICE ECRU M.M.,4X8
RUSSIA,BELARUS,KAZAKHSTAN SPEC,ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
NORDIC&BALTIC SPEC,TERRANE KHAKI M.M.,6X4
RUSSIA,BELARUS,KAZAKHSTAN SPEC,TERRANE KHAKI M.M.,6X4
RUSSIA,BELARUS,KAZAKHSTAN SPEC,HEAT BLUE CONTRAST LAYERI,8X1
BALTIC SPEC,HEAT BLUE CONTRAST LAYERI,8X1
HEAT BLUE CONTRAST LAYERI,8X1
NORDIC&BALTIC SPEC,HEAT BLUE CONTRAST LAYERI,8X1
NORDIC&BALTIC SPEC,DEEP BLUE MC.,8X5
DEEP BLUE MC.,8X5
BALTIC SPEC,DEEP BLUE MC.,8X5
RUSSIA,BELARUS,KAZAKHSTAN SPEC,DEEP BLUE MC.,8X5
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
34 parts on this diagram · 1 diagram in section
