Toyota LEXUS RX SERIES — METER

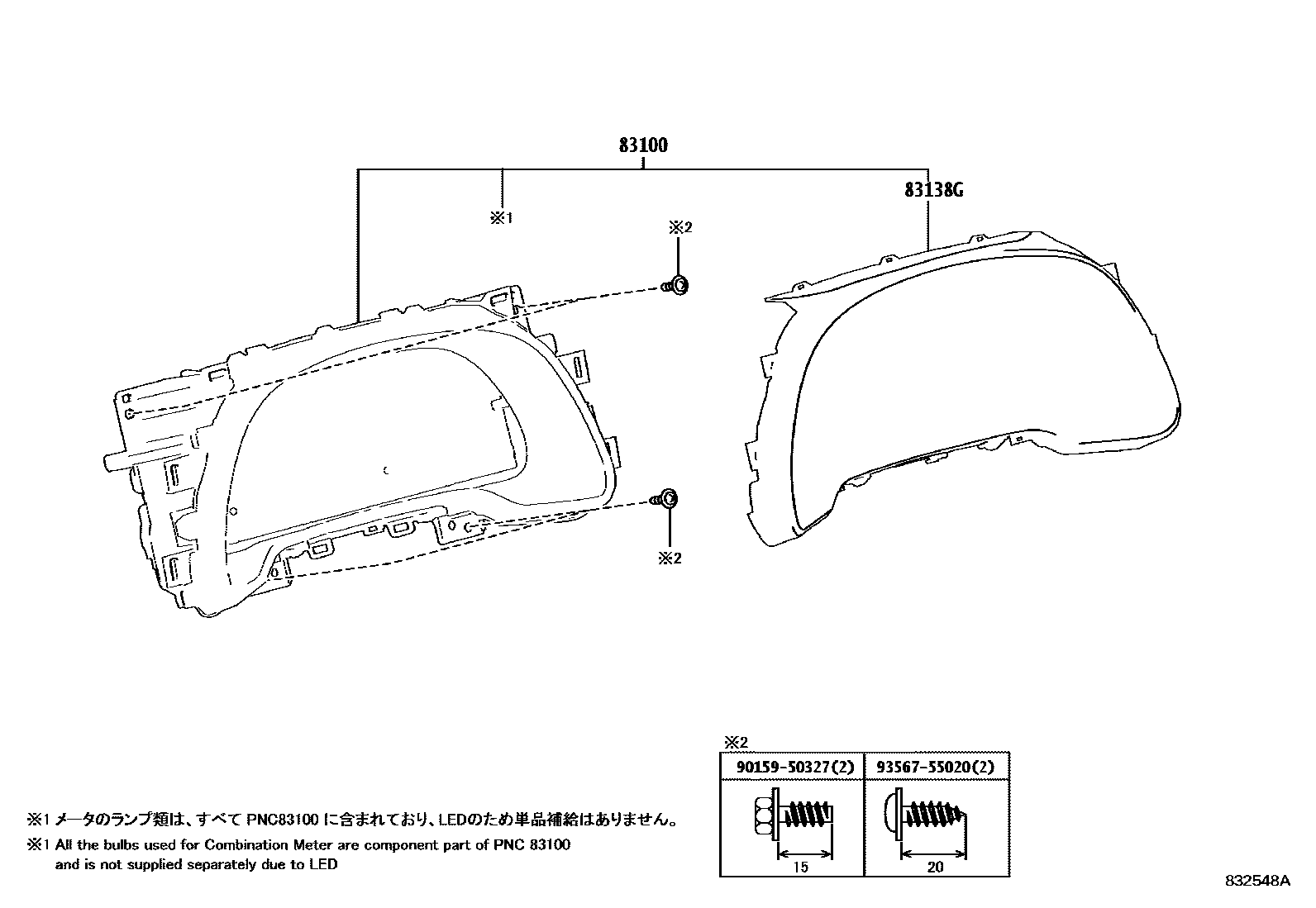

Parts diagram
83100METER ASSY, COMBINATION
main83800-48Y90i202211-202307
DENSO,*614; DENSO,INDIA SPEC,*614; DENSO,MONGOLIA SPEC,*614
main83800-48Y91i202307-202308
DENSO; DENSO,INDIA SPEC; DENSO,MONGOLIA SPEC
main83800-4DC00i202211-202307
DENSO,*614
main83800-4DC01i202307-202308
DENSO
main83800-4DC20i202211-202307
DENSO,*614
main83800-4DC21i202307-202308
DENSO
main83800-4DC40i202211-202307
DENSO,*614; DENSO,HONG KONG SPEC,*614; DENSO,MACAU SPEC,*614
main83800-4DC41i202307-202308
DENSO; DENSO,HONG KONG SPEC; DENSO,MACAU SPEC
main83800-4DE10i202410
DENSO,*614
main83800-4DE80i202410
DENSO,*614
main83800-4DF20i202410
DENSO,*614
main83800-4DF90i202410
DENSO
main83800-4DL40i202211-202303
DENSO; DENSO,INDIA SPEC; DENSO,MONGOLIA SPEC
main83800-4DL42i202303-202308
DENSO; DENSO,INDIA SPEC; DENSO,MONGOLIA SPEC
main83800-4DL50i202211-202303
DENSO
main83800-4DL52i202303-202308
DENSO
main83800-4DM50i202308-202403
DENSO,*614; DENSO,INDIA SPEC,*614; DENSO,MONGOLIA SPEC,*614
main83800-4DM51i202403-202410
DENSO; DENSO,INDIA SPEC; DENSO,MONGOLIA SPEC
main83800-4DM71i202308-202403
DENSO,*614
main83800-4DM72i202403-202410
DENSO
main83800-4DM80i202308-202403
DENSO,*614
main83800-4DM81i202403-202410
DENSO
main83800-4DN01i202308-202403
DENSO,*614; DENSO,HONG KONG SPEC,*614; DENSO,MACAU SPEC,*614
main83800-4DN02i202403-202410
DENSO; DENSO,HONG KONG SPEC; DENSO,MACAU SPEC
main83800-4DN91i202308-202403
DENSO; DENSO,INDIA SPEC; DENSO,MONGOLIA SPEC
main83800-4DP00i202308-202403
DENSO
main83800-48X20supersedes 83800-48X30i202211-202307
DENSO,*614; DENSO,MONGOLIA SPEC,*614
main83800-48X21supersedes 83800-48X31i202307-202308
DENSO; DENSO,MONGOLIA SPEC
main83800-4DC10i202211-202307
DENSO,HONG KONG SPEC,*614; DENSO,MACAU SPEC,*614
main83800-4DC11i202307-202308
DENSO,HONG KONG SPEC; DENSO,MACAU SPEC
main83800-4DC60supersedes 83800-48X20i202211-202303
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DC62supersedes 83800-48X21i202303-202308
DENSO,HEAD UP DISPLAY-WITH; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH
main83800-4DC70supersedes 83800-48X30i202211-202303
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DC72supersedes 83800-48X31i202303-202308
DENSO,HEAD UP DISPLAY-WITH
main83800-4DC80i202211-202303
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,INDIA SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DC82i202303-202308
DENSO,HEAD UP DISPLAY-WITH; DENSO,INDIA SPEC&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH
main83800-4DC90supersedes 83800-48Z00i202211-202303
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DC92supersedes 83800-48Z01i202303-202308
DENSO,HEAD UP DISPLAY-WITH
main83800-4DD10i202211-202303
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DD12i202303-202308
DENSO,HEAD UP DISPLAY-WITH; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH
main83800-4DD20supersedes 83800-4DC30i202211-202303
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DD22supersedes 83800-4DC31i202303-202308
DENSO,HEAD UP DISPLAY-WITH
main83800-4DF80i202410
DENSO,ARGENTINA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,AUSTRALIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,CHILE SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,SOUTH AFRICA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH &HEAT)&HEAD UP DISPLAY-WITH; DENSO,TAIWAN SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DJ60i202403-202410
DENSO,BRAZIL SPEC&HEAD UP DISPLAY-WITH
main83800-4DJ70i202403-202410
DENSO,BRAZIL SPEC
main83800-4DL20i202211-202303
DENSO,ARGENTINA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,AUSTRALIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,CHILE SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA,PERU SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,SOUTH AFRICA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH &HEAT)&HEAD UP DISPLAY-WITH; DENSO,TAIWAN SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DL22i202303-202308
DENSO,ARGENTINA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,AUSTRALIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,CHILE SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA,PERU SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,SOUTH AFRICA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH &HEAT)&HEAD UP DISPLAY-WITH; DENSO,TAIWAN SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DL30supersedes 83800-48X30i202211-202303
DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DL32supersedes 83800-48X31i202303-202308
DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DM20supersedes 83800-4DM30i202308-202403
DENSO,*614; DENSO,MONGOLIA SPEC,*614
main83800-4DM21supersedes 83800-4DM31i202403-202410
DENSO; DENSO,MONGOLIA SPEC
main83800-4DM41i202308-202403
DENSO,HONG KONG SPEC,*614; DENSO,MACAU SPEC,*614
main83800-4DM42i202403-202410
DENSO,HONG KONG SPEC; DENSO,MACAU SPEC
main83800-4DN11i202308-202403
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DN12i202403-202410
DENSO,HEAD UP DISPLAY-WITH; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH
main83800-4DN20supersedes 83800-4DM30i202308-202403
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DN21supersedes 83800-4DM31i202403-202410
DENSO,HEAD UP DISPLAY-WITH
main83800-4DN31i202308-202403
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,INDIA SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DN32i202403-202410
DENSO; DENSO,HEAD UP DISPLAY-WITH; DENSO,INDIA SPEC; DENSO,INDIA SPEC&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC; DENSO,MONGOLIA SPEC&HEAD UP DISPLAY-WITH
main83800-4DN40supersedes 83800-4DM60i202308-202403
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DN41supersedes 83800-4DM61i202403-202410
DENSO; DENSO,HEAD UP DISPLAY-WITH
main83800-4DN51i202308-202309
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DN52i202309-202403
DENSO,HEAD UP DISPLAY-WITH,*614; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH,*614; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH,*614
main83800-4DN53i202403-202410
DENSO,HEAD UP DISPLAY-WITH; DENSO,HONG KONG SPEC&HEAD UP DISPLAY-WITH; DENSO,MACAU SPEC&HEAD UP DISPLAY-WITH
main83800-4DN60supersedes 83800-4DM90i202308-202309
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DN61supersedes 83800-4DC30i202309-202403
DENSO,HEAD UP DISPLAY-WITH,*614
main83800-4DN62supersedes 83800-4DM91i202403-202410
DENSO,HEAD UP DISPLAY-WITH
main83800-4DN71i202308-202403
DENSO,ARGENTINA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,AUSTRALIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,CHILE SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA,PERU SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,SOUTH AFRICA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH &HEAT)&HEAD UP DISPLAY-WITH; DENSO,TAIWAN SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DN72i202403-202410
DENSO,ARGENTINA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,AUSTRALIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,CHILE SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,MONGOLIA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,PANAMA,PERU SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH; DENSO,SOUTH AFRICA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH &HEAT)&HEAD UP DISPLAY-WITH; DENSO,TAIWAN SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DN80supersedes 83800-4DM30i202308-202403
DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DN81supersedes 83800-4DM31i202403-202410
DENSO,F SPORT&STEERING WHEEL-F SPORT, WHITE, WITH(PADDLE SWITCH)&HEAD UP DISPLAY-WITH; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH & HEAT)&HEAD UP DISPLAY-WITH
main83800-4DN92i202403-202410
DENSO,F SPORT; DENSO,INDIA SPEC&F SPORT; DENSO,MONGOLIA SPEC&F SPORT
main83800-4DP01supersedes 83800-4DN41i202403-202410
DENSO,F SPORT
83138GGLASS, COMBINATION METER
main83852-48X10i202211
9015950327
main90159-50327
9356755020
main93567-55020

4 parts on this diagram · 3 diagrams in section

METER for Toyota LEXUS RX SERIES

This section contains 8 genuine Toyota parts for the METER system of the Toyota LEXUS RX SERIES. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
