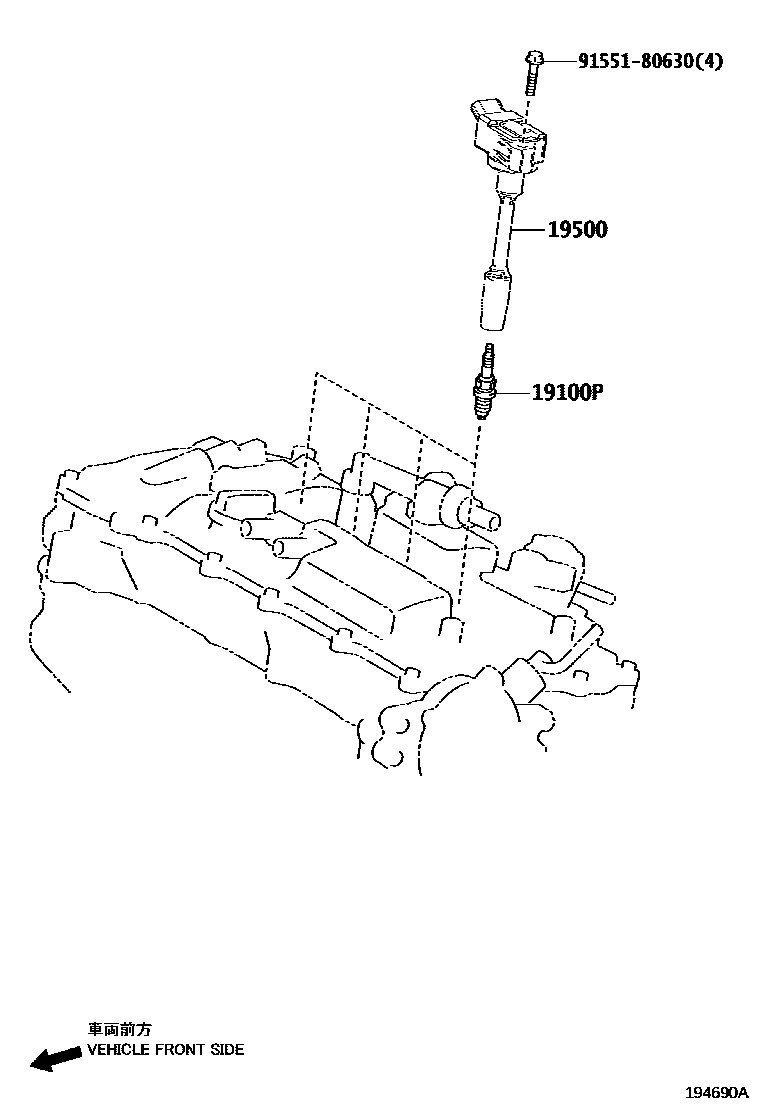

Toyota LEXUS RX SERIES — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01263i2GR#..GGL25,GYL25201509-201908

FK20HBR8

main90919-01276i8ARFTS..AGL2#201509-201908

DILFR7K9G

19500COIL ASSY, IGNITION

main90919-02269i8ARFTS..AGL2#201509-201908

main90919-02273i2GR#..GGL25,GYL25201509-201703

TYPE A:REFER ILLUST.

main90919-02280i2GR#..GGL25,GYL25201608-201908

TYPE B:REFER ILLUST.

sub90919-02273

9155180630

main91551-80630

3 parts on this diagram · 2 diagrams in section
