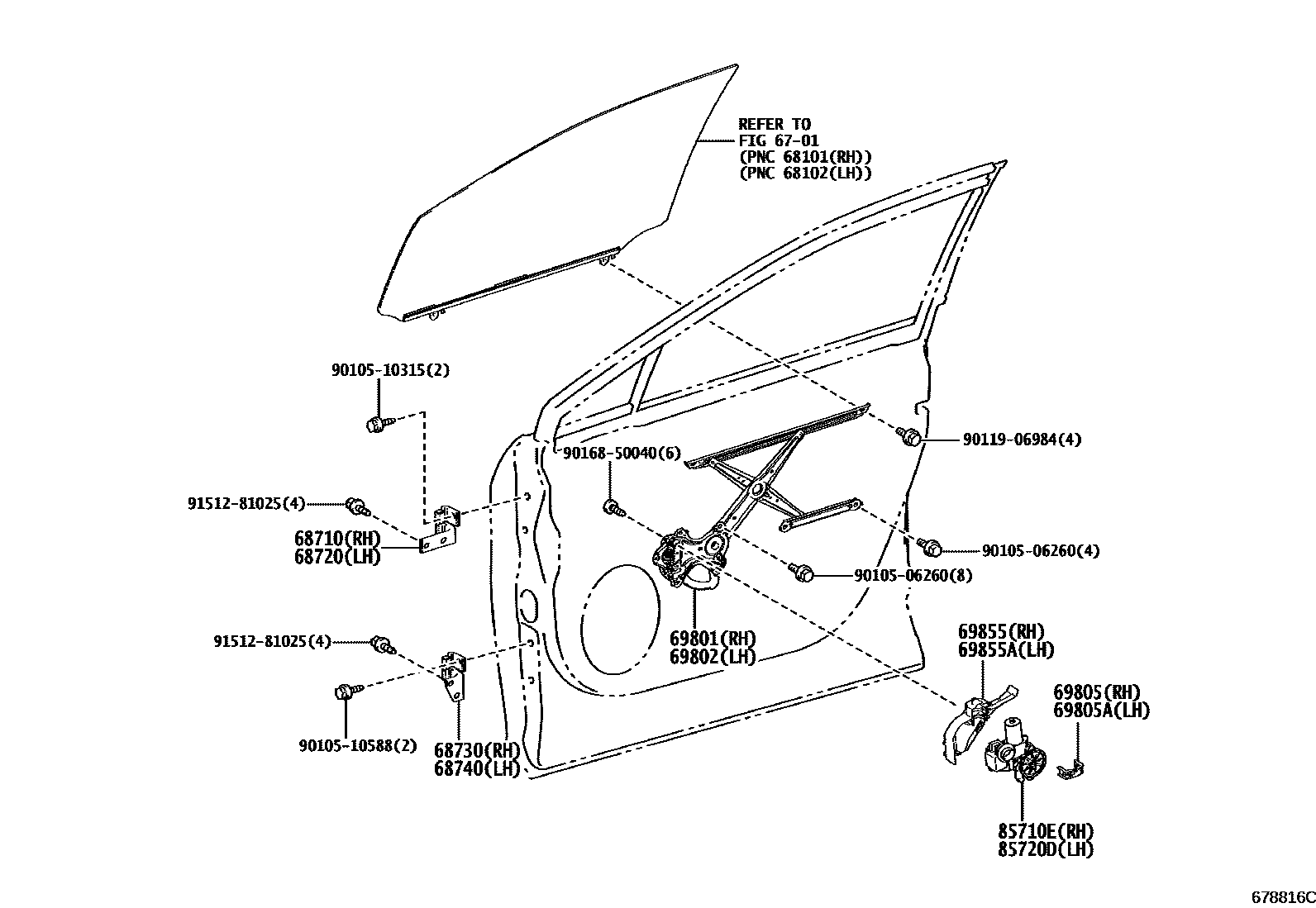

Toyota LEXUS RX SERIES — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-48010iAGL2#,GGL25,GYL25201509-201908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-48010iAGL2#,GGL25,GYL25201509-201908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-48010iAGL2#,GGL25,GYL25201509-201908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-48010iAGL2#,GGL25,GYL25201509-201908

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-78010iAGL2#,GGL25,GYL25201509-201908

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-78010iAGL2#,GGL25,GYL25201509-201908

69805RETAINER SUB-ASSY, FRONT DRIVEN GEAR, RH

main69805-48010iAGL2#,GGL25,GYL25202012

69805ARETAINER SUB-ASSY, FRONT DRIVEN GEAR, LH

main69805-48010iAGL2#,GGL25,GYL25202012

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-48010iAGL2#,GGL25,GYL25202012

69855ACOVER, DOOR WINDOW REGULATOR GEAR

main69855-48020iAGL2#,GGL25,GYL25202012

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-48121iAGL2#,GGL25,GYL25201509-201908

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48131iAGL2#,GGL25,GYL25201509-201908

9010506260

main90105-06260

9010510315

main90105-10315

9010510588

main90105-10588

9011906984

main90119-06984

9016850040

main90168-50040

9151281025

main91512-81025

19 parts on this diagram · 1 diagram in section
