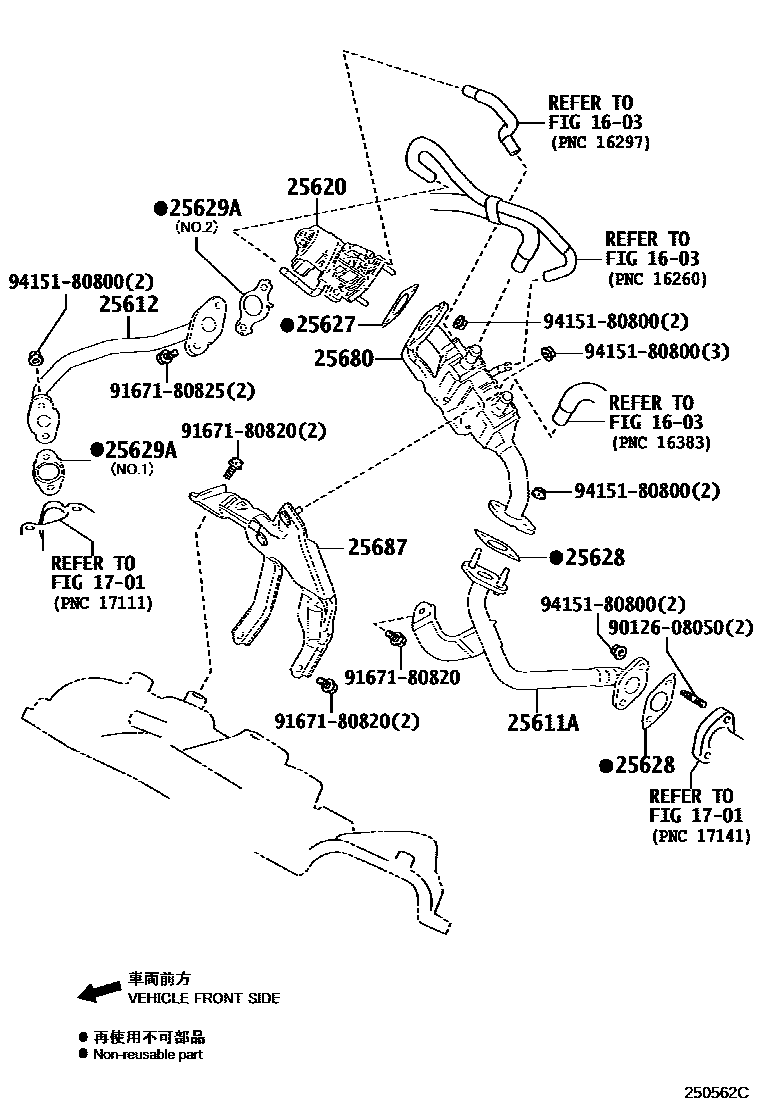

Toyota LEXUS RX SERIES — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25611APIPE, EGR, NO.1

main25611-31060i2GRFXS..GYL25201510-201908

25612PIPE, EGR, NO.2

main25612-31040i2GRFXS..GYL25201510-201908

25620VALVE ASSY, EGR

main25620-31080i2GRFXS..GYL25201510-201908

25627GASKET, EGR VALVE

main25627-31040i2GRFXS..GYL25201510-201908

25628GASKET, EGR INLET

main25628-31030i2GRFXS..GYL25201510-201908

25629AGASKET, EGR PIPE, NO.2

main25629-31040i2GRFXS..GYL25201510-201908

NO.1

main25629-36020i2GRFXS..GYL25201510-201908

NO.2

25680COOLER ASSY, EGR

main25680-31050i2GRFXS..GYL25201510-201908

25687BRACKET, EGR COOLER, NO.1

main25687-31020i2GRFXS..GYL25201510-201908

9012608050

main90126-08050

9167180820

main91671-80820

9167180825

main91671-80825

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
