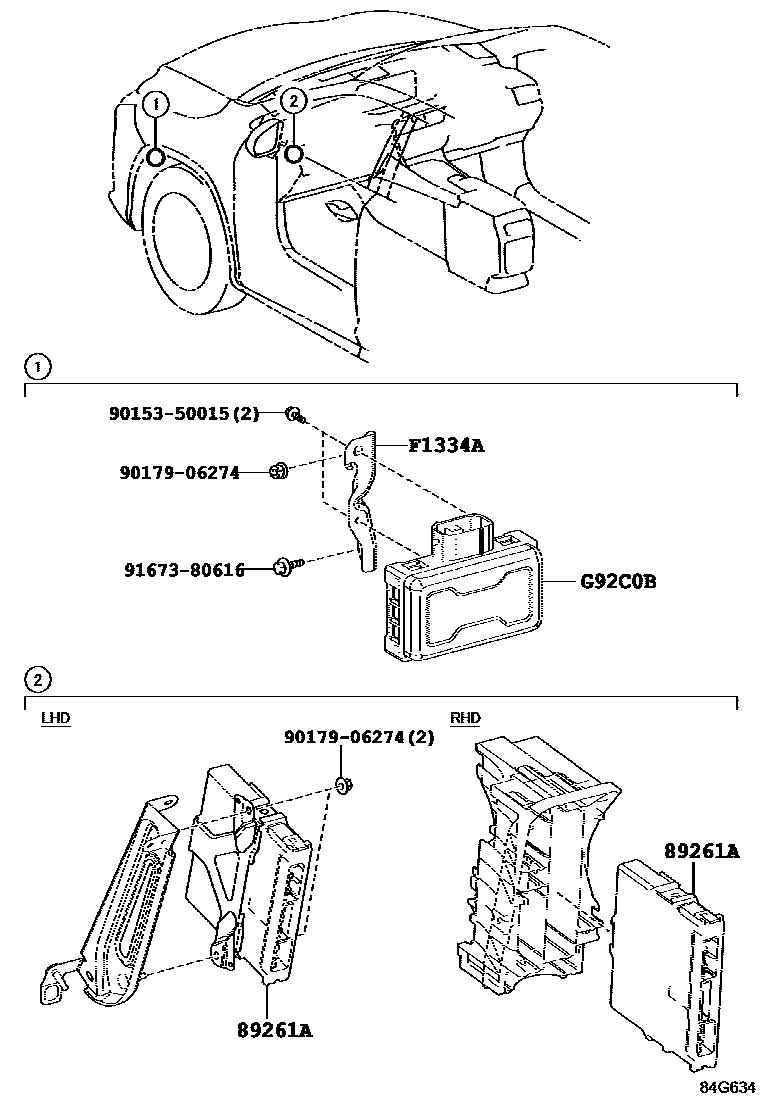

Toyota LEXUS RX SERIES — ECO-RUN SYSTEM

89261ACOMPUTER, ENGINE STOP AND START

main89260-48030iAGL2#..RHD201509-201510

sub89260-48031

main89260-48031iAGL2#..RHD201511-201612

sub89260-48032

main89260-48032iAGL2#..RHD201701-201908

main89260-48040iAGL2#..LHD201509-201510

sub89260-48041

main89260-48041iAGL2#..LHD201511-201612

sub89260-48042

main89260-48042iAGL2#..LHD201701-201908

main89260-48080iAGL2#201908

F1334ABRACKET, CONVERTER CONTROL, NO.1

mainF133448020iAGL2#201509-201908

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C030020iAGL2#201509-201908

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

6 parts on this diagram · 1 diagram in section
