Toyota LEXUS RX SERIES — BACK DOOR LOCK & HANDLE

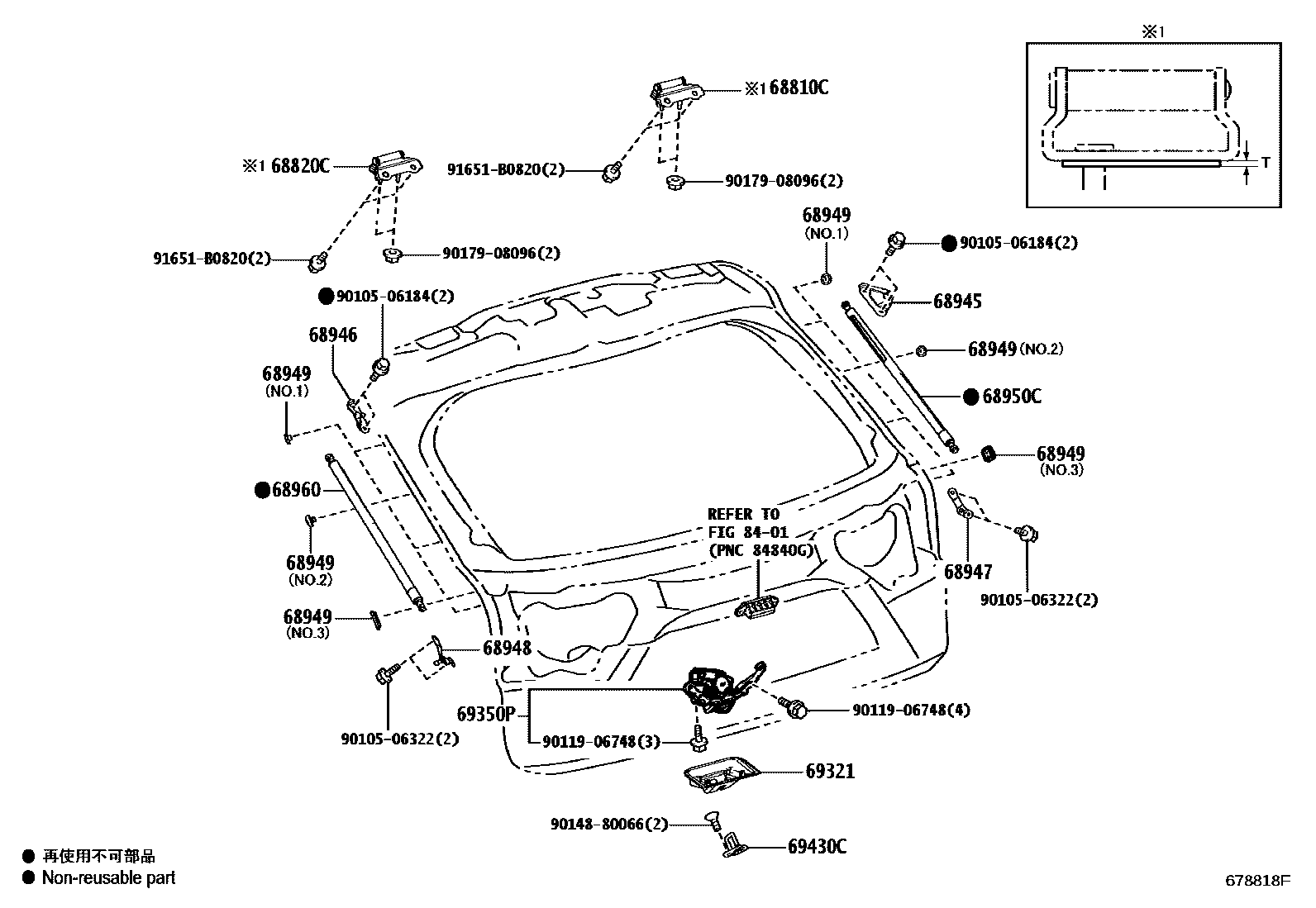

Parts diagram
68810CHINGE ASSY, BACK DOOR, RH
main68810-48170i201509-201512
PAD T=1.0
sub68810-48171
main68810-48171i201601-201908
PAD T=1.0
main68810-48180i201509-201512
PAD T=1.5
sub68810-48181
main68810-48181i201601-201908
PAD T=1.5
main68810-48190i201509-201512
PAD T=2.0
sub68810-48191
main68810-48191i201601-201908
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
main68810-48170i201509-201512
PAD T=1.0
sub68810-48171
main68810-48171i201601-201908
PAD T=1.0
main68810-48180i201509-201512
PAD T=1.5
sub68810-48181
main68810-48181i201601-201908
PAD T=1.5
main68810-48190i201509-201512
PAD T=2.0
sub68810-48191
main68810-48191i201601-201908
PAD T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-48090i201509-201908
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-48020i201509-201908
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
main68947-48020i201509-201908
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-48020i201509-201908
68949SEAL, BACK DOOR STAY BRACKET
main68949-48010i201509-201908
NO.1
main68949-48020i201509-201908
NO.2
main68949-48030i201509-201908
NO.3
68950CSTAY ASSY, BACK DOOR, RH
main68950-0WA00i201509-201711
sub68950-0WF90
main68950-0WF90i201712-201908
68960STAY ASSY, BACK DOOR, LH
main68960-0WA00i201509-201711
sub68960-0WF90
main68960-0WF90i201712-201908
69321COVER, BACK DOOR LOCK
main69321-0E070i201509-201908
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-48130i201509-201512
sub69350-48131
main69350-48131i201601-201908
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-48030i201509-201908
8401
9010506184
main90105-06184
9010506322
main90105-06322
9011906748
main90119-06748
9014880066
main90148-80066
9017908096
main90179-08096
91651B0820
main91651-B0820

19 parts on this diagram · 2 diagrams in section
