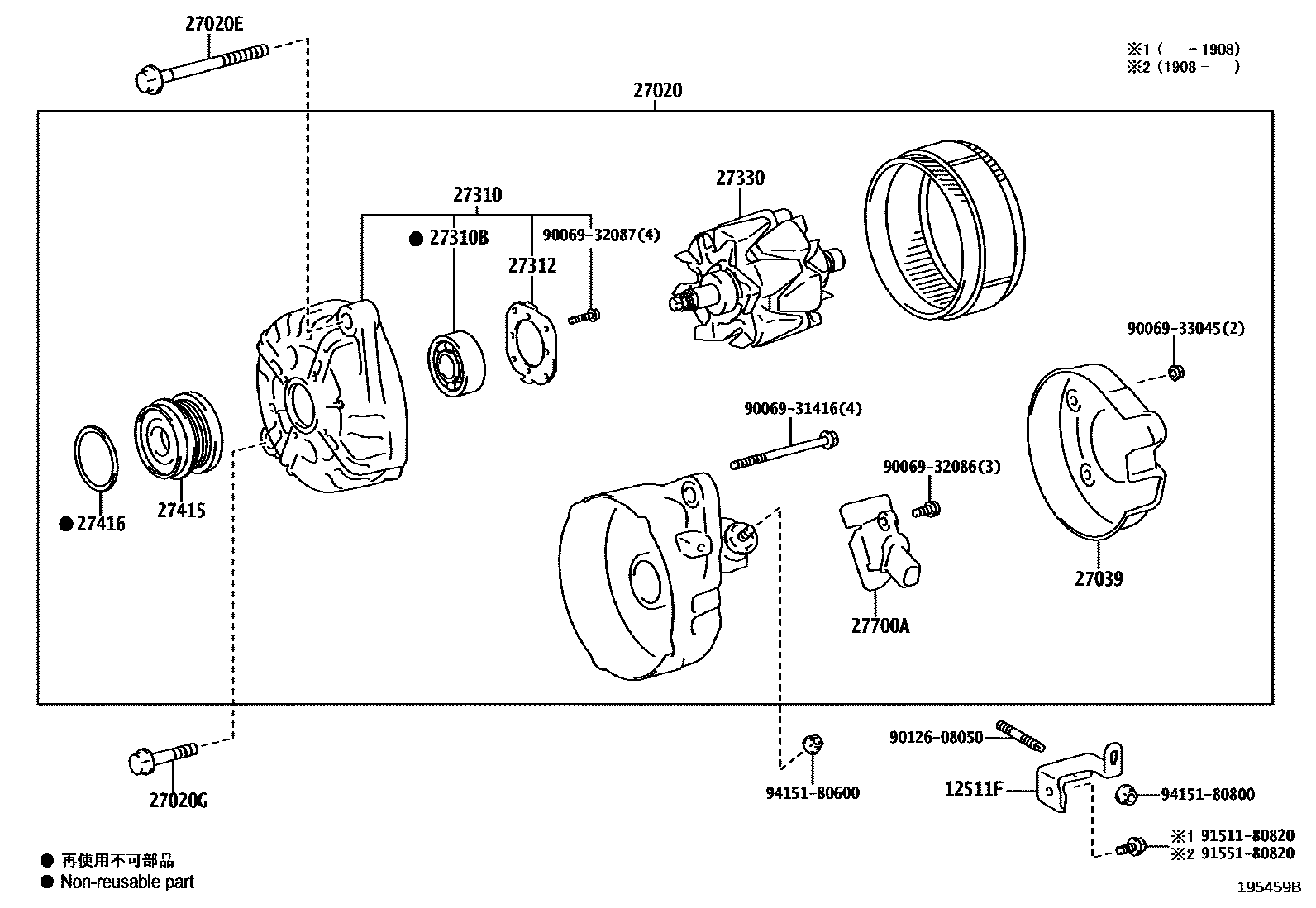

Toyota LEXUS RX SERIES — ALTERNATOR

0001 112V 150A 0002 112V 150A

12511FBRACKET, ALTERNATOR, NO.1

main12511-31050i2GRFKS..GGL25201509-201908

27020ALTERNATOR ASSY

main27060-0P370i2GRFKS..GGL25201509-201908

12V 150A

main27060-36100i8ARFTS..AGL2#201509-201811

12V 150A

sub27060-36101

main27060-36101i8ARFTS..AGL2#201812-201908

12V 150A

27020EBOLT(FOR ALTERNATOR)

main91552-81095i8ARFTS..AGL2#201509-201908

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81040i2GRFKS..GGL25201509-201908

27039COVER, ALTERNATOR REAR END

main27039-0P420i2GRFKS..GGL25201509-201908

main27039-31390i8ARFTS..AGL2#201509-201908

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P420i2GRFKS..GGL25201509-201908

main27310-36180i8ARFTS..AGL2#201509-201908

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90069-40012i2GRFKS..GGL25201509-201908

main90099-10223i8ARFTS..AGL2#201509-201908

27312PLATE, RETAINER

main27312-0P420i2GRFKS..GGL25201509-201908

main27312-72100i8ARFTS..AGL2#201509-201908

27330ROTOR ASSY, ALTERNATOR

main27330-0P420i2GRFKS..GGL25201509-201908

main27330-58460i8ARFTS..AGL2#201509-201908

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P010i2GRFKS..GGL25201509-201908

main27415-0W170i8ARFTS..AGL2#201509-201908

27416CAP, ALTERNATOR PULLEY

main27416-0W050i8ARFTS,2GRFKS..AGL2#,GGL25201509-201908

27700AREGULATOR ASSY, GENERATOR

main27700-0P150i2GRFKS..GGL25201509-201908

9006931416

main90069-31416

9006932086

main90069-32086

9006932087

main90069-32087

9006933045

main90069-33045

9012608050

main90126-08050

9151180820

main91511-80820

9155180820

main91551-80820

9415180600

main94151-80600

9415180800

main94151-80800

21 parts on this diagram · 2 diagrams in section
