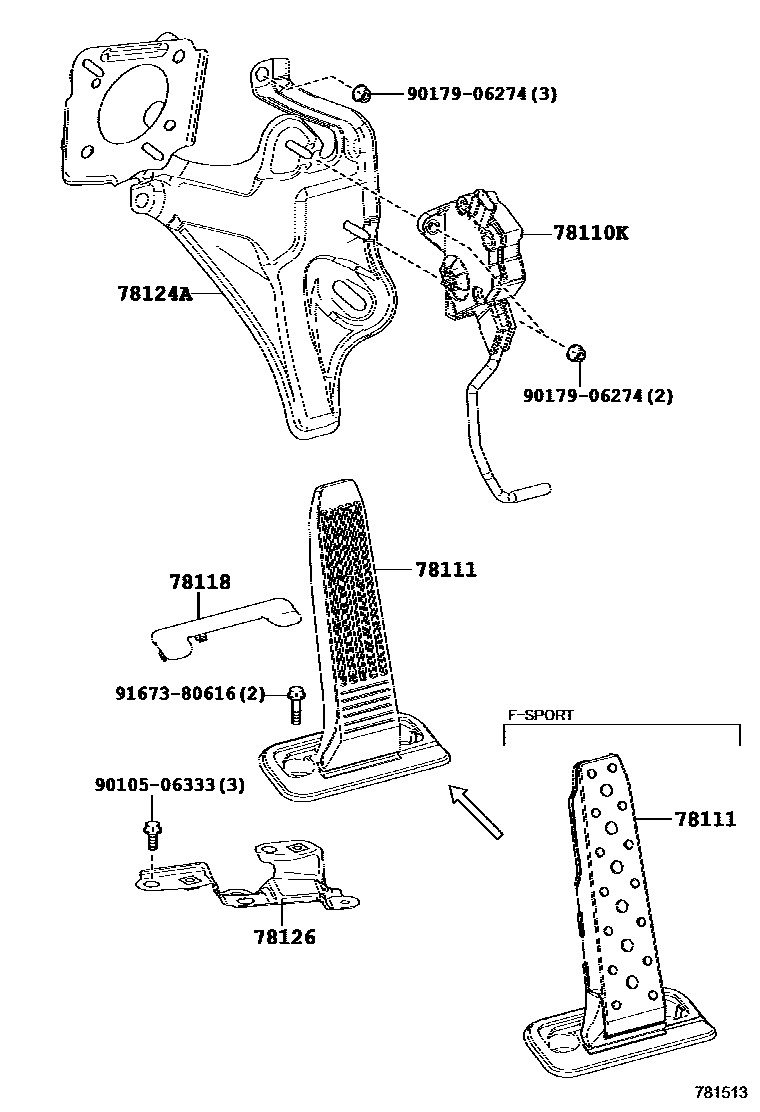

Toyota LEXUS RX SERIES — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-48110iAGL2#,GYL25..RHD201509-201601

sub78110-48111

main78110-48111iGYL25..RHD201602-201908

main78110-48120iAGL2#,GGL25,GYL25..LHD201509-201601

sub78110-48121

main78110-48121iAGL2#,GGL25,GYL25..LHD201602-201908

78111PEDAL, ACCELERATOR

main78101-48050iAGL2#,GGL25,GYL25201509-201908

78118PAD, ACCELERATOR PEDAL

main78117-48010iAGL2#,GGL25,GYL25201509-201908

78124ABRACKET, ACCELERATOR PEDAL ROD

main78130-48010iAGL2#,GYL25..RHD201509-201908

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-48010iAGL2#,GYL25..RHD201509-201908

9010506333

main90105-06333

9017906274

main90179-06274

9167380616

main91673-80616

8 parts on this diagram · 2 diagrams in section
