Toyota LEXUS RX SERIES(TMMC — METER

Parts diagram
83100METER ASSY, COMBINATION
main83800-0EP10i202411
DENSO,*614
main83800-0EJ80i202308-202406
DENSO,CANADA SPEC,*614
main83800-0EJ81i202406-202411
DENSO,CANADA SPEC
main83800-0EJ90i202308-202406
DENSO,MEXICO SPEC,*614
main83800-0EJ91i202406-202411
DENSO,MEXICO SPEC
main83800-0EK10supersedes 83800-0EM30i202308-202406
DENSO,CANADA SPEC,*614
main83800-0EK11supersedes 83800-0EM30i202406-202411
DENSO,CANADA SPEC
main83800-0EK20supersedes 83800-0EM30i202308-202406
DENSO,MEXICO SPEC,*614
main83800-0EK21supersedes 83800-0EM30i202406-202411
DENSO,MEXICO SPEC
main83800-0EK30supersedes 83800-0EM10i202308-202406
DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK31supersedes 83800-0EM10i202406-202411
DENSO,F SPORT DESIGN&HEAD UP DISPLAY-NORMAL; DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL
main83800-0EK40i202308-202406
DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK41i202406-202411
DENSO,CANADA SPEC&F SPORT DESIGN&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL
main83800-0EK50i202308-202406
DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK51i202406-202411
DENSO,MEXICO SPEC&F SPORT DESIGN&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL
main83800-0EK60supersedes 83800-0EM30i202308-202406
DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK61supersedes 83800-0EM30i202406-202411
DENSO,F SPORT DESIGN&HEAD UP DISPLAY-NORMAL; DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL
main83800-0EK70supersedes 83800-0EM30i202308-202406
DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK71supersedes 83800-0EM30i202406-202411
DENSO,CANADA SPEC&F SPORT DESIGN&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL
main83800-0EK80supersedes 83800-0EM30i202309-202406
DENSO,MEXICO SPEC&F SPORT DESIGN&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK81supersedes 83800-0EM30i202406-202411
DENSO,MEXICO SPEC&F SPORT DESIGN&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL
main83800-0EK90i202308-202406
DENSO,F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EK91i202406-202411
DENSO,F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UP DISPLAY-NORMAL
main83800-0EL00i202308-202406
DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL,*614
main83800-0EL01i202406-202411
DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL
main83800-0EL10i202308-202406
DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL,*614
main83800-0EL11i202406-202411
DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL; DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL
main83800-0EL30supersedes 83A00-0E292i202308-202406
DENSO,CANADA SPEC,*614
main83800-0EL31supersedes 83A00-0E292i202406-202411
DENSO,CANADA SPEC
main83800-0EL40supersedes 83A00-0E292i202308-202406
DENSO,MEXICO SPEC,*614
main83800-0EL41supersedes 83A00-0E292i202406-202411
DENSO,MEXICO SPEC
main83800-0EM20i202210-202308
DENSO,CANADA SPEC,*614
main83800-0EM40supersedes 83800-0EM30i202210-202308
DENSO,CANADA SPEC,*614
main83800-0EM50supersedes 83800-0EM10i202210-202303
DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM52supersedes 83800-0EM10i202303-202308
DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM60i202210-202303
DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM62i202303-202308
DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM70supersedes 83800-0EM30i202210-202303
DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM72supersedes 83800-0EM30i202303-202308
DENSO,LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEADUP DISPLAY-NORMAL,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM80supersedes 83800-0EM30i202210-202303
DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EM82supersedes 83800-0EM30i202303-202308
DENSO,CANADA SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0ET80i202411
DENSO,F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UP DISPLAY-NORMAL,*614
main83800-0ET90supersedes 83A00-0E292i202411
DENSO,F SPORT,*614
main83800-0EV70i202210-202308
DENSO,MEXICO SPEC,*614
main83800-0EV80supersedes 83800-0EM30i202210-202308
DENSO,MEXICO SPEC,*614
main83800-0EV90i202210-202303
DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EV92i202303-202308
DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EW00supersedes 83800-0EM30i202210-202303
DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83800-0EW02supersedes 83800-0EM30i202303-202308
DENSO,MEXICO SPEC&LUXURY PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&PREMIUM+ PACKAGE&STEERING WHEEL-WOOD,WITH(PADDLE SWITCH,STEERINGHEATER)&HEAD UP DISPLAY-NORMAL,*614
main83A00-0E260i202210-202303
DENSO,F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UP DISPLAY-NORMAL,*614
main83A00-0E262i202303-202308
DENSO,F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UP DISPLAY-NORMAL,*614
main83A00-0E270i202210-202303
DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL,*614
main83A00-0E272i202303-202308
DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,CANADA SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL,*614
main83A00-0E280i202210-202303
DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL,*614
main83A00-0E282i202303-202308
DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&HEAD UP DISPLAY-NORMAL,*614; DENSO,MEXICO SPEC&F SPORT&STEERING WHEEL-F SPORT,WHITE,WITH(PADDLE SWITCH)&HEAD UPDISPLAY-NORMAL,*614
main83A00-0E300supersedes 83A00-0E292i202210-202303
DENSO,CANADA SPEC,*614
main83A00-0E302supersedes 83A00-0E292i202303-202308
DENSO,CANADA SPEC,*614
main83A00-0E310supersedes 83A00-0E292i202210-202303
DENSO,MEXICO SPEC,*614
main83A00-0E312supersedes 83A00-0E292i202303-202308
DENSO,MEXICO SPEC,*614

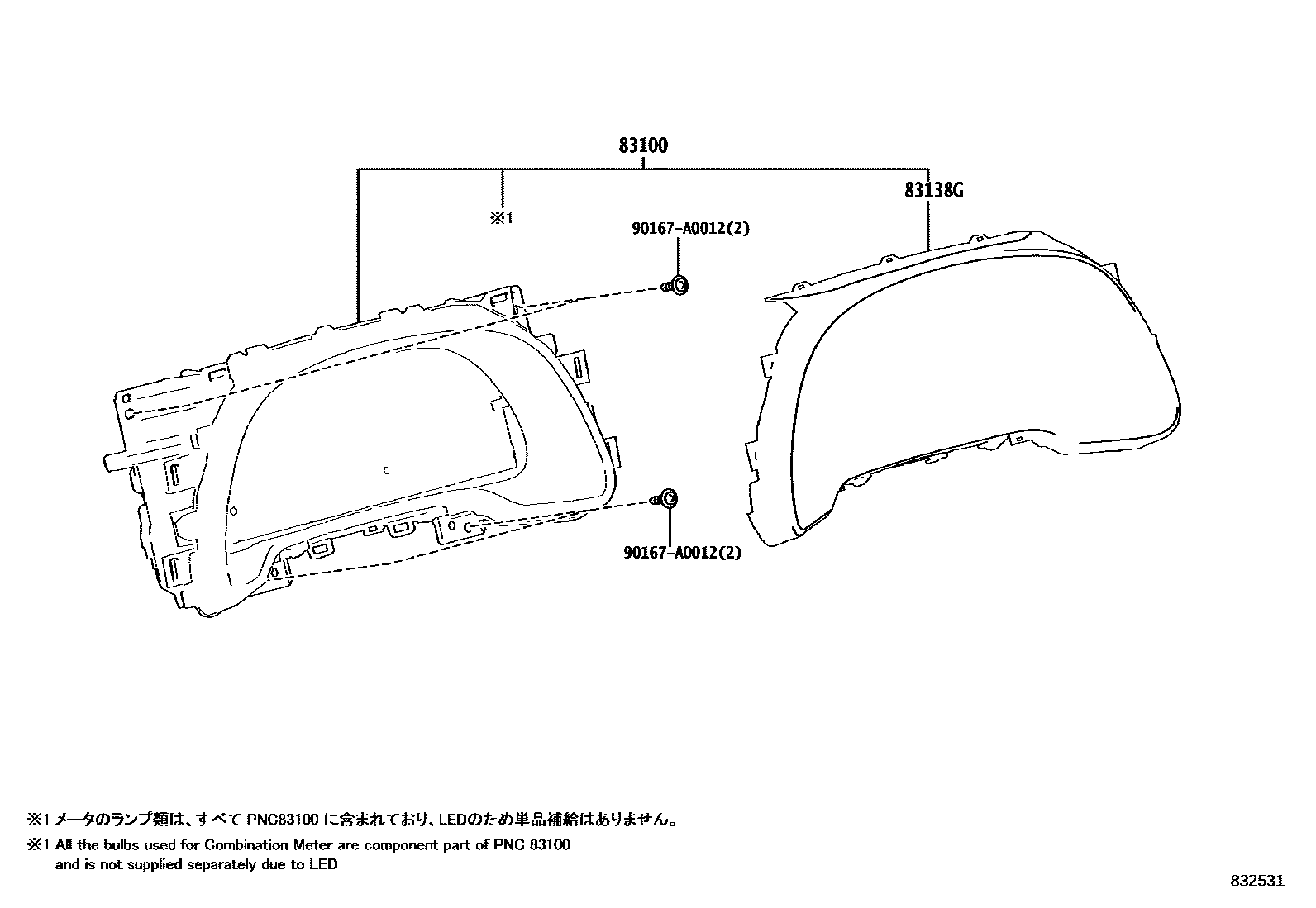

83138GGLASS, COMBINATION METER
main83852-0EM10i202210
90167A0012
main90167-A0012

3 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS RX SERIES(TMMC

This section contains 7 genuine Toyota parts for the METER system of the Toyota LEXUS RX SERIES(TMMC. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.

Toyota LEXUS RX SERIES(TMMC METER — Parts Diagram | ToyotaEPC
