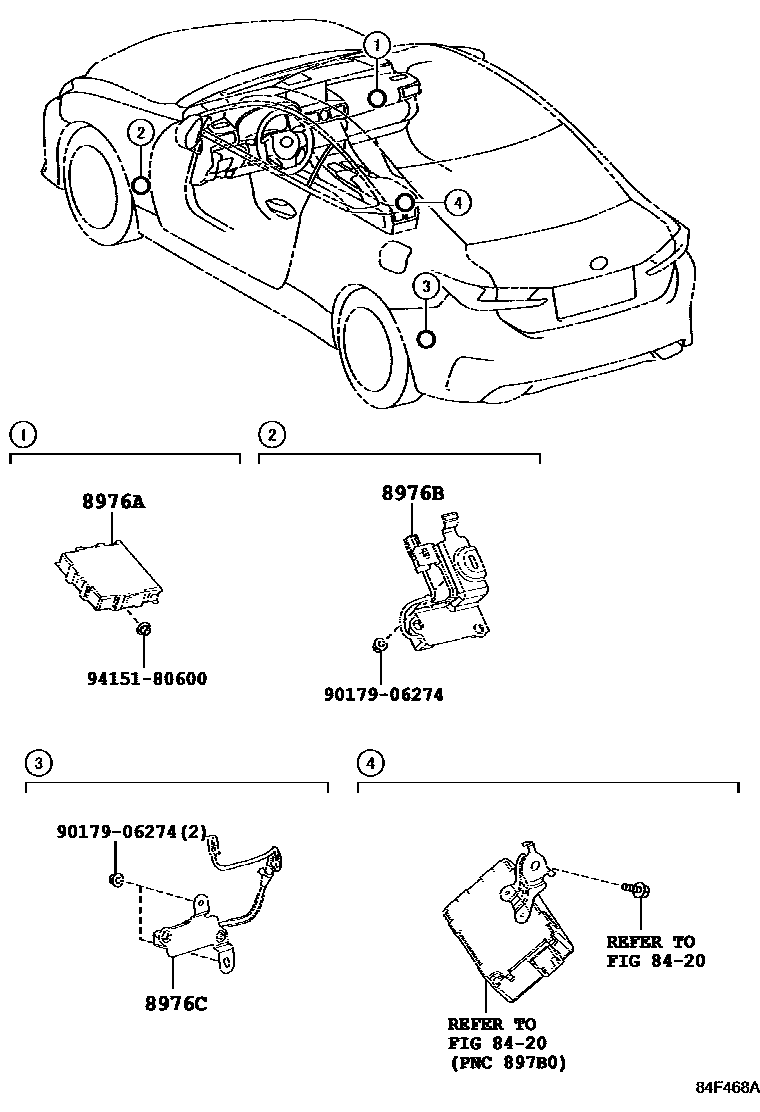

Toyota LEXUS RC3###/200T — TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

8420

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-24011iAVC10..RHD201510-201902

sub8976A-24012

main8976A-24012iAVC10..RHD201903-202008

sub8976A-24013

main8976A-53031iASC10,AVC10..LHD201510-201901

sub8976A-53032

main8976A-53032iASC10,AVC10..LHD201902-202008

sub8976A-53033

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-30011iGSC10201510-202008

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24011iGSC10201510-202008

9017906274

main90179-06274

9415180600

main94151-80600

6 parts on this diagram · 2 diagrams in section
