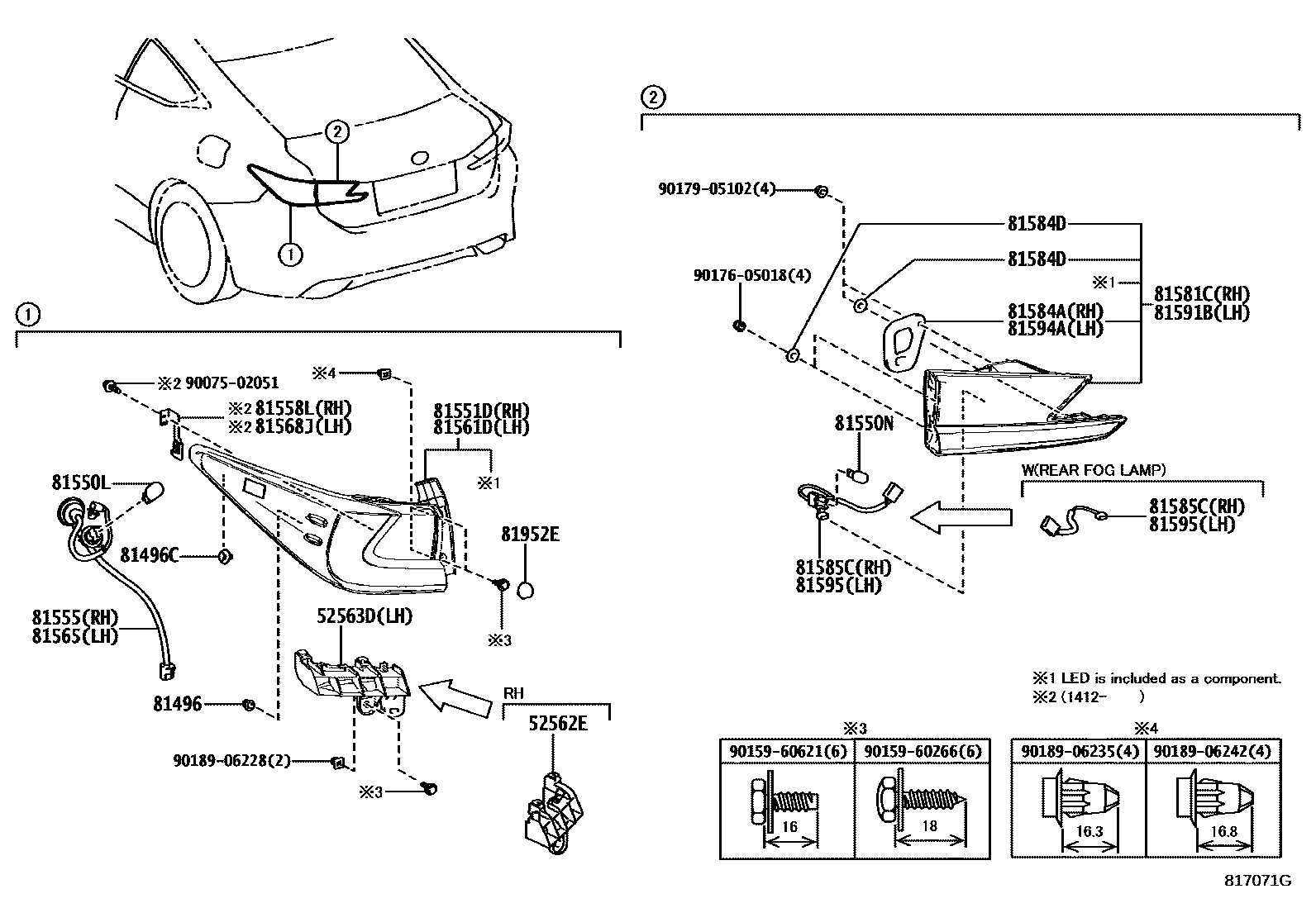

Toyota LEXUS RC3###/200T — REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-24010iGSC10201409-201810

main52562-24020iASC10,AVC10201810-202008

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-24010iGSC10201409-201810

main52563-24020iASC10,AVC10201810-202008

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGSC10201409-202008

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iGSC10201409-202008

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iGSC10201409-201810

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iGSC10201409-201810

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-24170iGSC10201409-201412

sub81551-24200

main81551-24200iGSC10201412-201810

main81551-24230iASC10,AVC10201810-202003

sub81551-24231

main81551-24231iASC10,AVC10202003-202008

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24160iGSC10201409-201810

main81555-24230iASC10,AVC10201810-202008

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24160iGSC10201412-201810

main81558-24220iASC10,AVC10201810-202008

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-24170iGSC10201409-201412

sub81561-24200

main81561-24200iGSC10201412-201810

main81561-24230iASC10,AVC10201810-202003

sub81561-24231

main81561-24231iASC10,AVC10202003-202008

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-24160iASC10..RHD201409-201810

main81565-24230iASC10,AVC10201810-202008

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-24160iGSC10201412-201810

main81568-24220iASC10,AVC10201810-202008

81581CLENS AND BODY, REAR LAMP, RH

main81581-24040iGSC10201409-201412

sub81581-24070

main81581-24070iGSC10201412-201810

main81581-24080iASC10..RHD201510-201810

81584AGASKET, REAR LAMP RH

main81584-24060iGSC10201409-201810

main81584-24100iASC10,AVC10201810-202008

81584DGASKET, REAR LAMP

main81584-24050iGSC10201409-202008

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-24040iGSC10201409-201810

main81585-24050iASC10..RHD201510-201810

main81585-24100iASC10,AVC10201810-202008

81591BLENS AND BODY, REAR LAMP, LH

main81591-24050iGSC10201409-201412

sub81591-24080

main81591-24070iASC10..RHD201510-201810

main81591-24080iASC10,AVC10..LHD201412-201810

81594AGASKET, REAR LAMP LH

main81594-24060iAVC10;ASC10..LHD201409-201810

main81594-24100iASC10,AVC10201810-202008

81595SOCKET & WIRE, REAR LAMP, LH

main81585-24040iASC10..RHD201510-201810

main81585-24050iASC10,AVC10..LHD201409-201810

main81585-24100iASC10,AVC10201810-202008

81952ECOVER, REAR LAMP

main81952-22010iGSC10201409-201810

9007502051

main90075-02051

9015960266

main90159-60266

9015960621

main90159-60621

9017605018

main90176-05018

9017905102

main90179-05102

9018906228

main90189-06228

9018906235

main90189-06235

9018906242

main90189-06242

28 parts on this diagram · 2 diagrams in section
